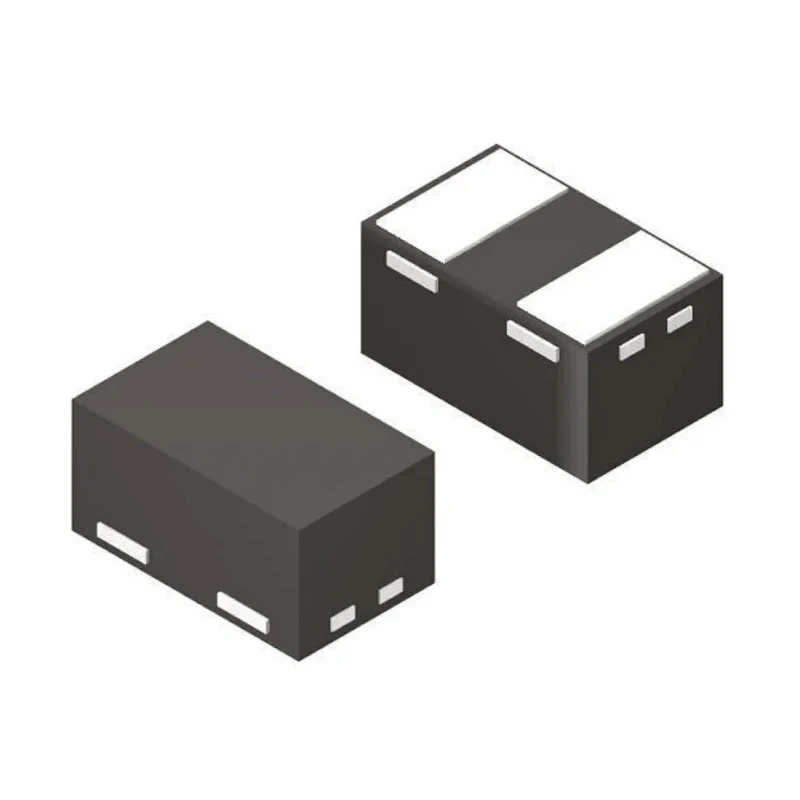

STMicroelectronics 1-Element Bi-Directional TVS Diode, Surface Mount SOD-882, 150 W Peak Pulse Power, 5 V ESDALCL5-1BM2

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 1-Element Bi-Directional TVS Diode, Surface Mount SOD-882, 150 W Peak Pulse Power, 5 V ESDALCL5-1BM2

Name: STMicroelectronics 1-Element Bi-Directional TVS Diode, Surface Mount SOD-882, 150 W Peak Pulse Power, 5 V ESDALCL5-1BM2
Brand: STMicroelectronics
SKU: 106280
Price: 0.13 USD
Availability: InStock



Category TVS Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	0.45mm
Length	1.05mm
Model	ESDALCL5-1BM2
Width	0.65mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOD-882
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	5V
Maximum Reverse Stand-off Voltage Vwm	3V
Peak Pulse Power Dissipation Pppm	150W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	9A
Maximum Reverse Leakage Current	10nA

Key Features

Features a single diode element configured for bi-directional voltage transient suppression.
Suitable for surface mount applications with a small SOD-882 package measuring 1.05 mm length and 0.65 mm width.
Minimum breakdown voltage of 5 V ensuring reliable suppression at low voltages.
Handles peak pulse power dissipation up to 150 W and a peak pulse current of 9 A.
Operates within a temperature range from -55° C to 150° C for rugged performance.
Offers low maximum reverse leakage current of 10 nA to minimize power loss.
Designed for ESD protection in electronic circuits sensitive to voltage transients.
Package height of only 0.45 mm supports low-profile circuit board designs.

Product Description

STMicroelectronics ESDALCL5-1BM2 1-Element Bi-Directional TVS Diode delivers transient voltage suppression ideal for protecting sensitive electronic devices from electrostatic discharges and voltage spikes.

This diode is housed in a compact SOD-882 surface-mount package with a minimal footprint (1.05 mm length × 0.65 mm width × 0.45 mm height) enabling its use in space-constrained applications.

Featuring a minimum breakdown voltage of 5 V and a low maximum reverse stand-off voltage of 3 V, this device provides precise clamping of ESD events to safe levels. The diode can withstand peak pulse power dissipation of 150 W and peak pulse currents up to 9 A, making it robust for transient surges.

It operates reliably in wide temperature conditions ranging from -55° C to 150° C, suitable for demanding industrial and consumer electronics applications. The maximum reverse leakage current is limited to 10 nA, thereby conserving energy and ensuring efficient circuit operation.

This TVS diode is a single element, bi-directional device specifically designed for ESD protection, easing design complexity in bidirectional voltage transient environments. Features a single diode element configured for bi-directional voltage transient suppression.

Compact SOD-882 surface mount package dimensions 1.05 mm × 0.65 mm × 0.45 mm. Minimum Breakdown Voltage (Vbr) of 5 V and Maximum Reverse Stand-off Voltage (Vwm) of 3 V. Peak Pulse Power Dissipation of 150 W and Maximum Peak Pulse Current (Ippm) of 9 A.

Operating temperature range from -55° C to 150° C.

This diode is extensively used in protecting electronic assemblies in Industrial, Consumer Electronics, Telecommunications, and Automotive circuits from damaging voltage transients and electrostatic discharges.

It offers trustworthy protection for sensitive semiconductors and integrated circuits ensuring device integrity and system reliability. Choose STMicroelectronics TVS diodes for effective and compact transient suppression delivering performance and durability in critical applications.

Explore the Electronics & Electricals / Semiconductor / TVS Diode category at EnvMart for a broad range of transient voltage suppressors.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business
