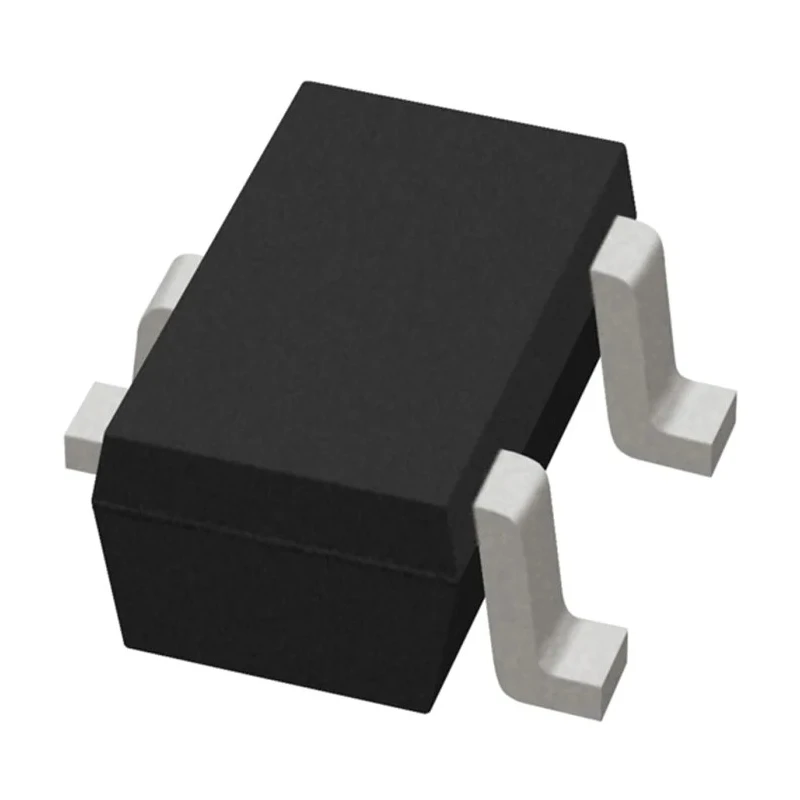

STMicroelectronics 1-Element Bi-Directional TVS Diode 250W, 3-Pin SOT-323 ESDLIN03-1BWY
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1mm |
| Length | 1.35mm |
| Model | ESDLIN03-1BWY |
| Width | 2.2mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 44V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 28.5V |
| Maximum Reverse Stand-off Voltage Vwm | 26.5V |
| Peak Pulse Power Dissipation Pppm | 250W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 3.7A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Designed for bi-directional transient voltage suppression.
- Features a single diode configuration suitable for protection circuits.
- Offers a minimum breakdown voltage of 28.5V and maximum reverse stand-off voltage of 26.5V.
- Clamping voltage rated at 44V to protect sensitive components.
- Operates reliably between -55°C and 175°C ambient temperatures.
- Complies with automotive standard AEC-Q101 for robust automotive applications.
- Supports ESD protection with a maximum peak pulse current of 3.7A and low leakage current of 50nA.
Product Description
STMicroelectronics ESDLIN03-1BWY is a 1-Element Bi-Directional Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic circuits from voltage transients. Featuring a 250W peak pulse power dissipation, it is optimized for surface mount applications using a compact 3-Pin SOT-323 package. This diode configuration allows protection against both positive and negative voltage spikes, making it ideal for bi-directional surge suppression.
The device supports a minimum breakdown voltage of 28.5V and a maximum reverse stand-off voltage of 26.5V, with a clamping voltage of 44V, ensuring effective transient voltage absorption. Operating temperature ranges from -55°C up to 175°C, suitable for demanding industrial and automotive environments. It complies with the AEC-Q101 automotive standard, guaranteeing reliability in automotive electronics and industrial applications.
With a low maximum reverse leakage current of 50nA and a maximum peak pulse current of 3.7A, the diode ensures efficient protection with minimal power loss. Its compact dimensions (length 1.35mm, width 2.2mm, height 1mm) make it suitable for densely packed circuit boards and high-volume production.
STMicroelectronics' Transil™ TVS Diode is widely used in industrial control systems, automotive electronics, telecommunications, and consumer electronics for ESD protection and voltage spike mitigation. This product is supplied on reels ready for automated pick-and-place processes, enhancing manufacturing efficiency.
Designed for bi-directional transient voltage suppression. Features a single diode configuration suitable for protection circuits. Offers a minimum breakdown voltage of 28.5V and maximum reverse stand-off voltage of 26.5V.
Clamping voltage rated at 44V to protect sensitive components. Operates reliably between -55°C and 175°C ambient temperatures. Compact dimensions: length 1.35mm, width 2.2mm, and height 1mm. Complies with automotive standard AEC-Q101 for robust automotive applications.
Supports ESD protection with a maximum peak pulse current of 3.7A and low leakage current of 50nA. Explore more semiconductor protection devices and components on EnvMart to find compatible devices and solutions fulfilling your industrial and automotive electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ESDLIN03-1BWY has a peak pulse power dissipation of 250W.
The minimum breakdown voltage for this model is 28.5V.
The maximum reverse stand-off voltage is 26.5V.
The clamping voltage is rated at 44V.
This model operates reliably between -55°C and 175°C.
The maximum peak pulse current supported is 3.7A.
The dimensions are 1.35mm in length, 2.2mm in width, and 1mm in height.
It complies with the AEC-Q101 automotive standard.
The maximum reverse leakage current is 50nA.
This diode is designed for surface mounting.
It features a single diode configuration suitable for protection circuits.
It is widely used in industrial control systems, automotive electronics, telecommunications, and consumer electronics for ESD protection and voltage spike mitigation.
