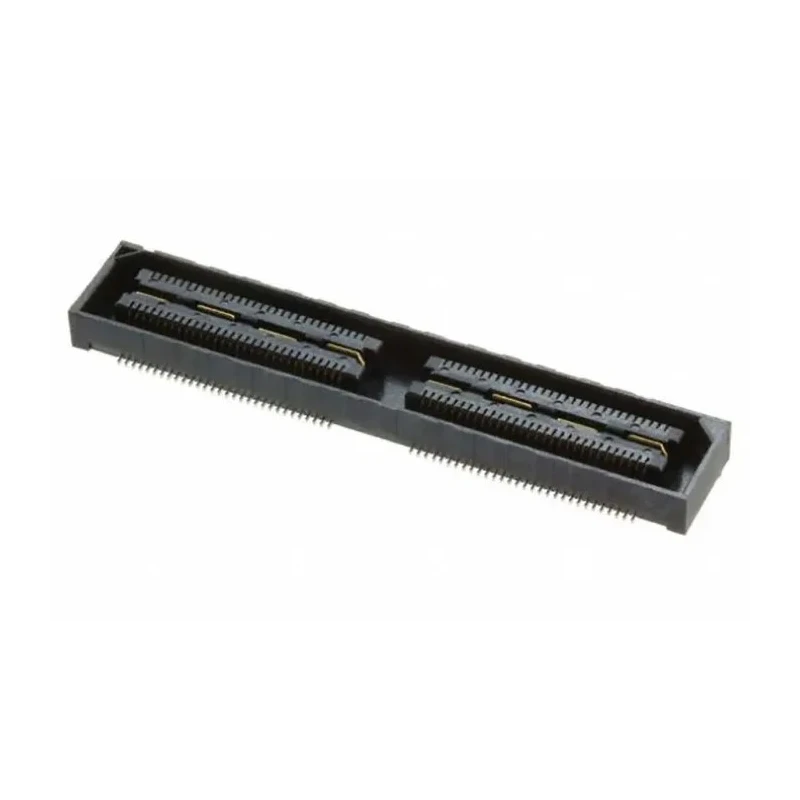

Samtec QSH-RA Series Right Angle Through Hole PCB Socket 120-Contact 2 Row 0.55 mm Pitch 220V QSH-060-01-F-D-DP-A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 220V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 21.8A |
| Model | QSH-060-01-F-D-DP-A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | QSH-RA |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Right Angle Ground Plane |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.55mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 120 |
| Connector System | Board-to-Board |
Key Features
- Constructed with liquid crystal polymer housing for high durability and thermal stability.
- Features phosphor bronze contacts plated with gold for reliable conductivity and corrosion resistance.
- Designed to operate between -55°C and 125°C for wide thermal range applications.
- Through hole mount type ensuring robust mechanical and electrical connections.
- Suitable for high current capacity of 21.8 A supporting demanding electrical loads.
- Right angle orientation allows for space-saving PCB layouts in compact electronic assemblies.
- Complies with RoHS standards ensuring environmentally safe manufacture and usage.
Product Description
Samtec QSH-060-01-F-D-DP-A is a high-performance right angle through hole PCB Socket from the QSH-RA Series by Samtec. This board-to-board connector features 120 contacts arranged in 2 rows with a fine pitch of 0.55 mm, supporting precise and compact electronic designs. Operating at 220 volts and with a maximum current carrying capacity of 21.8 amperes, it is well-suited for high-speed and high-density circuit applications.
The socket is made from liquid crystal polymer which provides excellent dimensional stability and high temperature resistance, making it reliable for industrial, electronic, and telecommunications applications where temperature ranges from -55°C to 125°C are common. The phosphor bronze contacts with gold plating ensure low contact resistance and enhanced durability against wear and corrosion.
Designed for through hole mounting with right angle orientation, the socket facilitates easy assembly and robust mechanical retention on printed circuit boards. Its grounding plane sub-type enhances signal integrity and EMI shielding critical in sensitive electronic environments.
Samtec's QSH-RA series sockets are compliant with RoHS regulations, affirming their adherence to environmental and safety standards. This component is ideal for industrial electronics, telecommunications, computing, and laboratory equipment requiring reliable interconnect solutions.
Liquid crystal polymer housing enhances durability and thermal resistance. Gold-plated phosphor bronze contacts provide superior electrical performance. Wide operating temperature range from -55°C to 125°C supports diverse conditions.
Right angle and through hole mount type support compact and secure PCB designs. Supports current up to 21.8 A enabling high power electronic applications. Complies with RoHS for environmentally responsible use. Suitable for industrial, laboratory, telecommunications, and manufacturing use cases.
Explore more high-quality electronic connectors and sockets on EnvMart to meet diverse industrial and technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current capacity of this PCB socket is 21.8 amperes, making it suitable for high power electronic applications.
This model operates at a voltage of 220 volts, suitable for various electronic applications.
It operates within a temperature range of -55°C to 125°C, accommodating diverse environmental conditions.
The housing is made from liquid crystal polymer, while the contacts are phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.
This model features 120 contacts arranged in 2 rows, with a pitch of 0.55 mm, allowing for compact electronic designs.
It uses a through hole mounting type, ensuring robust mechanical and electrical connections on printed circuit boards.
The socket has a right angle orientation, which helps in space-saving PCB layouts in compact electronic assemblies.
Yes, this socket complies with RoHS standards, ensuring environmentally safe manufacture and usage.
The termination type for this connector is solder, which is commonly used for secure connections on PCBs.
This socket is suitable for industrial electronics, telecommunications, computing, and laboratory equipment requiring reliable interconnect solutions.
The sub-type of this socket is a right angle ground plane, which enhances signal integrity and EMI shielding.
The country of origin for this product is India.
