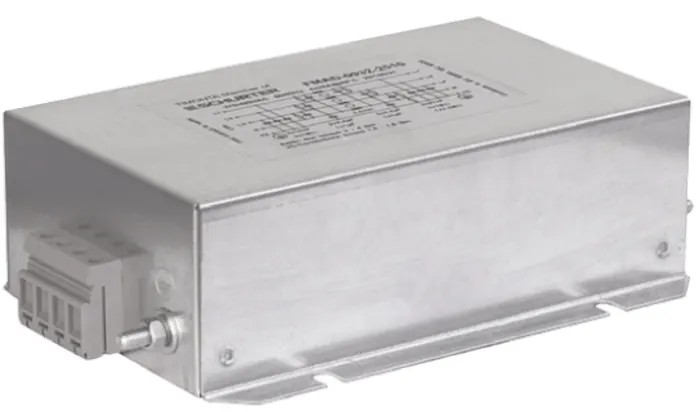

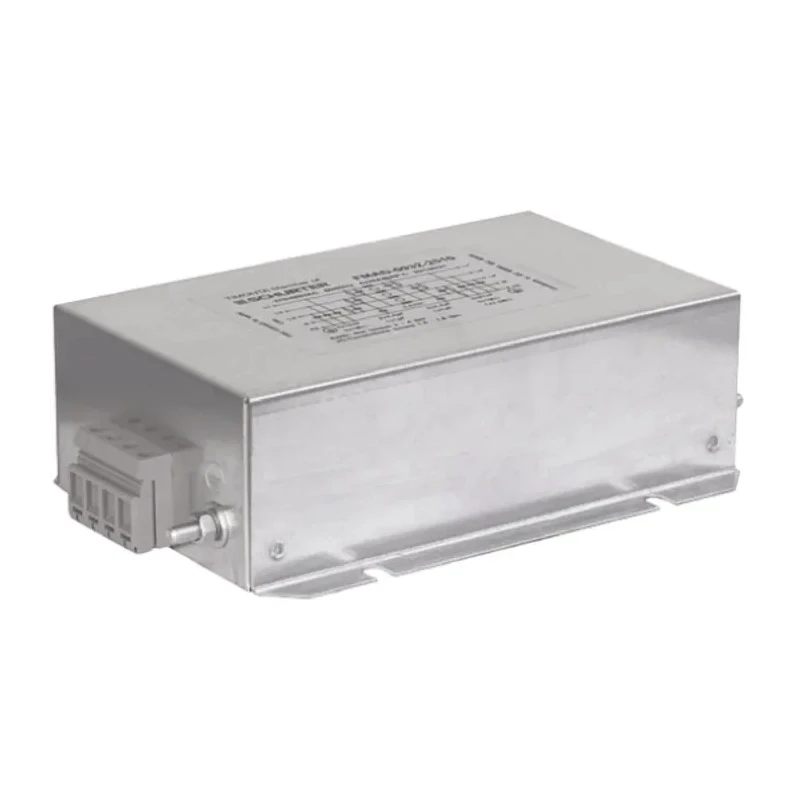

Schurter FMAD Series 50A 480V AC 50Hz 60Hz Screw Mount RFI Filter 3 Phase FMAD-0934-5010

Free Delivery in India | Lowest Global Shipping Charges

Schurter FMAD Series 50A 480V AC 50Hz 60Hz Screw Mount RFI Filter 3 Phase FMAD-0934-5010

Name: Schurter FMAD Series 50A 480V AC 50Hz 60Hz Screw Mount RFI Filter 3 Phase FMAD-0934-5010
Brand: Schurter
SKU: 105857



Category Power Line Filters Brand Schurter Condition New

Specifications

Country of Origin	India
Brand	Schurter
Height	66mm
Length	250mm
Model	FMAD-0934-5010
Depth	151mm
Mount Type	Screw
Operating Frequency	50, 60Hz
Series	FMAD
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	4mΩ
Capacitance	4.4μF
Minimum Operating Temperature	-25°C
Maximum Current	50A
Number of Phases	3
Leakage Current	5mA
Maximum Voltage	480V ac
Inductance	800μH
Termination Style	Screw
Power Loss	21W

Key Features

Single stage metal cased chassis mount design with screw termination for secure installation.
Supports maximum current of 50A and maximum voltage of 480V AC with a frequency range of 50 to 60Hz.
Features a capacitance of 4.4μF and inductance of 800μH to provide effective EMI filtering.
Operates reliably between temperatures of -25°C to 100°C ensuring durability under varied industrial conditions.
Low resistance of 4mΩ and power loss of 21W for efficient electrical performance.
Leakage current limited to 5mA ensuring safety and compliance with equipment standards.

Product Description

Schurter FMAD-0934-5010 is a single stage, metal cased chassis mount RFI filter designed for three-phase electrical systems requiring effective noise attenuation. It operates at voltages up to 480V AC and frequencies of 50Hz and 60Hz, making it suitable for a wide range of industrial and commercial electrical applications. The filter features robust screw mount and termination styles that ensure secure and reliable connections in control cabinets and switchgear assemblies.

This FMAD Series 50A filter incorporates a capacitance of 4.4μF and an inductance of 800μH, optimizing EMI suppression while maintaining low resistance of 4mΩ and limiting power loss to 21 watts. Its design supports operation within a temperature range of -25°C to 100°C, ensuring dependable performance in both harsh and controlled environments. The leakage current is controlled at 5mA, enhancing safety and compliance with IEC/EN60950 standards.

Measuring 250mm in length, 151mm in depth, and 66mm in height, the filter provides a compact footprint for installations in industrial automation, machinery, power supplies, and HVAC equipment. This model is ideal for use in manufacturing plants, electrical panels, and other settings that require high-quality EMI filtration to protect sensitive electronics and reduce electromagnetic interference.

Applications include industrial electrical noise suppression, power line filtering, and improving the electromagnetic compatibility of equipment in industrial, laboratory, and commercial environments. The FMAD series is qualified for use per IEC/EN60950, ensuring it meets stringent safety and performance requirements.

Single stage metal chassis filter with screw termination for three-phase systems. Supports 50A current and 480V AC voltage rating for versatility in power line filtering. Compact dimensions enable seamless integration in industrial equipment.

Designed to limit leakage current and power loss while providing effective attenuation. Operates reliably across a broad temperature range suitable for diverse applications. Explore the Schurter product range on EnvMart for reliable power line filter solutions to enhance your electrical systems' performance and compliance.
