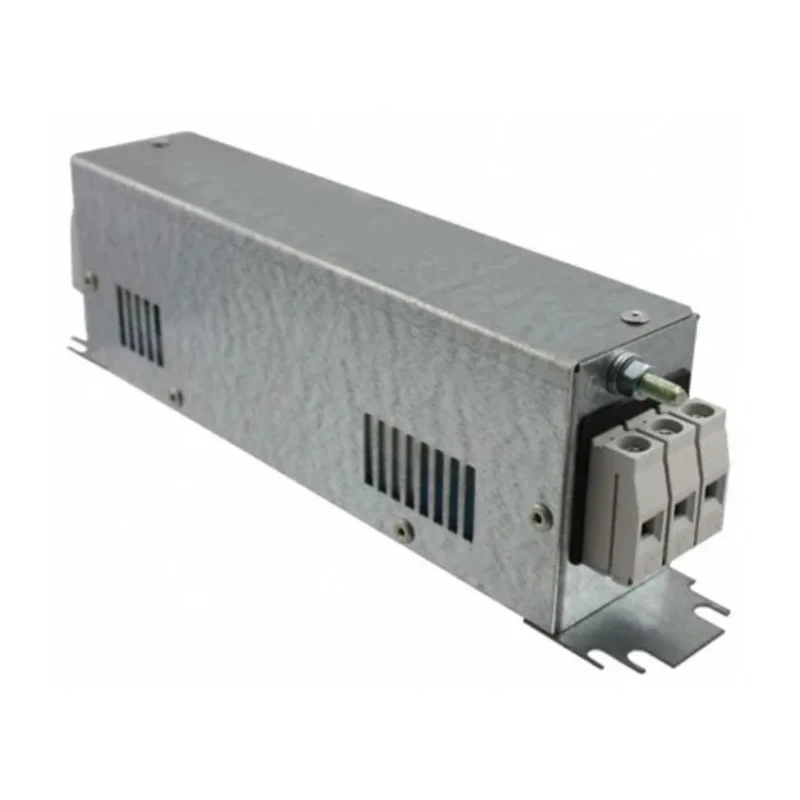

Schurter FMAC ECO Flange RFI Power Line Filter 25 A 480V AC 60Hz 3 Phase Screw Termination FMAC-091C-2510
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| Height | 70mm |
| Length | 45.5mm |
| Model | FMAC-091C-2510 |
| Depth | 250mm |
| Mount Type | Flange |
| Operating Frequency | 60Hz |
| Series | FMAC ECO |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 4.1mΩ |
| Capacitance | 2.2μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 25A |
| Number of Phases | 3 |
| Leakage Current | 8.9mA |
| Maximum Voltage | 480V ac |
| Inductance | 450μH |
| Standards/Approvals | IEC 60939, UL 1283 |
| Termination Style | Screw |
| Power Loss | 8W |
Key Features
- The filter features screw clamp terminals for secure electrical connection.
- It provides effective interference voltage suppression in photovoltaic and industrial applications.
- Operates at 60 Hz frequency with 2.2 μF capacitance and 450 μH inductance.
- Designed for flange mounting, ensuring robust mechanical stability.
- Supports a maximum operating temperature of 100°C and a minimum of -25°C.
- Exhibits low leakage current of 8.9 mA and low resistance of 4.1 mΩ.
- Power loss is rated at 8 W ensuring efficient operation.
- Conforms to IEC 60939 and UL 1283 standards with VDE and UL approvals.
Product Description
Schurter FMAC-091C-2510 is a robust flange-mounted RFI power line filter intended for 3-phase electrical systems. It is engineered to operate at a maximum current of 25 A and a voltage of 480V AC at 60 Hz frequency, making it ideal for industrial and photovoltaic applications requiring superior interference suppression.
The filter utilizes screw clamp terminals for reliable and secure termination, and it is designed for flange mounting to provide mechanical integrity in demanding environments. The device has a capacitance of 2.2 μF and an inductance of 450 μH, optimized for high symmetrical and asymmetrical attenuation across a wide frequency range from 10 kHz to 300 MHz.
Operating temperature ranges from -25°C to 100°C, ensuring consistent performance under various environmental conditions. It features a low leakage current of 8.9 mA and minimal resistance of 4.1 mΩ, contributing to energy efficiency with a power loss of just 8 W.
This product complies with international standards IEC 60939 and UL 1283, holding approvals from VDE and UL, confirming its safety and reliability in power line filtering applications.
Schurter FMAC series filters are particularly suited for applications in industrial machinery, renewable energy systems, manufacturing plants, and HVAC equipment, where suppression of electromagnetic interference is critical.
The filter features screw clamp terminals for secure electrical connection. It provides effective interference voltage suppression in photovoltaic and industrial applications. Operates at 60 Hz frequency with 2.2 μF capacitance and 450 μH inductance.
Designed for flange mounting, ensuring robust mechanical stability. Supports a maximum operating temperature of 100°C and a minimum of -25°C. Exhibits low leakage current of 8.9 mA and low resistance of 4.1 mΩ. Power loss is rated at 8 W ensuring efficient operation.
Conforms to IEC 60939 and UL 1283 standards with VDE and UL approvals. Explore more Schurter Power Line Filters at EnvMart for reliable EMI protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this power line filter is 25 A.
It can handle a maximum voltage of 480V AC.
The operating frequency of the FMAC-091C-2510 is 60 Hz.
The filter has a capacitance of 2.2 μF and an inductance of 450 μH.
This model operates within a temperature range of -25°C to 100°C.
It is designed for flange mounting, ensuring robust mechanical stability.
The filter features screw clamp terminals for secure electrical connection.
The leakage current is rated at 8.9 mA.
The dimensions are 70 mm in height, 45.5 mm in length, and 250 mm in depth.
It conforms to IEC 60939 and UL 1283 standards, with VDE and UL approvals.
The power loss is rated at 8 W, ensuring efficient operation.
It is suitable for applications in industrial machinery, renewable energy systems, manufacturing plants, and HVAC equipment.
