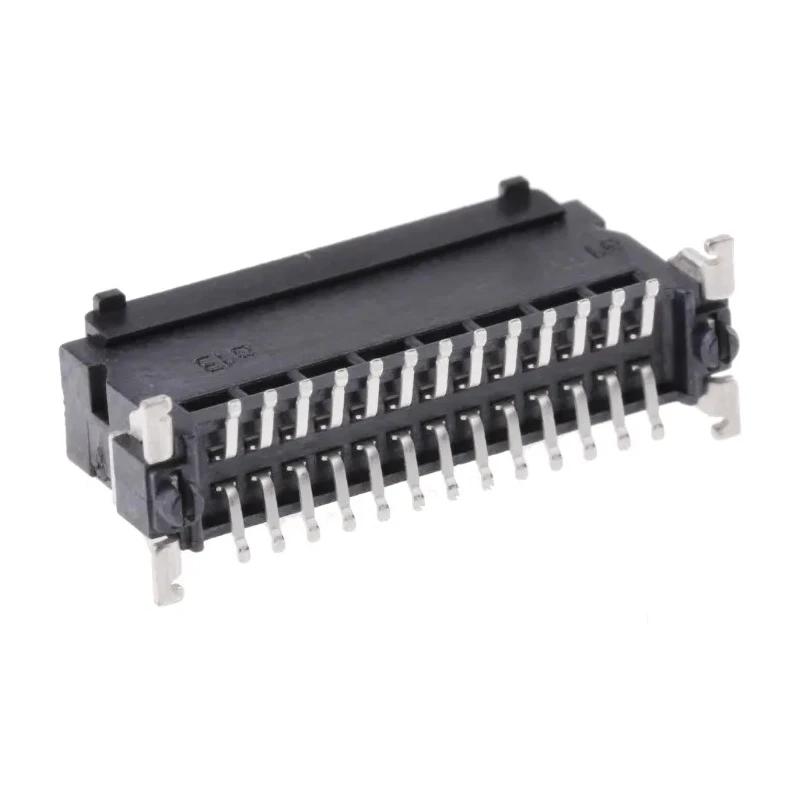

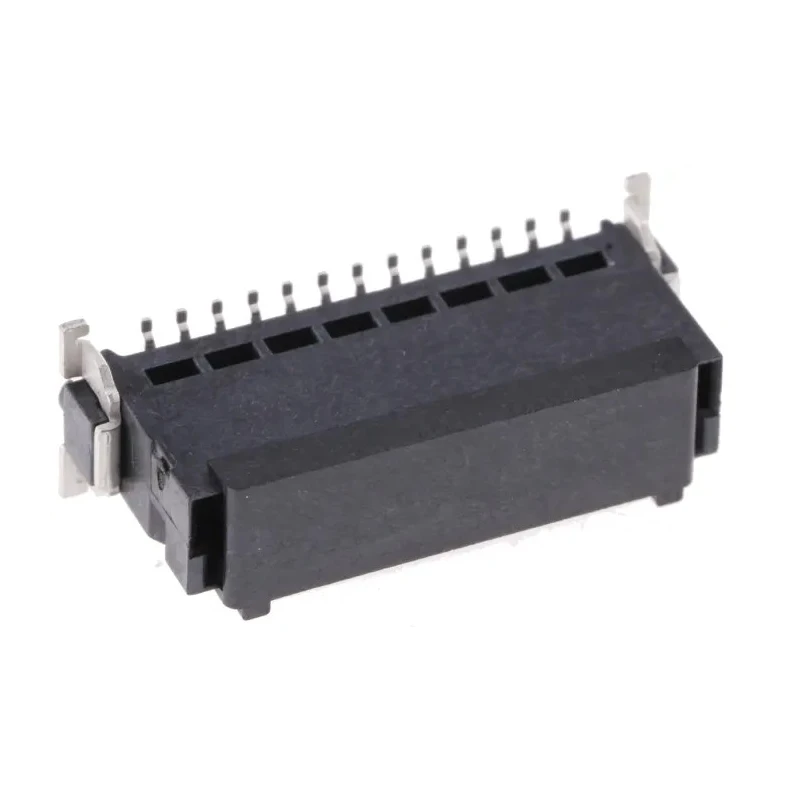

ERNI SMC Series Straight Surface PCB Header 26 Contacts 1.27 mm Pitch 2 Row Shrouded 063209 / 063209-E
Specifications
| Country of Origin | India |
|---|---|
| Brand | ERNI |
| Orientation | Straight |
| Current | 1.1A |
| Model | 063209 / 063209-E |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | SMC |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 4mm |
Key Features
- This PCB header supports high-speed signal rates of up to 3 Gbit/s.
- Features a compact, high-density design optimized for space-saving layouts.
- The housing is made from liquid crystal polymer for durability and temperature resistance.
- Connector includes locating pegs and soldering brackets for secure PCB placement and retention.
- Wide operating temperature range from -55°C to 125°C for diverse industrial environments.
- Gold-plated copper alloy contacts ensure reliable electrical performance and corrosion resistance.
- Polarized mating face and insertion chamfers prevent mis-mating and improve assembly accuracy.
- Suitable for fully automated board assembly processes.
Product Description
ERNI 063209 / 063209-E Series Straight Surface PCB Header is a high-performance board-to-board and wire-to-board connector featuring 26 male contacts arranged in 2 rows with a 1.27 mm pitch. This shrouded PCB header employs a liquid crystal polymer housing and gold-plated copper alloy contacts for excellent durability, electrical performance, and reliability.
The connector supports high-speed signal transmission rates up to 3 Gbit/s, enabled by its ultra-reliable dual beam contact design that provides continuous impedance and low resistance. Its compact and high-density layout optimizes board space and allows for efficient mezzanine stacking applications.
Polarized mating face and chamfers on the contacts ensure precise insertion and prevent mis-mating, while locating pegs and soldering brackets offer robust mechanical retention and stability on the PCB during automated assembly. The product operates within a wide temperature range of -55°C to 125°C, making it suitable for use in industrial, automotive, communications, medical, and consumer electronics environments.
The ERNI 063209 / 063209-E PCB header facilitates versatile board interconnections with a surface mount termination type and a mating pin length of 4 mm. It complies with RoHS environmental standards.
High-speed 3 Gbit/s capability with dual beam contact design. Compact 1.27 mm pitch, 26 contact, 2-row shrouded configuration. Durable liquid crystal polymer housing with gold-plated copper alloy contacts. Polarization and locating features for accurate and secure PCB mounting.
Wide operating temperature span supports harsh industrial applications. Surface mount type with solder termination suitable for automated assembly. Reliable retention with soldering brackets and locating pegs. Ideal for board-to-board and wire-to-board connector systems.
RoHS compliant for environmentally responsible manufacture.
This PCB header is an excellent solution for high-density electronic connector applications requiring reliable high-speed signal transmission in demanding industrial, laboratory, automotive, and commercial settings. Explore more ERNI connectors and PCB Headers on EnvMart for your electronics connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this PCB header is 125°C.
This model features 26 male contacts arranged in 2 rows.
The pitch of the contacts in this connector is 1.27 mm.
The housing is made from liquid crystal polymer, while the contacts are composed of gold-plated copper alloy.
The current rating for this PCB header is 1.1A.
This PCB header uses a solder termination type.
Yes, this model is RoHS compliant, ensuring environmentally responsible manufacture.
The minimum operating temperature for this PCB header is -55°C.
This model supports both board-to-board and wire-to-board connector systems.
The connector includes locating pegs and soldering brackets for secure PCB placement and retention.
The mating pin length on this PCB header is 4 mm.
The design orientation of this PCB header is straight.
