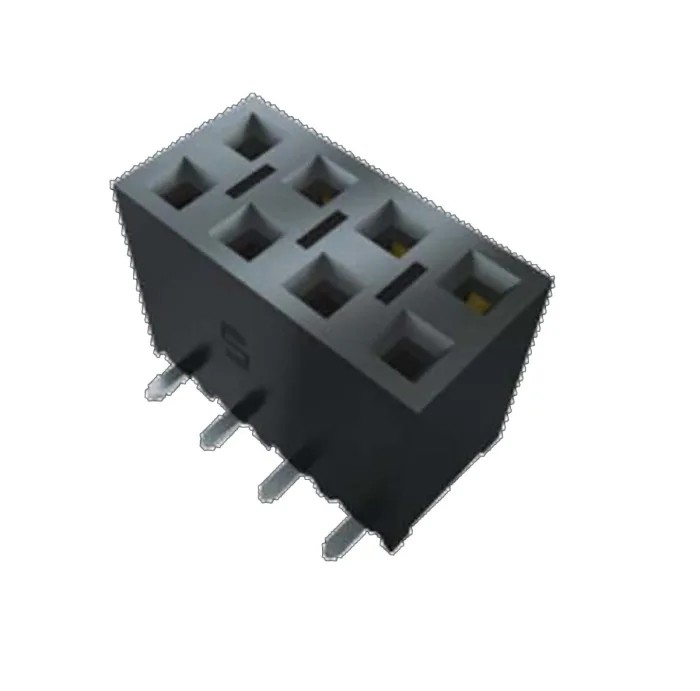

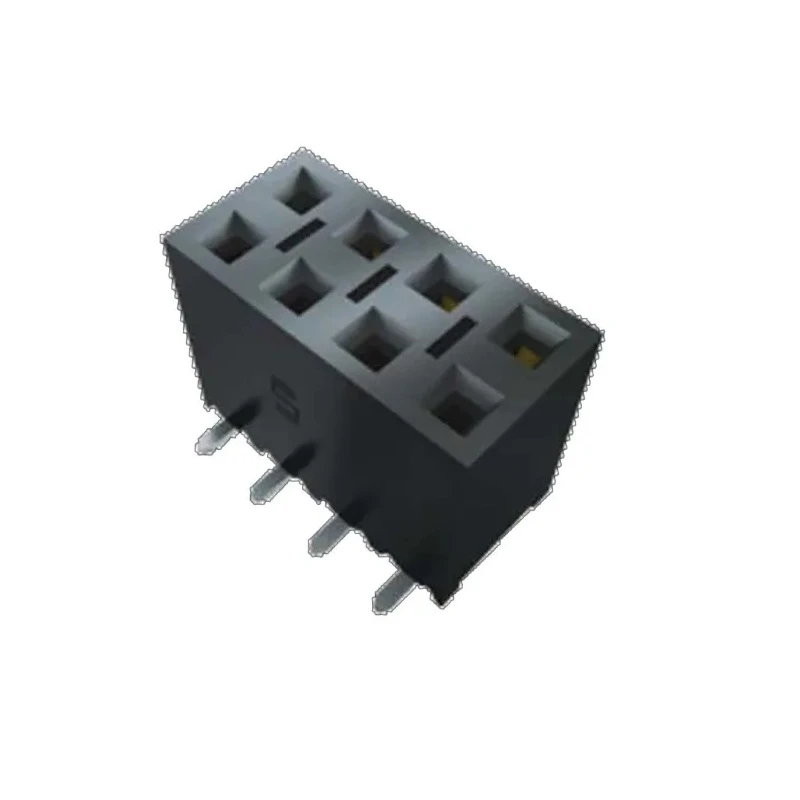

Samtec SSM Series Straight Surface PCB Socket 20-Contact, 2 Row, 2.54 mm Pitch Surface Mount SSM-110-S-DV-LC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 572V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.2A |
| Model | SSM-110-S-DV-LC |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Current Rating | 5.2A per pin(2 pins powered) |
| Series | SSM |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
| Normal Force | 125grams (1.21N) average |
Key Features
- Constructed with liquid crystal polymer housing for excellent insulation properties.
- Contacts are made from phosphor bronze material plated with gold for reliability.
- Designed for board-to-board connector systems with surface mount termination.
- Rated for 5.2A current per pin with voltage rating of 572V.
- Operating temperature range from -55°C to 125°C for diverse environmental conditions.
- Features normal force of 125 grams (1.21N) average to ensure stable contact.
- Suitable for single and double row configurations with up to 80 pins in the series.
- Orientation is straight for easy PCB mounting and integration.
Product Description
Samtec SSM-110-S-DV-LC is a new condition straight surface mount PCB socket from the SSM series designed for reliable board-to-board electrical connections. This socket features 20 female contacts arranged in 2 rows with a 2.54 mm pitch, suitable for high integrity electronic assemblies.
The housing utilizes black liquid crystal polymer, known for its durable insulation and thermal stability, while the contacts are fabricated from phosphor bronze and plated with gold to ensure optimal conductivity and corrosion resistance. This connector supports a current rating of 5.2A per pin (two pins powered) and can withstand voltage up to 572 volts DC.
Operating within a wide temperature range from -55°C to 125°C, this PCB socket is suitable for various industrial, manufacturing, and electronic applications requiring robust electrical performance. The normal operating contact force averages 125 grams (1.21 Newtons), ensuring a stable mating interface and reliable electrical contact.
Its straight orientation and surface mount termination type ensure ease of assembly on printed circuit boards. This product is part of the SSM series supporting configurations with single and double rows up to 80 pins, offering scalable solutions for complex connector needs.
Liquid crystal polymer housing for superior insulation performance. Phosphor bronze contacts plated with gold for durability and conductivity. Current rating of 5.2A per pin suitable for demanding electrical loads. Wide operating temperature range from -55°C to 125°C.
Robust design for board-to-board connector systems. Surface mount termination with straight orientation for PCB applications. Normal contact force providing reliable electrical connection.
This Samtec SSM-110-S-DV-LC PCB socket is ideal for use in industrial electronics, power and connector assemblies, manufacturing equipment, and other technical domains where secure PCB interfacing is critical. EnvMart offers this high-quality product for professionals seeking dependable PCB Socket solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 5.2A per pin when two pins are powered.
The voltage rating for this socket is 572V.
The housing is made of liquid crystal polymer, and the contacts are fabricated from phosphor bronze plated with gold.
It operates within a temperature range from -55°C to 125°C.
This socket features 20 female contacts arranged in 2 rows.
The pitch size is 2.54 mm.
It uses surface mount termination for easy assembly on printed circuit boards.
The average normal contact force is 125 grams (1.21N).
This model supports board-to-board connector systems.
The country of origin for this product is India.
Yes, it is suitable for both single and double row configurations with up to 80 pins in the series.
It is designed for industrial electronics, power and connector assemblies, and manufacturing equipment requiring secure PCB interfacing.
