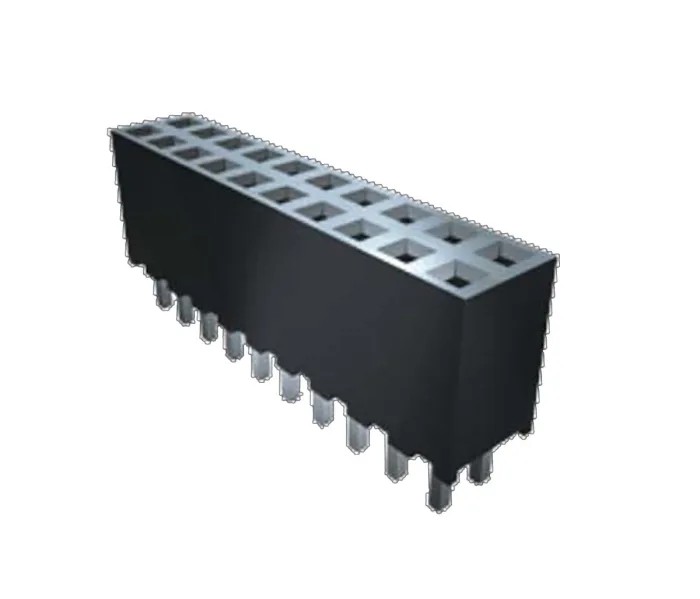

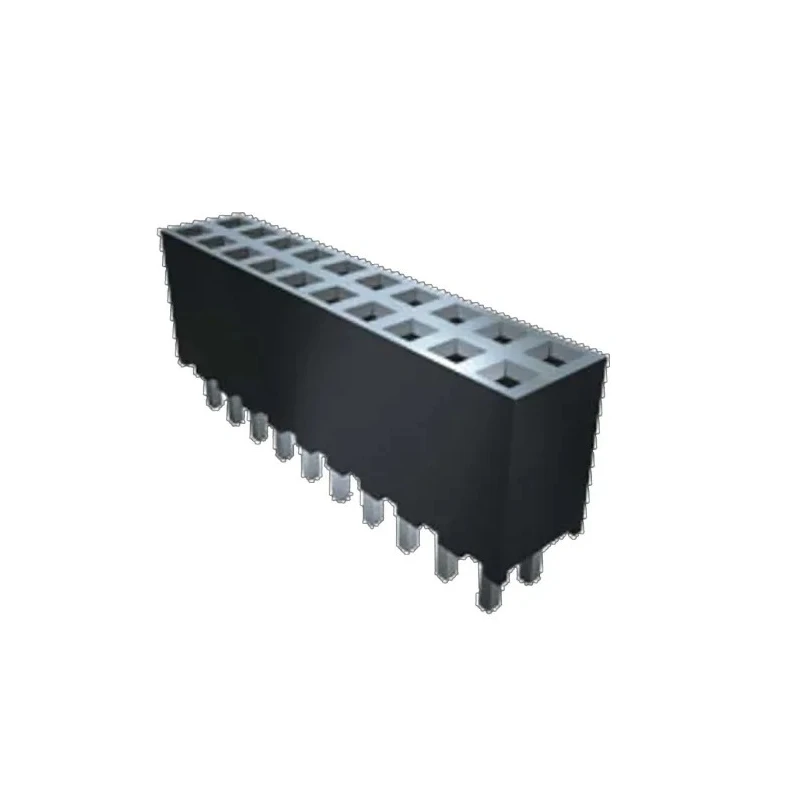

Samtec Right Angle Surface PCB Socket 60-Contact 2 Row 2 mm Pitch Solder SQT-130-03-F-D

Samtec SQT-130-03-F-D is a right angle surface mount PCB socket designed for board-to-board interconnections, featuring 60 contacts arranged in 2 rows with a 2 mm pitch. Constructed from a durable liquid crystal polymer housing with phosphor bronze contacts plated in gold, this socket offers excellent conductivity and ruggedness for demanding electronic applications.

Rated for a current of 5.1A per pin (with 2 pins powered), the socket supports operation across a wide temperature range from -55°C to +125°C, making it suitable for industrial, laboratory, manufacturing, and electronic assembly uses. Its surface mount termination ensures compatibility with modern PCB assembly processes, and the right angle orientation facilitates space-saving board designs.

The contact gender is female, and the normal force averages 60 grams, providing reliable mechanical and electrical connection without excessive wear. Operating voltage rating is 281V, suitable for many low to medium power electronic circuits.

This component is part of the Samtec SQT series, known for cost-effective, rugged sockets used in various electronic assemblies including industrial instruments and power & connectors applications.

This socket uses a liquid crystal polymer housing for ruggedness and durability. The contact material is phosphor bronze plated with gold to ensure reliable conductivity. It supports a current rating of 5.1A per pin with 2 pins powered.

Designed for surface mounting with solder termination and a right angle orientation. Operates reliably in temperatures ranging from -55°C to 125°C. Its normal force averages 60 grams (0.59N), ensuring secure mating force.

The socket supports a voltage of 281V in board-to-board connector systems.

This PCB socket is widely used in electronic component assembly, industrial controls, manufacturing equipment, and other settings requiring durable and precise board-to-board connections. Its reliable construction and technical specifications comply with industry standards for performance and safety.
