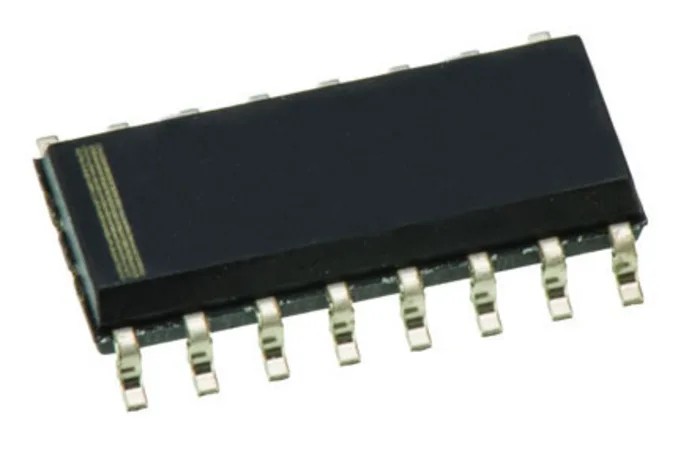

Texas Instruments Line Transmitter 3 State TTL 16-Pin SOIC MC3487D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 10mm |
| Model | MC3487D |
| Width | 6.2mm |
| Mount Type | Surface |
| Output type | 3 State, TTL |
| Series | MC3487 |
| Input Type | TTL |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| IC Type | Line Driver |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | TTL |
| Logic Function | Line Driver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -20mA |
| Maximum Propagation Delay Time @ CL | 20ns |
| Supply Current | 85mA |
| Maximum Low Level Output Current | 48mA |
Key Features
- Operates within a supply voltage range of 4.75V to 5.25V.
- Supports TTL logic family with 3 state TTL output type.
- Pin count of 16 suitable for surface mounting applications.
- Maximum propagation delay time at CL is 20ns ensuring fast signal transmission.
- Operates reliably within a temperature range of 0°C to 70°C.
- Physical dimensions are 10mm length, 6.2mm width, and 1.75mm height.
- Low supply current of 85mA for efficient operation.
- Designed to function as a line driver for RS-422 line transmitters.
Product Description
Texas Instruments MC3487D is a highly reliable 3 State TTL line transmitter housed in a compact 16-Pin SOIC surface-mount package. It features a logic family based on TTL and operates at supply voltages ranging from 4.75V to 5.25V, suitable for various electronic circuitry environments.
This IC functions as a line driver primarily used in RS-422 line transmitter applications, providing robust 3 state TTL output characteristics that enable effective signal transmission over long distances with minimal distortion.
The device operates over a temperature range from 0°C to 70°C, making it suitable for standard industrial and commercial temperature conditions. Its maximum propagation delay time of 20ns at specified load capacitance ensures quick response and minimal latency in signal delivery.
Physical package dimensions of 10mm length, 6.2mm width, and 1.75mm height allow integration into space-constrained electronics designs. It consumes a supply current of 85mA, balancing performance with power efficiency.
Key performance parameters include a pin count of 16 with surface mounting type, output current limits, and TTL input compatibility. The MC3487D does not hold specific automotive certification standards but fulfills general industrial requirements for line interface integrated circuits.
Operates with TTL logic family. Packed in SOIC surface mount package type. Supports 3 state TTL output for line driving. Supply voltage range: 4.75V to 5.25V. Maximum propagation delay: 20ns ensuring high-speed switching.
Temperature range from 0°C to 70°C supports industrial use. Compact physical dimensions suit PCB layouts with space constraints. Low power consumption with supply current at 85mA. Designed for RS-422 and similar line transmitter applications.
Reliable surface-mount format with 16 pins.
This line transmitter IC is used extensively across industrial automation, instrumentation, communication interfaces, and electronic systems requiring consistent line signal driving capabilities. Its TTL input and output compatibility make it a versatile component for legacy and modern digital systems.
Explore our comprehensive range of semiconductor and line interface integrated circuits for advanced electronic applications at EnvMart.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MC3487D operates within a supply voltage range of 4.75V to 5.25V.
The maximum propagation delay time at specified load capacitance is 20ns, ensuring fast signal transmission.
This model has physical dimensions of 10mm in length, 6.2mm in width, and 1.75mm in height.
It operates reliably within a temperature range of 0°C to 70°C.
This unit features a 3 State TTL output type, suitable for line driving applications.
The MC3487D has a pin count of 16, designed for surface mounting applications.
The supply current for this line transmitter is 85mA, balancing performance with power efficiency.
It supports the TTL logic family, making it compatible with various digital systems.
This line transmitter is primarily used in RS-422 line transmitter applications and other electronic systems requiring consistent line signal driving capabilities.
The maximum high-level output current is -20mA.
This model has a TTL input type, ensuring compatibility with TTL logic levels.
The country of origin for the MC3487D is India.
