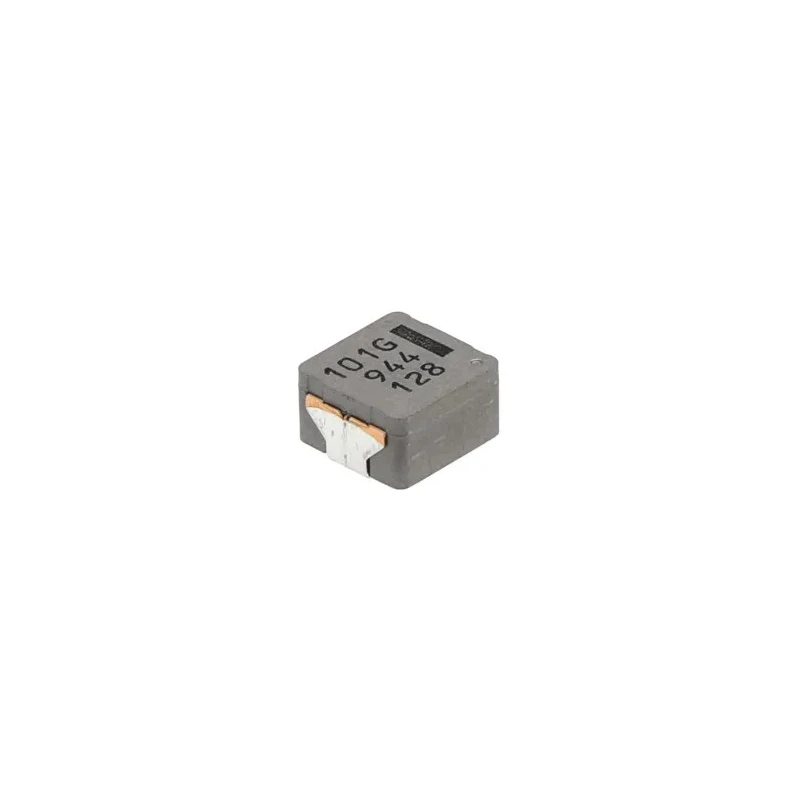

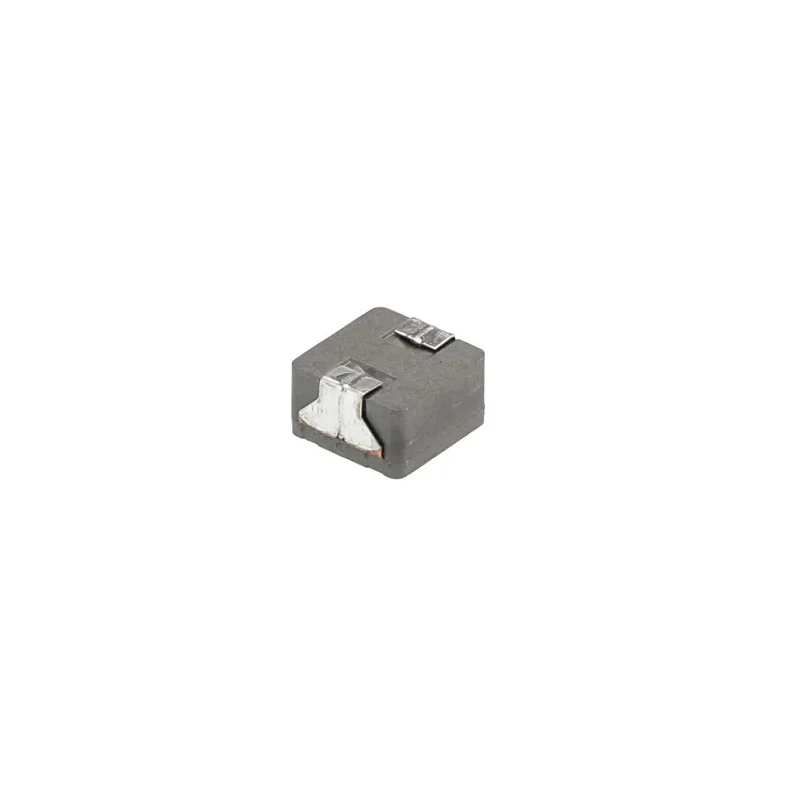

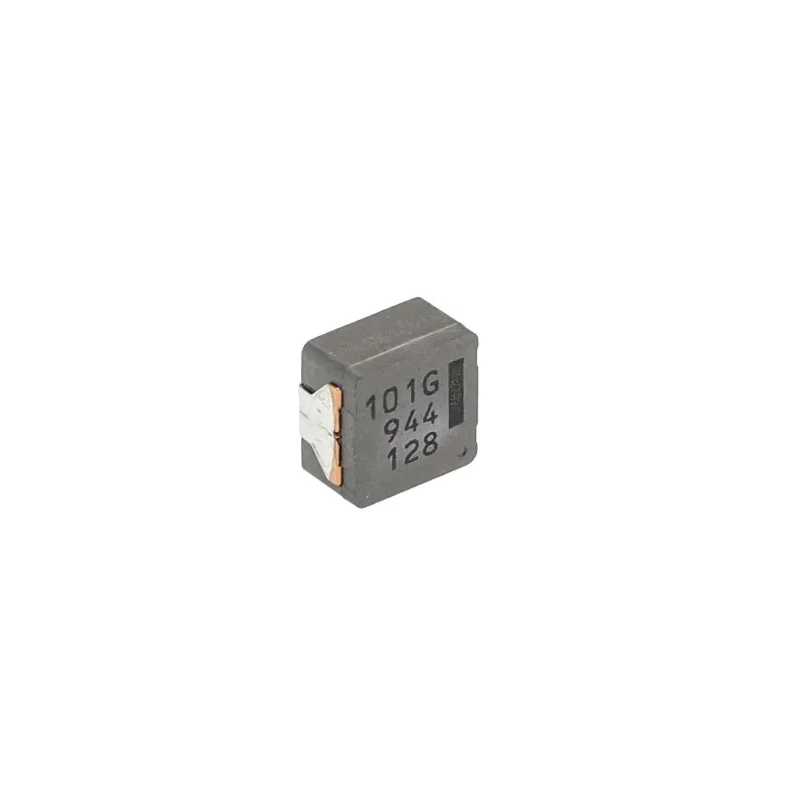

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 100 μH ±20% 2.1 A Idc ETQP5M
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5mm |
| Length | 8.5mm |
| Model | ETQP5M |
| Depth | 8mm |
| Packaging | Reel |
| Series | ETQP5M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | 0850 |
| Maximum DC Current | 2.1A |
| Maximum DC Resistance | 333mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- The metal composite core design improves performance and efficiency.
- Shielded construction minimizes electromagnetic interference for circuit stability.
- Compact dimensions of 8.5 x 8 x 5 mm suitable for surface mount applications.
- Meets automotive AEC-Q200 standard for high reliability.
- Wide operating temperature range from -40°C to 150°C ensures versatility.
- Maximum DC resistance is 333 mΩ for efficient current flow.
- Maximum self-resonant frequency of 100 kHz supports various signal applications.
- Moulded construction enhances durability and mechanical strength.
Product Description
Panasonic ETQP5M shielded wirewound surface mount inductor offers a 100 μH inductance with ±20% tolerance and a 2.1 A maximum DC current rating. Encased with a metal composite core, this inductor is designed for high efficiency and reliable operation in electronic circuits.
The 0850 package size (8.5 mm length, 8 mm depth, 5 mm height) makes it compact and well-suited for surface mounting on printed circuit boards. Its shielded design effectively reduces electromagnetic interference, contributing to stable and noise-free signals.
With compliance to the automotive AEC-Q200 standard, this component is ideal for automotive power management and other demanding applications. The operating temperature range from -40°C to 150°C enables use across various environments without performance degradation.
Key performance characteristics include a maximum DC resistance of 333 mΩ and a maximum self-resonant frequency of 100 kHz, which support efficient energy storage and filtering functions in power supplies and signal conditioning.
This inductor is wirewound and moulded, enhancing mechanical robustness and long-term reliability. It finds applications in automotive power systems, DC-DC converters, circuit filtering, and noise suppression in sensitive electronics.
The metal composite core design improves performance and efficiency. Shielded construction minimizes electromagnetic interference for circuit stability. Compact dimensions allow for efficient PCB space utilization. Compliance with AEC-Q200 supports automotive-grade reliability requirements.
Wide temperature range accommodates diverse industrial environments. Moulded wirewound construction enhances durability. Suitable for power management and noise-sensitive electronic circuits.
This Panasonic ETQP5M Surface Mount Inductor is a dependable choice for industrial and automotive electronics, combining compact size with robust electrical characteristics. Explore more high-quality components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 100 μH with a tolerance of ±20%.
This model has a maximum DC current rating of 2.1 A.
The dimensions are 8.5 mm in length, 8 mm in depth, and 5 mm in height.
The maximum operating temperature is 150°C.
The minimum operating temperature is -40°C.
It uses a metal composite core, which enhances performance and efficiency.
The maximum DC resistance is 333 mΩ.
The maximum self-resonant frequency is 100 kHz.
This inductor complies with the automotive AEC-Q200 standard and is RoHS certified.
The construction type is wirewound and moulded, which enhances mechanical robustness.
The termination style is surface mount, suitable for PCB applications.
It is suitable for automotive power systems, DC-DC converters, circuit filtering, and noise suppression in sensitive electronics.
