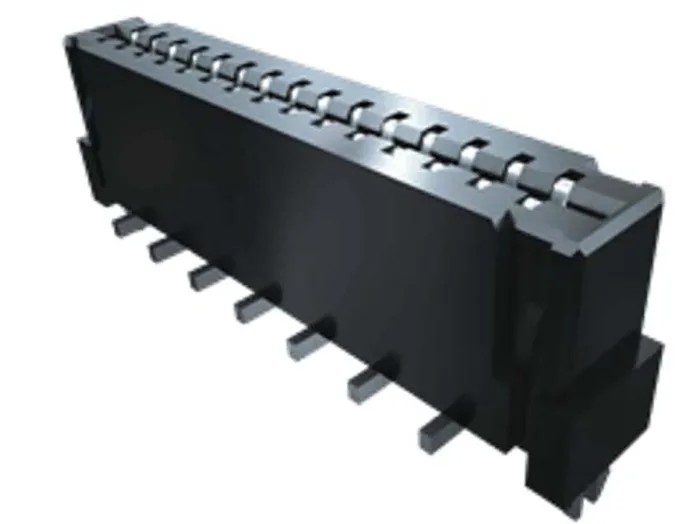

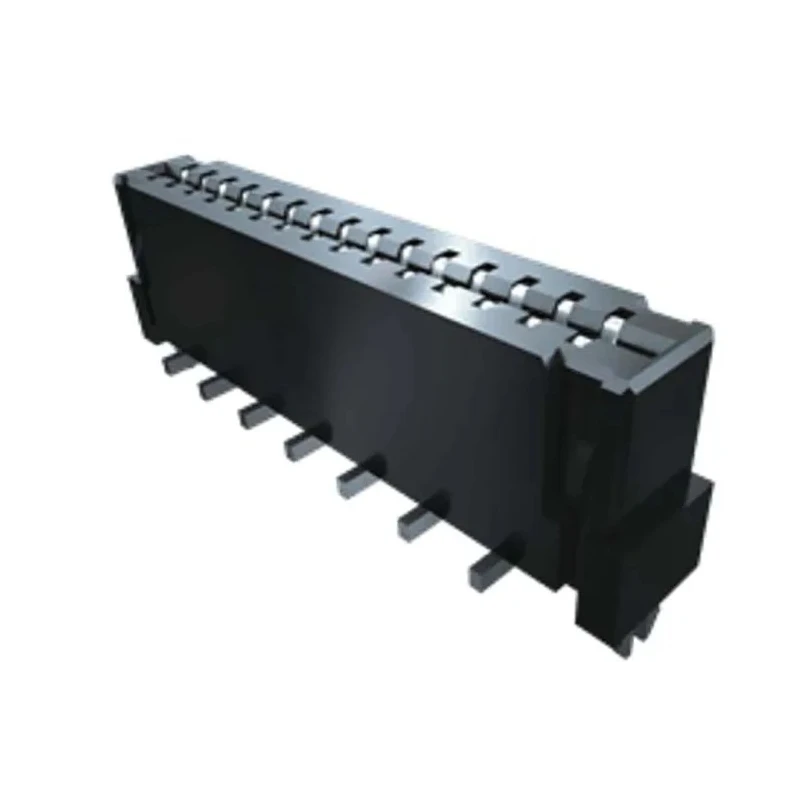

Samtec FC1 Series Straight Surface PCB Socket 5-Contact 1 Row 1 mm Pitch 339 V 2 A FC1-05-02-T-WT
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 339V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2A |
| Model | FC1-05-02-T-WT |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FC1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | PCB Socket |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector System | Board-to-Cable |
Key Features
- The socket features a 1 mm pitch configuration for precise connection.
- It is constructed with phosphor bronze contacts plated with tin for reliable conductivity.
- The housing is made from black Liquid Crystal Polymer, ensuring durability and thermal resistance.
- Designed for surface mounting with a straight orientation to fit boards efficiently.
- Operating temperature ranges from -55°C to +105°C for versatile application environments.
- Termination is done via soldering to ensure secure and stable electrical connections.
- This socket is RoHS compliant and lead-free solderable for environmental safety.
Product Description
Samtec FC1-05-02-T-WT is a straight surface PCB socket from the FC1 Series, featuring 5 contacts arranged in a single row with 1 mm pitch. It supports a voltage rating of 339 V and a current rating of 2 A, making it suitable for reliable board-to-cable interconnections in electronic systems.
The contacts are made of phosphor bronze and plated with tin to enhance conductivity and corrosion resistance. The housing is fabricated from black Liquid Crystal Polymer, providing excellent mechanical stability and high thermal tolerance. Designed for surface mount technology, the socket offers easy solder termination and a stable electrical interface.
Operating reliably in harsh environments, the device can function within a temperature range from -55°C to 105°C. It meets RoHS standards and is lead-free solderable, ensuring compliance with environmental regulations and promoting safer usage.
This PCB socket is ideal for electronics manufacturing, PCB assembly, industrial applications, and research laboratories requiring dependable connection solutions in compact form factors.
The socket has a 1 mm pitch for high-density PCB designs. Female contact gender ensures compatibility with various male connectors. Phosphor bronze contacts plated with tin provide longevity and low resistance. Liquid Crystal Polymer housing offers mechanical robustness and heat stability.
Surface mount configuration supports modern PCB manufacturing processes. Compatible with board-to-cable connector systems for flexible wiring layouts. RoHS compliant and lead-free solderable for environmental and safety compliance.
EnvMart offers this Samtec FC1 Series PCB Socket as part of its extensive electronic components range, supporting industrial, laboratory, manufacturing, and commercial electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Samtec FC1-05-02-T-WT PCB socket has a voltage rating of 339 V and a current rating of 2 A.
This model features a 1 mm pitch configuration, allowing for high-density PCB designs.
The contacts are made of phosphor bronze and plated with tin, while the housing is constructed from black Liquid Crystal Polymer.
It operates within a temperature range of -55°C to +105°C, making it suitable for various application environments.
Termination is achieved via soldering, ensuring secure and stable electrical connections.
This PCB socket has a straight orientation designed for surface mounting.
The socket features 5 contacts arranged in a single row.
Yes, it is RoHS compliant and lead-free solderable, ensuring environmental safety.
It is compatible with board-to-cable connector systems, providing flexible wiring layouts.
The contacts are female, allowing compatibility with various male connectors.
The country of origin for this PCB socket is India.
