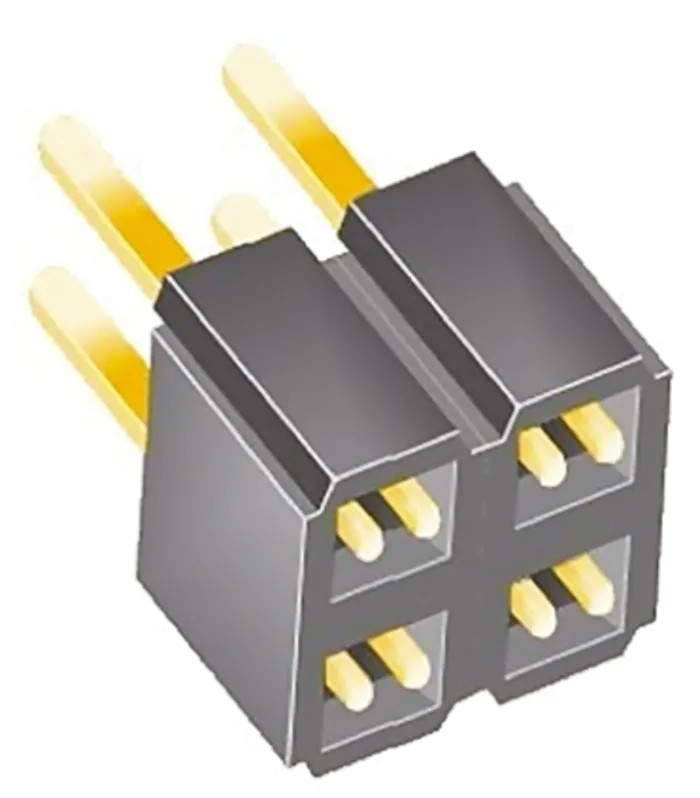

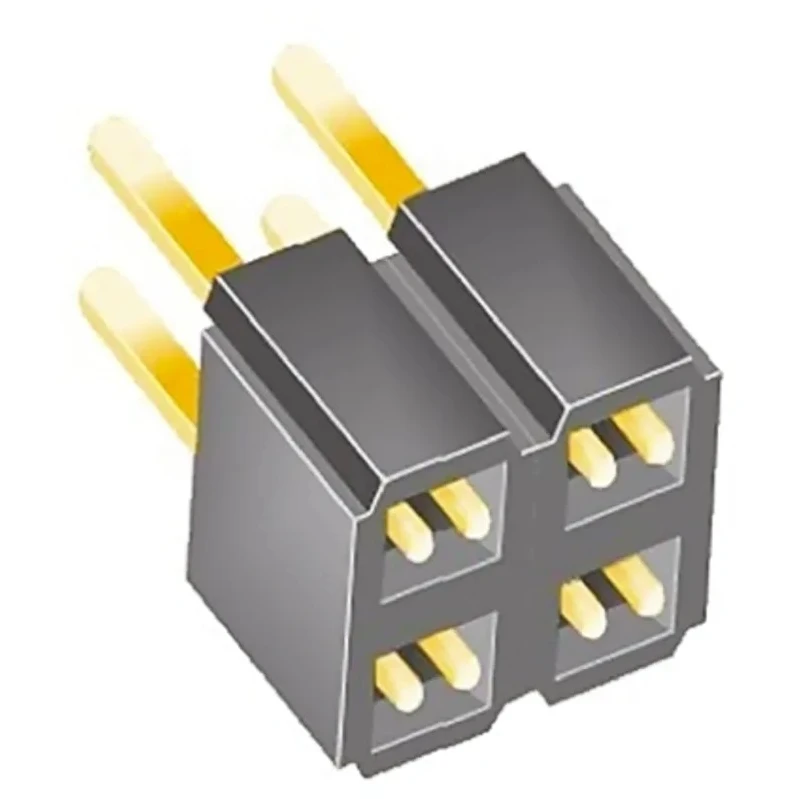

Samtec SLW Series Straight Through Hole PCB Socket 4-Contact 2 Row 2.54 mm Pitch Solder SLW-102-01-G-D

Samtec SLW-102-01-G-D is a precision-engineered PCB socket designed for board-to-board connectivity in demanding electronic and industrial applications. This through-hole socket features a 4-contact, 2-row layout with a standard 2.54 mm pitch, facilitating reliable mechanical and electrical connections in compact spaces.

The housing is manufactured from robust black glass filled polyester, ensuring mechanical strength and resistance to thermal and environmental stresses. Contacts are made from phosphor bronze with a fine 0.51 µm gold plating on the contact area for optimal conductivity and durability under repeated mating cycles, complemented by gold flash plating on other surfaces.

Designed for solder termination with through-hole mounting, this socket supports a current rating of 7.1 A and can operate reliably at voltages up to 550 V. The socket maintains full functionality in a wide temperature range from -55 °C to +125 °C, supporting usage in industrial, laboratory, and manufacturing contexts.

The low profile design offers a stacking height of 10 mm, enabling effective utilization in multi-layer PCB assemblies. Its straight orientation and solder tail of 3.25 mm simplify PCB assembly processes and improve production efficiency.

This SLW series product series is compatible with TLW, TSM, and TSW series square post headers, providing design flexibility and expanded application possibilities in electronic connector systems.

Features a 4-contact, 2-row design with a 2.54 mm pitch for compact PCB mounting. Constructed from black glass filled polyester housing ensuring durability and heat resistance. Phosphor bronze contacts with 0.51 µm gold plating provide excellent electrical conductivity and corrosion resistance.

Supports a current rating of 7.1 A and voltage rating of 550 V for robust performance. Designed for through-hole solder termination with straight orientation enabling ease of installation. Operating temperature ranges between -55 °C and +125 °C suitable for harsh industrial environments.

Low profile with a stacking height of 10 mm allows for compact PCB stacking configurations. Compatible with TLW, TSM, and TSW series square post headers enhancing versatility in system design. Suitable for industrial, laboratory, manufacturing, and electronic assembly applications requiring reliable board-to-board connections.

This product is provided new and is a standard solution for PCB Socket interconnects. Explore other Samtec PCB connectors and sockets in our extensive catalog for comprehensive electronic connectivity solutions at EnvMart.
