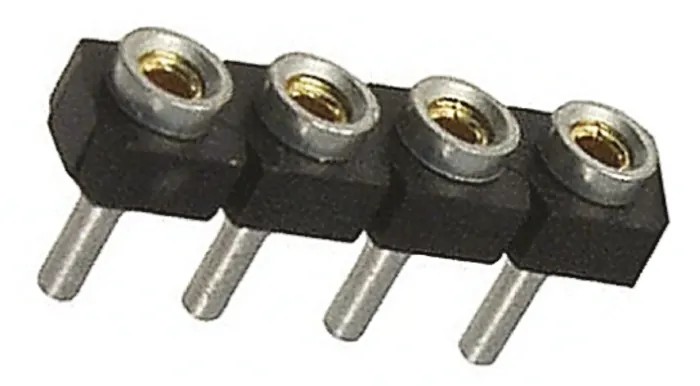

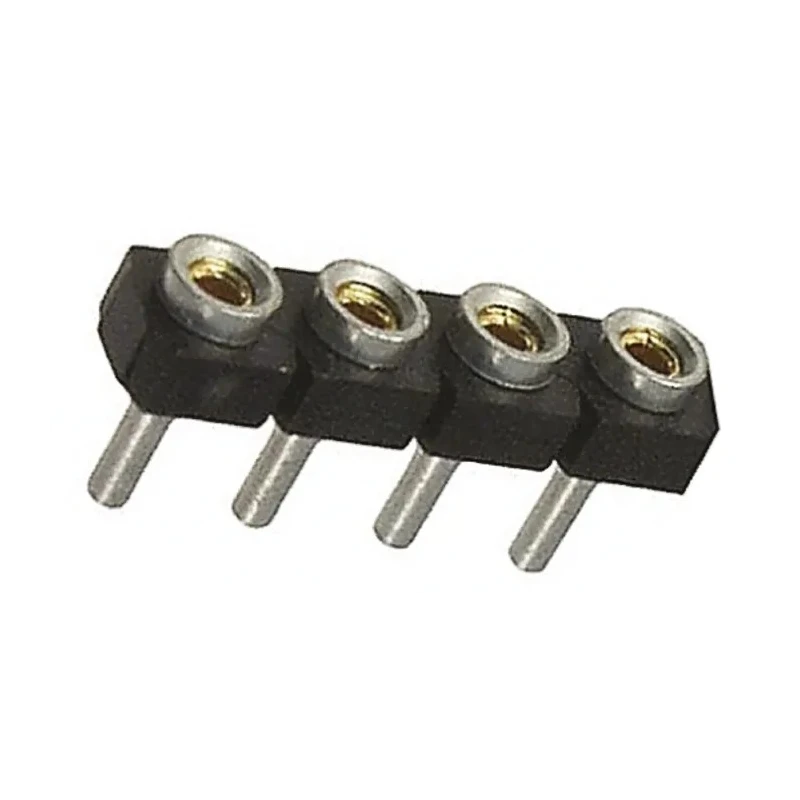

Samtec SL Series Straight Through Hole PCB Socket 4-Contact 1 Row 2.54 mm Pitch Solder SL-104-T-12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | SL-104-T-12 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | SL |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| BBL series header terminal strips | see stock number 766-6367 typically |
| BBS series header terminal strips | see stock number 766-6442 typically |
Key Features
- Constructed with liquid crystal polymer housing for enhanced durability.
- Features beryllium copper alloy contacts with gold plating for reliable conductivity.
- Rated for 12A current with operating temperature range from -55°C to 125°C.
- Designed with straight orientation and female contact gender for versatile board-to-board connections.
- Complies with RoHS standards ensuring environmental safety.
- Part of the SL series known for low profile 2.54 mm pitch screw machined socket strips.
- Compatible with BBL, BBS, and TS series header terminal strips for seamless integration.
Product Description
Samtec SL-104-T-12 is a high-quality SL Series Straight Through Hole PCB Socket engineered for robust and reliable board-to-board electrical connections in industrial and electronic applications.
This connector features 4 female contacts arranged in a single row with a precise 2.54 mm pitch, enabling low profile integration in compact PCB designs. Its housing is made from durable black glass-filled polyester, a form of liquid crystal polymer, which provides excellent mechanical strength and temperature resistance.
The beryllium copper alloy contacts are plated with 0.76μm of gold and a tin shell, ensuring consistent electrical conductivity and corrosion resistance. This socket supports a maximum current of 12 amperes and withstands operating temperatures ranging from -55°C to 125°C, making it suitable for demanding industrial environments.
SL-104-T-12's through hole mount type and straight orientation simplify assembly and soldering processes. It is compliant with RoHS regulations, reflecting its design for environmentally responsible manufacturing and usage.
These machined socket strips mate compatibly with Samtec’s BBL series (stock number 766-6367), BBS series (stock number 766-6442), and TS series (stock number 765-6414) header terminal strips, providing flexible application options for board-to-board connection solutions.
Durable liquid crystal polymer housing for mechanical strength. Beryllium copper alloy contacts with gold plating for reliable conductivity. Rated 12A current capacity at operating temperatures between -55°C and 125°C. Straight through hole mounting design for easy PCB integration.
Compliant with RoHS environmental standards. Compatible with multiple Samtec header terminal strip series for extended usability.
This PCB socket is ideal for use in electronic manufacturing, industrial control systems, telecommunications equipment, and other applications requiring secure and high-performance electrical connections. Explore the EnvMart Electronics Components section for more PCB Sockets and connectors matching your technical and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SL-104-T-12 socket is rated for a maximum current of 12A.
This model operates within a temperature range of -55°C to 125°C.
The housing is made from liquid crystal polymer, while the contacts are made from beryllium copper alloy with gold plating.
The pitch size for this socket is 2.54 mm.
This socket features 4 female contacts arranged in a single row.
It utilizes a through hole mounting type for easy integration into PCBs.
Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations.
The SL-104-T-12 is compatible with BBL series (stock number 766-6367), BBS series (stock number 766-6442), and TS series (stock number 765-6414) header terminal strips.
This model features a straight orientation for versatile board-to-board connections.
The termination type for this socket is solder.
The socket is manufactured in India.
It is suitable for electronic manufacturing, industrial control systems, and telecommunications equipment requiring secure electrical connections.
