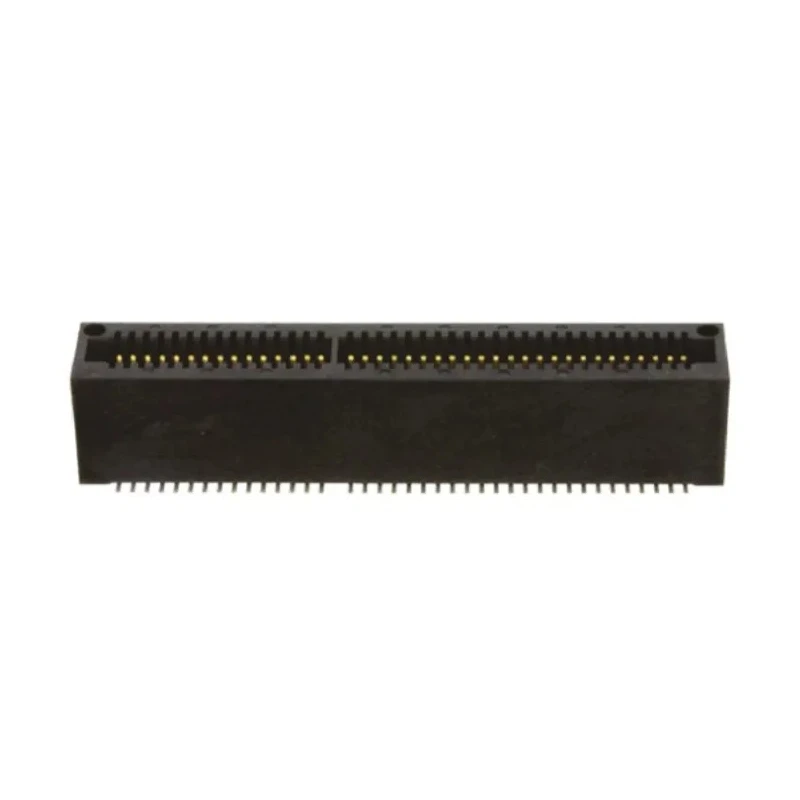

Samtec MEC1 Series Straight Edge Connector Female, Surface Mount, 120-Contacts, 1 mm Pitch, 2 Row, Solder MEC1

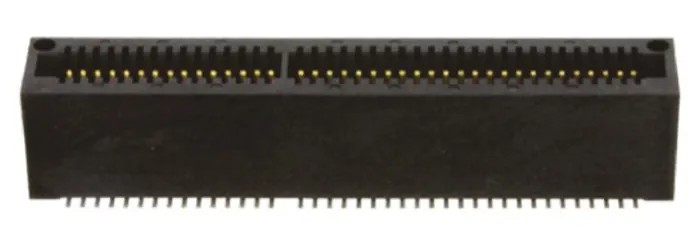

Samtec MEC1 Series Straight Edge Connector MEC1 is a female edge connector designed for surface mount applications, featuring 120 gold-plated contacts with a pitch of 1 mm arranged in two rows. It is suitable for high-reliability electronic assemblies operating up to 2 amperes of current and 300V ac voltage.

The connector’s contact material is beryllium copper alloy, plated with gold over nickel, ensuring excellent conductivity and resistance to corrosion. The housing is made from liquid crystal polymer which provides mechanical strength and stability under operating temperatures ranging from -55°C to 125°C.

These edge connectors accept 1.60 mm thick cards and are SMT vertical mount, fully polarized to prevent incorrect insertion. The termination style is solder, designed to provide secure and durable PCB connections. Part numbers ending with 'A' include alignment pins improving connector positioning on PCBs.

This product is particularly suitable for industrial electronics, manufacturing, power connectors, and PCB applications where precise, secure edge card connections are needed. The robust construction supports a wide range of environments and usage scenarios.

This edge connector supports a current rating of 2 A for reliable electrical performance. Constructed with beryllium copper alloy contacts plated with gold over nickel for corrosion resistance. The housing material is liquid crystal polymer, offering durability and thermal stability.

Designed to accommodate cards with a thickness of 1.6 mm and operates within a temperature range of -55°C to 125°C. The termination type is solder, ensuring secure PCB connections. Rated to withstand voltages up to 300V ac for versatile application.

The connector is fully polarized and designed for SMT vertical PCB mounting. Includes alignment pins on part numbers ending with 'A' for precise installation. Ideal for industrial, electronic, and manufacturing applications requiring robust PCB edge connectivity.
