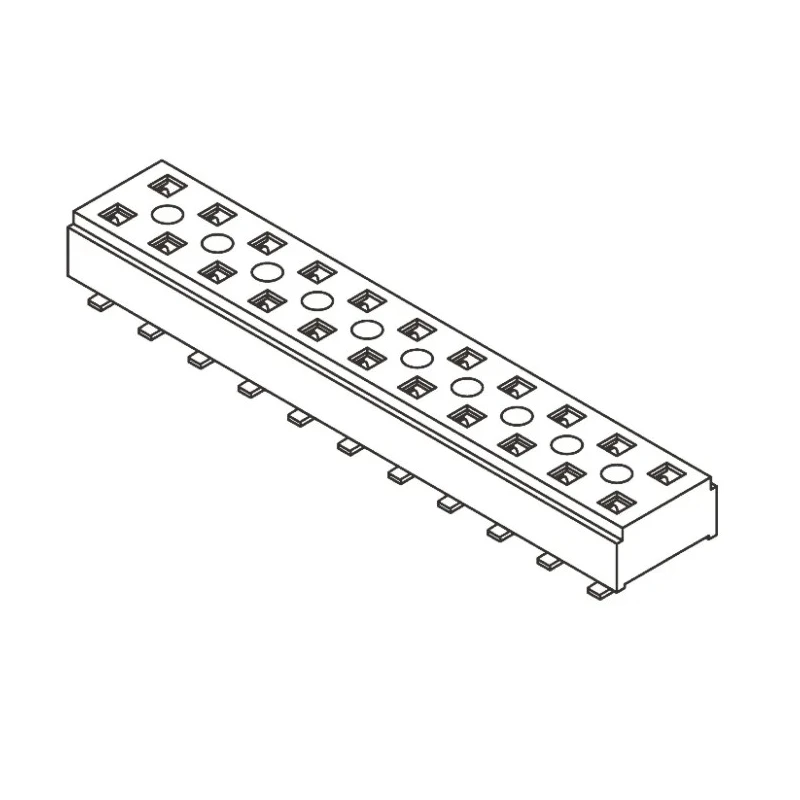

Samtec CLT Series Straight Surface PCB Socket 28-Contact 2 Row 2 mm Pitch Solder CLT-114-02-L-D

Samtec CLT-114-02-L-D is a straight surface mount PCB socket designed for board-to-board connector applications. This socket features 28 contacts arranged in 2 rows with a 2 mm pitch, optimized for compact electronic assemblies.

The housing is made from Liquid Crystal Polymer, providing excellent mechanical stability and temperature resistance. Bronze contacts are gold plated with 0.25 μm thickness using Samtec's Tiger Claw technology, which ensures high reliability and electrical performance. The termination type is solder, facilitating strong and stable mounting on PCB surfaces.

This connector supports a continuous current rating of 3.3 A and operates across a wide temperature range from -55°C to 125°C, making it suitable for industrial, commercial, and laboratory electronic applications. Compliance with RoHS standards ensures it meets environmental regulations and sustainability requirements.

The CLT Series sockets include both through-hole and surface mount versions, with this particular model being surface mount with an above board height of approximately 2.27 mm. The dual wipe contact design provides reliable and long-lasting electrical contact, ideal for use with TMM series board-to-board headers.

Features 28 contacts arranged in 2 rows for reliable connections. Board-to-board connector system with 2 mm pitch ensures tight spacing. Constructed with Liquid Crystal Polymer housing for durability. Bronze contacts plated with 0.25 μm gold for enhanced conductivity and corrosion resistance.

Terminated with solder and mounted on the surface for ease of assembly. Supports a current rating of 3.3 A suitable for low power applications. Operates reliably in temperatures from -55°C to 125°C. Complies with RoHS standards for environmental safety.

Low profile dual wipe design for secure mating with TMM series headers.

This Samtec PCB Socket is ideal for use in electronics manufacturing, industrial control systems, embedded systems, and telecom equipment requiring compact and reliable board-to-board connections. It facilitates efficient assembly and high-density PCB design.
