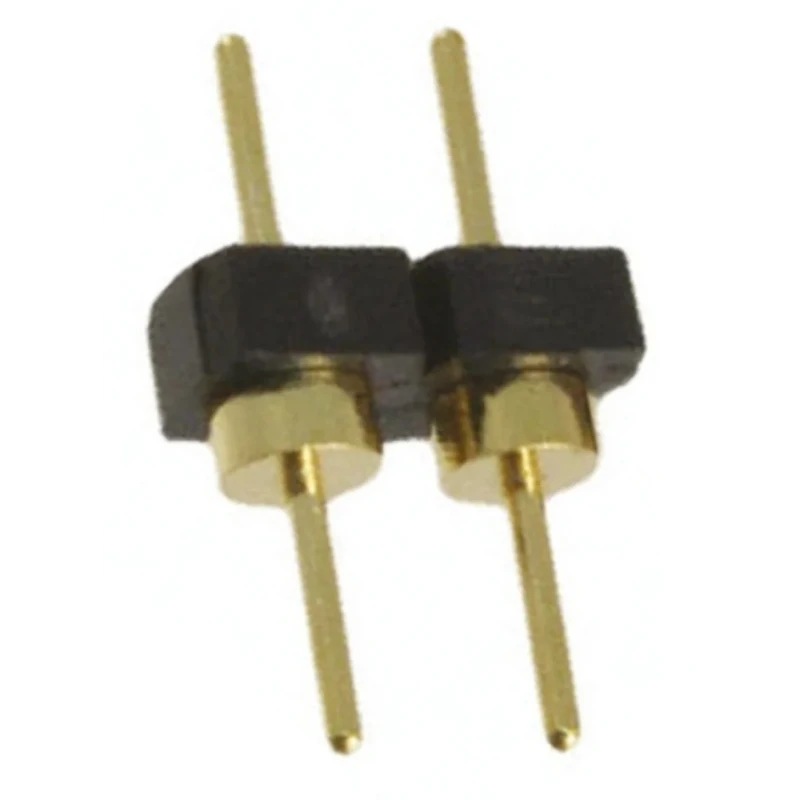

Samtec BBL Series Straight Through Hole Pin Header 2 Contacts 2.54 mm Pitch 1 Row Unshrouded BBL-102-G-F

Free Delivery in India | Lowest Global Shipping Charges

Samtec BBL Series Straight Through Hole Pin Header 2 Contacts 2.54 mm Pitch 1 Row Unshrouded BBL-102-G-F

Name: Samtec BBL Series Straight Through Hole Pin Header 2 Contacts 2.54 mm Pitch 1 Row Unshrouded BBL-102-G-F
Brand: Samtec
SKU: 105204
Price: 1.19 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Current	1A
Model	BBL-102-G-F
Mount Type	Through Hole
Housing Material	Glass Filled Polyester
Contact Material	Brass
Series	BBL
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board
Tail Pin Length	3.18mm
Mating Pin Length	3.1mm
SL series low profile socket strips	see stock number 767-9329 typically
SS series socket strips	see stock number 767-9717 typically

Key Features

Provides reliable board-to-board connection via through hole mount.
Constructed with glass filled polyester housing for durability.
Brass contacts plated with gold ensure excellent conductivity.
Operates within -55°C to 125°C temperature range.
Includes 3.18 mm tail pin length and 3.1 mm mating pin length.
Low profile design achieves 3.89 mm board spacing when mated.
Unshrouded male contact type suitable for various PCB applications.
Compatible with SL and SS series low profile socket strips.

Product Description

Samtec BBL-102-G-F is a straight through hole pin header from the BBL series, designed for robust board-to-board electrical connections in electronic assemblies. Featuring a single row of 2 contacts spaced at 2.54 mm pitch, this unshrouded header is built with a glass filled polyester housing that combines strength and electrical insulation.

The pin contacts are made of brass with a fine gold plating, ensuring high conductivity and corrosion resistance. The termination type is solder, which guarantees secure and reliable PCB mounting. The header is rated to carry currents up to 1 ampere and is capable of operating across extreme environmental conditions from -55°C to 125°C.

The BBL-102-G-F’s low profile board stacking design facilitates a 3.89 mm spacing when mated with compatible SL series low profile socket strips, which makes it suitable for compact electronic devices requiring board stacking. The tail pins measure 3.18 mm in length and the mating pins 3.1 mm, optimized for secure mechanical and electrical connection.

Provides a durable and precise board-to-board connector solution. Enables reliable electrical contact with gold plated brass pins. Designed for through hole mounting ensuring mechanical stability. Maintains integrity over a broad temperature range suitable for industrial applications.

Compatibility with SL and SS series socket strips enhances versatile use cases. Low profile design reduces overall assembly height for compact electronics. Ideal for applications in industrial, consumer, telecommunications, and computing devices.

Samtec products like the BBL series are widely used in industrial electronics manufacturing, test and measurement equipment, and communications hardware where performance and reliability are critical. The precise manufacturing standards meet demanding environmental and mechanical requirements.
