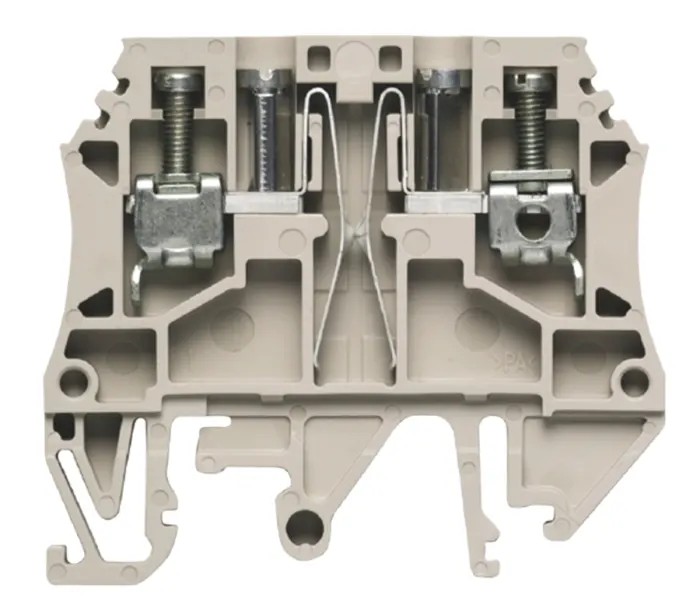

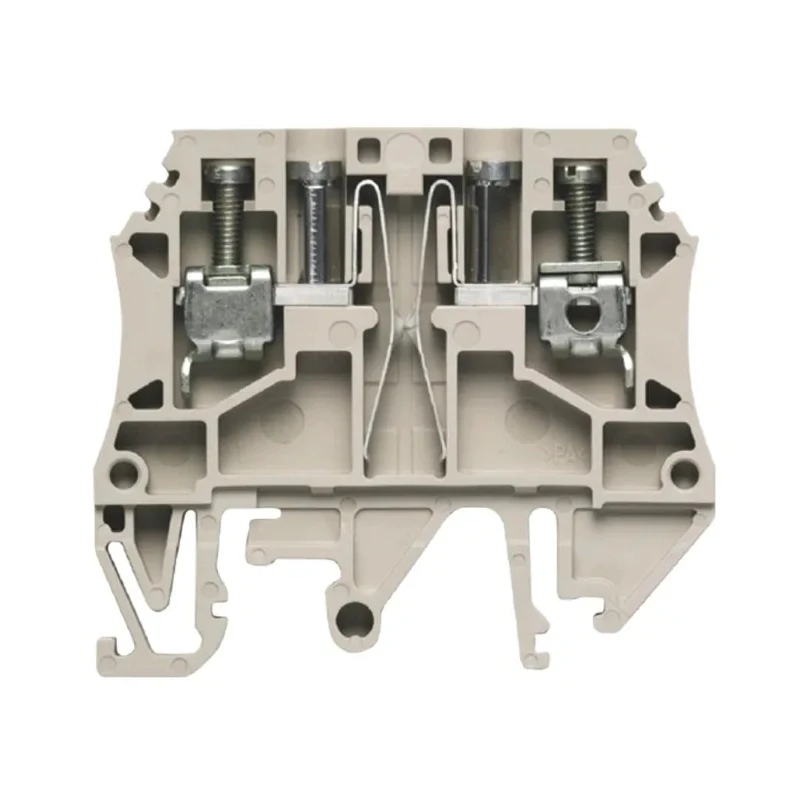

Weidmüller W Series DIN Rail Terminal Block, 4mm² Cable CSA, 1-Level, 2 Position, Screw Termination, 500V, 10A 1881650000
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 500V |
| Brand | Weidmüller |
| Colour | Dark Beige |
| Series | W |
| Termination Type | Screw |
| Maximum Operating Temperature | 55°C |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Sub Type | Disconnected |
| Minimum Operating Temperature | -25°C |
| Minimum Wire Size AWG | 10AWG |
| Maximum Wire Size AWG | 26AWG |
| Cable CSA | 4mm² |
| Terminal Block Current | 10A |
Key Features
- The terminal block supports a cable cross-section area of 4mm² and wire sizes from 10AWG to 26AWG.
- It is rated for a maximum current of 10A and a maximum voltage of 500V.
- Constructed from durable nylon 6.6 material, it offers high temperature resistance up to 120°C continuous.
- The W series terminal features a test socket on input and output sides to facilitate standard test leads.
- The isolating function is controlled by a screw in the housing, allowing safe locking and unlocking.
- Suitable for mounting on standard ‘Top Hat’ DIN rails, the block is self-extinguishing to UL94V-0 standards.
- It is free from cadmium and halogen, ensuring safety and environmental compliance.
Product Description
Weidmüller 1881650000 W Series DIN Rail Terminal Block is an industrial-grade electrical connector designed for efficient distribution and connection of electrical wiring in control cabinets and panel boards.
Manufactured using nylon 6.6, this dark beige terminal block exhibits a continuous temperature rating of 120°C with short-term tolerance up to 180°C, and meets UL94V-0 self-extinguishing standards. It is designed to support cable cross-section area of 4mm² and wire range from 10AWG to 26AWG, making it versatile for various wiring sizes.
The terminal block supports currents up to 10A and voltage ratings up to 500V, suitable for a broad spectrum of industrial electrical applications including automation, power distribution, and control panels.
The W series terminals integrate a 4mm test socket on both input and output sides, providing convenient access for electrical testing and maintenance without disconnection. The isolating function is actuated by a screw mechanism in the orange housing, providing a secure lockable position for safety during servicing.
Engineered for use with ‘Top Hat’ DIN rail mounting systems, the block ensures quick installation and reliable mechanical retention. The copper current bars of 10 mm thickness ensure superior conductivity and current carrying capacity above nominal ratings.
This product is designed and manufactured in Romania and is free from hazardous substances such as cadmium and halogens, supporting environmentally responsible operations. The terminal block supports a cable cross-section area of 4mm² and wire sizes from 10AWG to 26AWG.
Rated for a maximum current of 10A and voltage of 500V. Constructed from self-extinguishing nylon 6.6 for high temperature tolerance and safety. Equipped with 4mm test sockets on input and output sides for convenient testing.
Lockable isolating function via screw mechanism for safe operation during maintenance. Compatible with standard ‘Top Hat’ DIN rails for easy installation. Manufactured in Romania and free from cadmium and halogen substances.
Ideal for electrical and electronics industrial sectors such as manufacturing, automation, HVAC, and power distribution systems. Explore more DIN Rail Terminal Blocks at EnvMart for diverse applications requiring reliable electrical connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a maximum current of 10A and a maximum voltage of 500V.
It supports a cable cross-section area of 4mm² and accommodates wire sizes from 10AWG to 26AWG.
The terminal block is constructed from nylon 6.6, which is self-extinguishing and offers high temperature resistance.
The minimum operating temperature is -25°C, and the maximum operating temperature is 55°C.
The isolating function is controlled by a screw mechanism in the housing, allowing for safe locking and unlocking.
It uses screw termination for secure connections.
The terminal block is dark beige in color.
This product is manufactured in Romania.
It is designed for mounting on standard 'Top Hat' DIN rails.
Yes, it features a 4mm test socket on both input and output sides for convenient electrical testing.
The copper current bars have a thickness of 10 mm, ensuring superior conductivity.
It meets UL94V-0 self-extinguishing standards and is free from cadmium and halogen substances.
