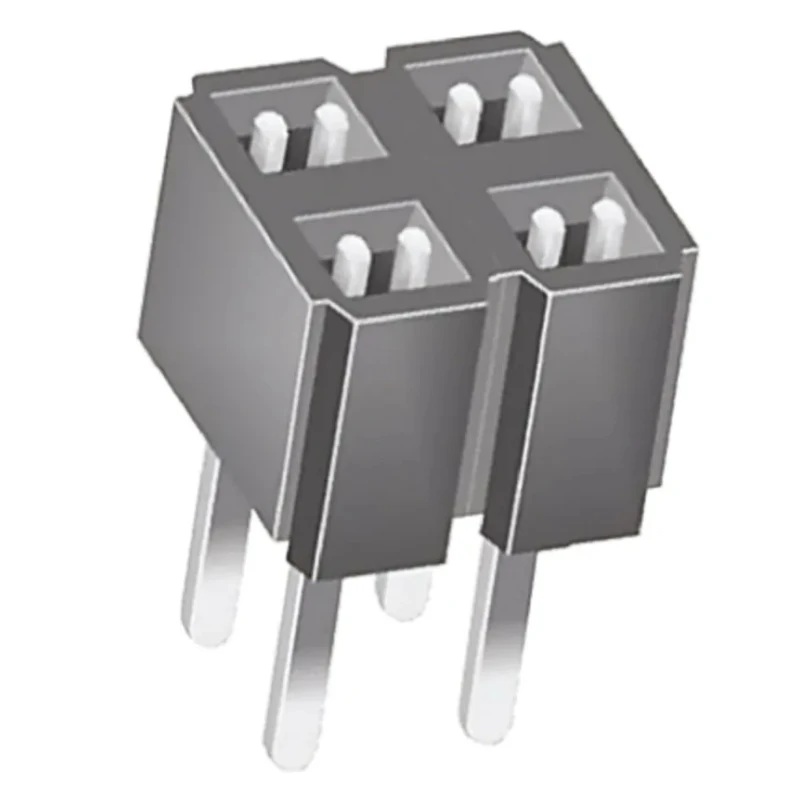

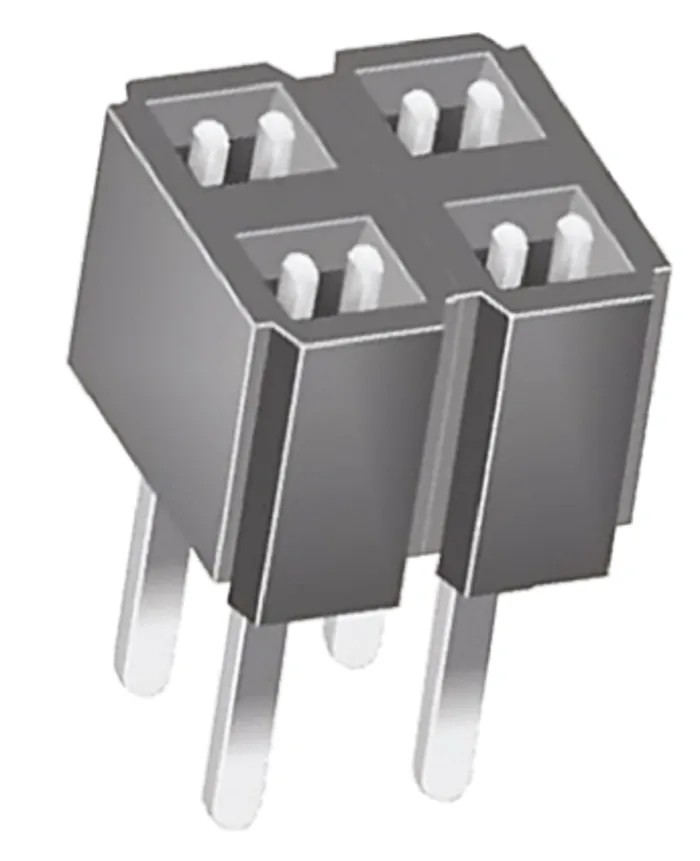

Samtec CES Series Straight Through Hole 4-Contact 2 Row 2.54 mm Pitch Board-to-Board PCB Socket CES-102-01-T-D

Samtec CES-102-01-T-D is a board-to-board PCB socket featuring 4 contacts arranged in 2 rows with a 2.54 mm pitch, designed for straight through hole solder mounting. This CES Series socket strip offers a durable black glass filled polyester housing combined with phosphor bronze contacts plated in matte tin for excellent corrosion resistance and conductivity.

The low profile design includes a 3.25 mm solder tail that facilitates efficient soldering onto PCBs. Electrical specifications include a 12A current rating and 333V voltage rating, suitable for various industrial and electronic manufacturing applications.

It performs reliably across a wide temperature range from -55°C to 105°C, making it suitable for industrial, electronic component assembly, and manufacturing environments requiring robust connectors under varying thermal conditions.

This connector mates with Samtec’s TLW, TSM, and TSW series low profile square post headers, supporting flexible board-to-board interconnections with minimized profile height. Low profile 2.54 mm pitch closed entry socket strips.

Black glass filled polyester housing for strength and durability. Phosphor bronze contact material with matte tin plating for reliable conductivity. Through hole solder termination mount type. Operating temperature from -55°C to 105°C for industrial resilience.

Rated for 12A current and 333V voltage capacity. RoHS compliant ensuring environmental and safety standards. Mates with TLW, TSM, and TSW header series for versatile applications.

Ideal for electronic manufacturing, PCB assembly, and industrial electronics applications, this PCB Socket supports enhanced electrical performance and mechanical stability. Explore our range of connectors and PCB components for your project needs with EnvMart's trusted industrial electronic components selection.
