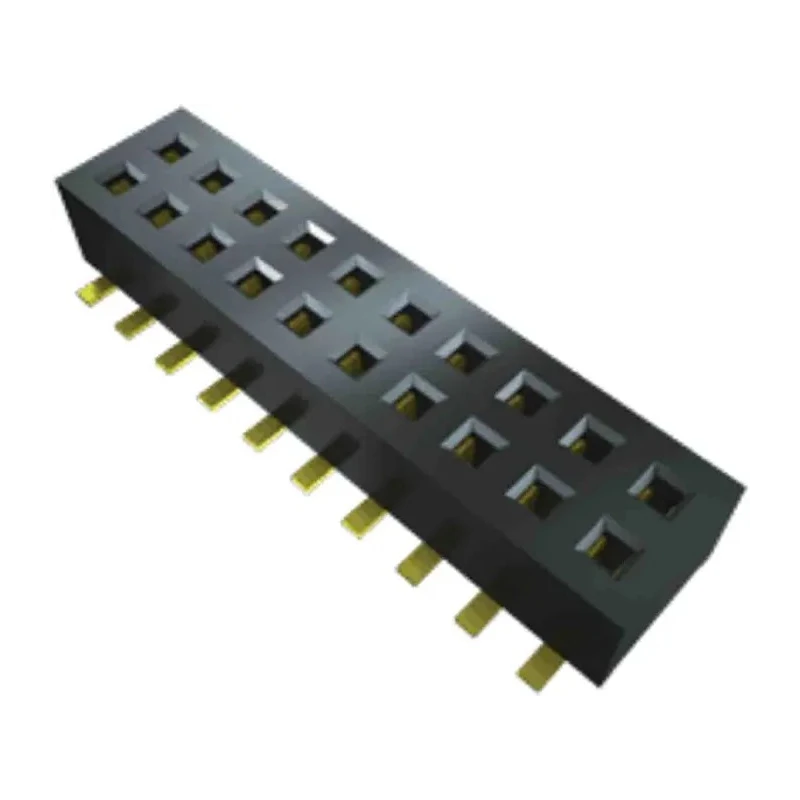

Samtec CLP Series Straight Surface PCB Socket 24-Contact 2 Row 1.27 mm Pitch Solder CLP-112-02-L-D-A

The Samtec CLP-112-02-L-D-A is a high-quality straight surface PCB socket in the CLP series, engineered for reliable board-to-board interconnections with 24 contacts arranged in 2 rows at a 1.27 mm pitch. It is designed for surface mounting applications where dependable mechanical and electrical connection is critical.

Constructed with a black liquid crystal polymer housing, this socket offers robust insulation and mechanical stability. The contacts are made from phosphor bronze, plated with a layer of gold over tin to ensure excellent electrical conductivity and resistance to corrosion, making it suitable for long-term use in demanding environments.

This PCB socket supports a current rating of 3.4 amps per pin, allowing it to handle moderate power levels typical of various electronic devices and assemblies. The operating temperature range from -55°C up to 125°C enables this component to function effectively in diverse industrial, manufacturing, laboratory, and electronic prototyping conditions.

The straight orientation and dual wipe Tiger Claw contact system ensure consistent contact force and signal integrity over numerous mating cycles, reducing risks of intermittent connections. It meets RoHS compliance requirements, ensuring the component is manufactured without hazardous substances.

Applications include usage in industrial electronic assemblies, electronic manufacturing, repair, prototyping, and other scenarios requiring rugged and precise PCB-to-PCB connections.

Surface mount PCB socket with 24 contacts and 2 rows. Housing is made of black liquid crystal polymer for excellent insulation. Phosphor bronze contact material plated in gold over tin. 3.4A current rating at each contact point.

Operating temperature range from -55°C to +125°C. Straight orientation with dual wipe Tiger Claw contact system. RoHS compliant for environmentally safe usage. Ideal for industrial, laboratory, manufacturing, and electronic prototyping applications.
