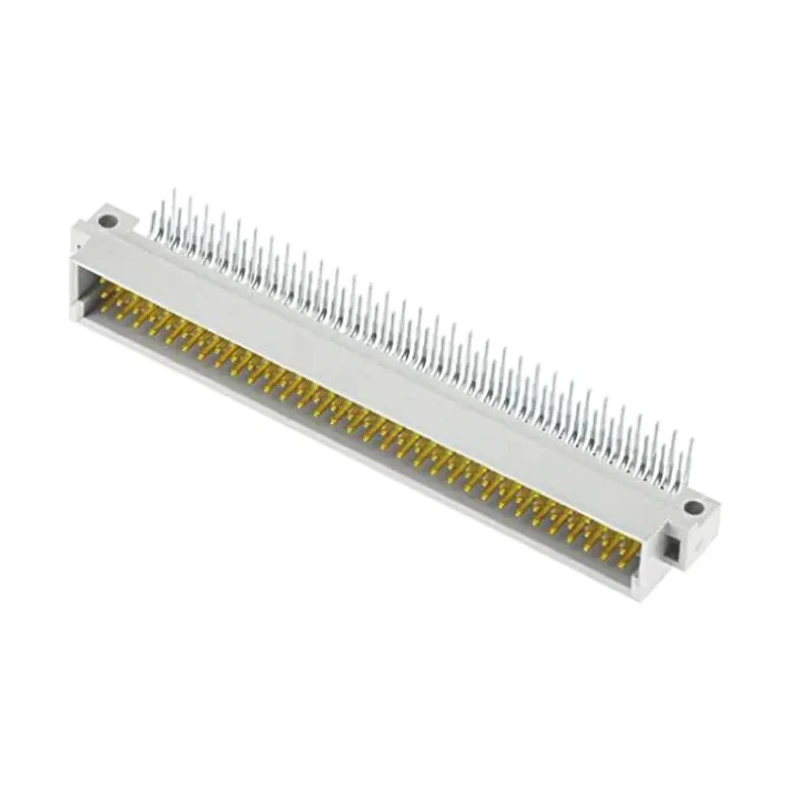

HARTING DIN 41612 Rectangular Connector 96 Way 2.54 mm Pitch, Type C, Solder Termination, 3 Row Male, Right 09031962921222

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 Rectangular Connector 96 Way 2.54 mm Pitch, Type C, Solder Termination, 3 Row Male, Right 09031962921222

Name: HARTING DIN 41612 Rectangular Connector 96 Way 2.54 mm Pitch, Type C, Solder Termination, 3 Row Male, Right 09031962921222
Brand: HARTING
SKU: 104668
Price: 11.98 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Right Angle
Current	2A
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	96
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	20mΩ

Key Features

Constructed with durable thermoplastic housing and copper alloy contacts.
Operates reliably within temperature range of -55°C to 125°C.
Features a maximum contact resistance of 20 milliohms for excellent conductivity.
Supports a current rating of 2 amperes suitable for backplane applications.
Connector gender is male with a right angle orientation for efficient PCB layout.
Designed for economic and robust electronic signal connector applications.
Contact plating is tin for corrosion resistance and solder termination type for secure assembly.
Complies with DIN 41612 series standards but has no additional approvals listed.

Product Description

HARTING 09031962921222 DIN 41612 Rectangular Connector is a high-performance electronic component designed for PCB backplane signal connections. This connector features a 96 way contact configuration with a 2.54 mm pitch in a Type C form factor, ensuring compatibility with a range of electronic systems requiring reliable and economical signal transmission.

The connector is fabricated from high-quality thermoplastic housing combined with copper alloy contacts plated with tin, guaranteeing durability and excellent electrical conductivity. It is designed with a solder termination type, facilitating secure and stable installation on printed circuit boards.

Operating within a wide temperature range from -55°C up to 125°C, it is suitable for industrial and electronic environments that demand resilience to thermal variations. With a current rating of 2 amperes and a maximum contact resistance of 20 milliohms, this connector ensures efficient electrical performance and minimal signal loss.

This right angle, male connector employs a three-row layout for maximal contact density and effective space utilization on circuit boards, making it ideal for backplane and rack interconnection systems such as those conforming to the DIN 41612 series standards.

Manufactured in Germany, this component meets stringent quality and manufacturing standards, providing engineers and technicians with a reliable solution for electronic equipment assemblies in industrial, telecommunications, computing, and signal processing applications.

Durable thermoplastic housing and copper alloy contacts ensure longevity. Wide operating temperature range from -55°C to 125°C supports diverse environments. Solder termination type for secure and reliable PCB connections.

Right angle orientation facilitates compact PCB layouts. 96 way contact configuration in a 3-row Type C format allows high-density signal connections. Current rating of 2A suited for backplane and rack connectors. Tin plated contacts improve corrosion resistance and solderability.

Backplane connector suitable for electronics, laboratory, industrial, and manufacturing applications. Meets DIN 41612 series standards ensuring compatibility with Eurocard racking systems. Manufactured in Germany guaranteeing high-quality and reliability.

Explore more high-quality connectors and electronic components from the DIN 41612 range on EnvMart for your industrial, commercial, and manufacturing needs.

Explore more products in our DIN 41612 Connector category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a 96 way contact configuration arranged in a 3-row layout, suitable for high-density signal connections.

The pitch for this connector is 2.54 mm, which is standard for many electronic applications.

It can operate reliably within a temperature range from -55°C to 125°C, making it suitable for various industrial environments.

The connector supports a current rating of 2 amperes, making it suitable for backplane applications.

It employs a solder termination type, which facilitates secure and stable installation on printed circuit boards.

The housing is made from thermoplastic, while the contacts are made from copper alloy and plated with tin for corrosion resistance.

The maximum contact resistance is 20 milliohms, ensuring efficient electrical performance and minimal signal loss.

This connector has a right angle orientation, which allows for efficient PCB layout and space utilization.

It is manufactured in Germany, adhering to stringent quality and manufacturing standards.

It complies with the DIN 41612 series standards, ensuring compatibility with Eurocard racking systems.

This model is suitable for applications in electronics, telecommunications, computing, and signal processing, particularly in backplane and rack interconnection systems.
