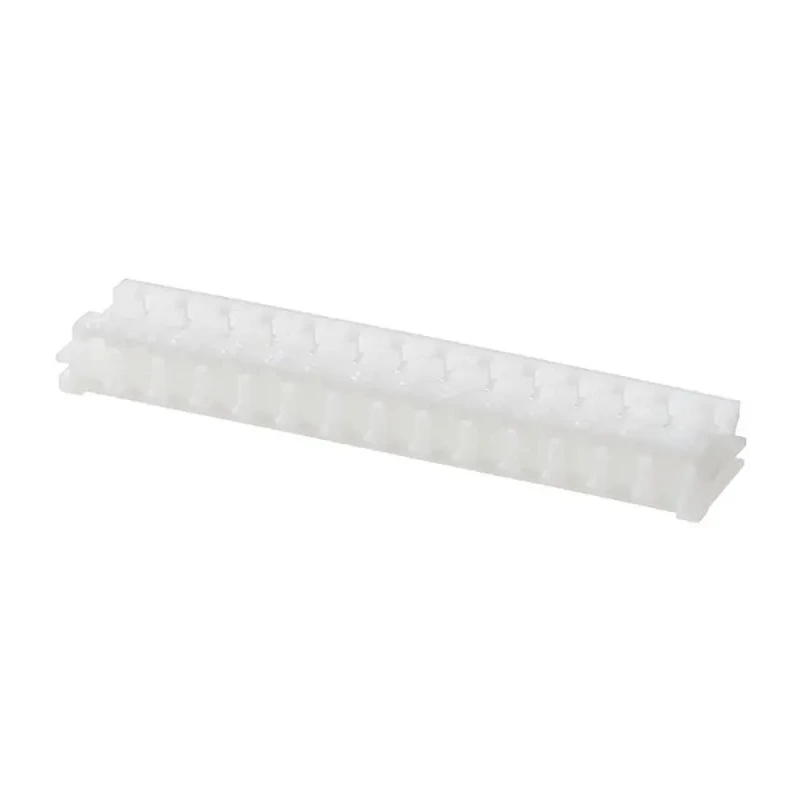

JST EH Female Connector Housing 2.5 mm Pitch 14 Way 1 Row Straight EHR-14

Free Delivery in India | Lowest Global Shipping Charges

JST EH Female Connector Housing 2.5 mm Pitch 14 Way 1 Row Straight EHR-14



Category Connector Housing Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Orientation	Straight
Length	37mm
Model	EHR-14
Width	3.8mm
Mount Type	Cable
Housing Material	Nylon
Series	EH
Number of Rows	1
Pitch	2.5mm
For Use With	Disconnectable Crimp Connector
Number of Contacts	14
Connector Gender	Female

Key Features

The EH series offers slim, compact 2.5 mm pitch socket housings ideal for high density PCB connections.
The housing ensures low contact resistance and high reliability in electrical connections.
Compatible with crimp-style or insulation displacement HR connectors.
Constructed of durable nylon housing material for mechanical strength and insulation.
Features polarising guides to ensure correct mating and connection security.
Measures 37 mm in length with a width of 3.8 mm for compact integration.
Ideal for use in electronics, power, and connector applications requiring reliable female housing.
Designed with a single row, accommodating 14 contacts for versatile wiring needs.

Product Description

JST EHR-14 female connector housing is a 2.5 mm pitch, 14-contact, single-row, straight orientation connector housing designed for cable mounting applications. It belongs to the EH series known for its slim and compact design which supports high-density electrical connections on printed circuit boards and wiring harnesses.

This connector housing provides excellent electrical reliability and low contact resistance by efficiently housing crimp-style or insulation displacement HR connectors. The nylon housing material offers mechanical robustness and insulation properties, ensuring long-term durability in demanding industrial and electronic environments.

With a length of 37 mm and width of 3.8 mm, the connector housing supports compact and efficient designs suitable for various electronics, power connectors, and industrial equipment applications. The product features polarising guides to prevent incorrect mating and ensure secure connections, enhancing system safety and reliability.

The straight orientation facilitates convenient cable routing and simplifies assembly processes. The 14-way, single-row configuration accommodates multiple circuits in a streamlined form factor.

JST EH Female Connector Housings are widely used in industrial automation, consumer electronics, communication equipment, and power distribution systems where dependable connector housings are required to maintain signal integrity and electrical performance.

The EH series is characterized by its slim 2.5 mm pitch and compact footprint suitable for dense electronic assemblies. Nylon construction provides excellent insulation and mechanical stability. The product conforms to UL and CSA certification standards ensuring compliance and quality.

Designed for easy and effective cable termination with crimp or insulation displacement connectors. Polarizing features promote foolproof connection and prevent misalignment.

Choose the JST EHR-14 female connector housing for high-quality, reliable, and precisely engineered component solutions in electronic and electrical connector systems. Explore related products in the Connector Housing category at EnvMart for comprehensive component sourcing.
