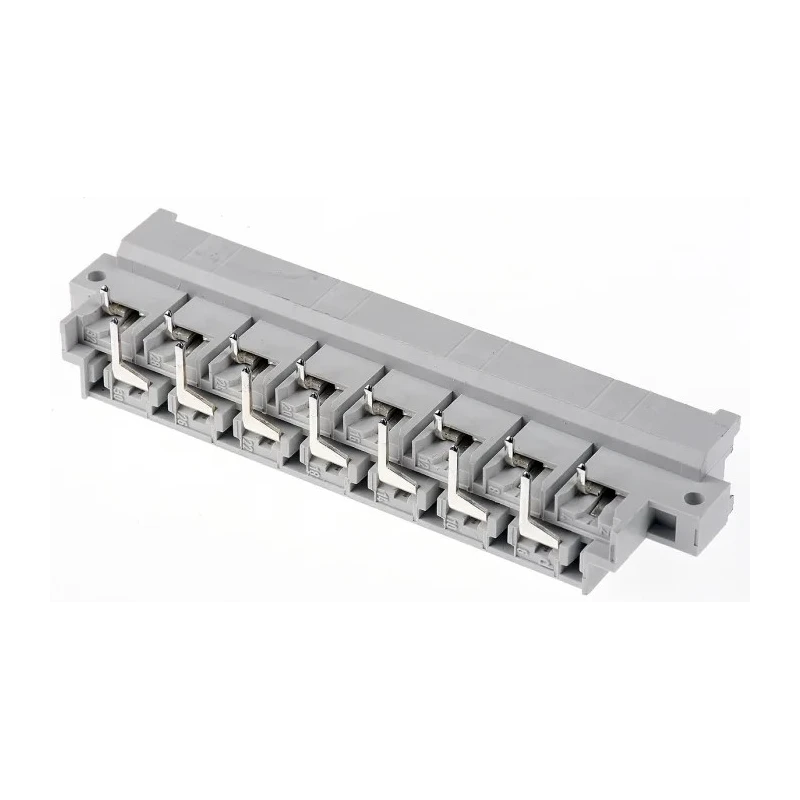

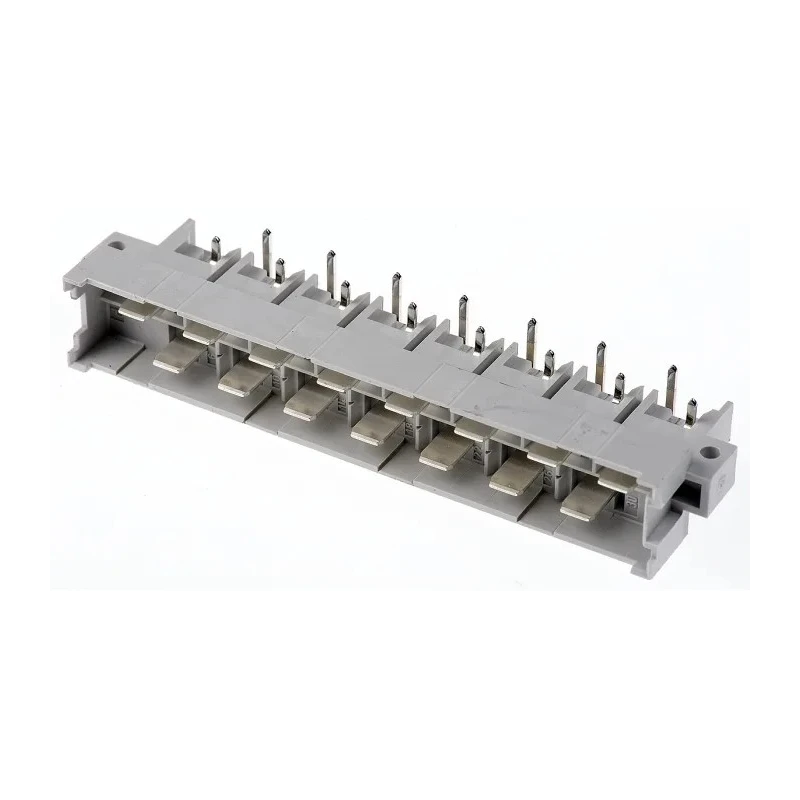

HARTING DIN 41612 15 Way 5.08 mm Pitch Board Connector Type H15 Solder Termination 2 Row Male Right Angle 09061152911222

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 15 Way 5.08 mm Pitch Board Connector Type H15 Solder Termination 2 Row Male Right Angle 09061152911222

Name: HARTING DIN 41612 15 Way 5.08 mm Pitch Board Connector Type H15 Solder Termination 2 Row Male Right Angle 09061152911222
Brand: HARTING
SKU: 104667
Price: 18.87 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	Romania
Brand	HARTING
Orientation	Right Angle
Current	15A
Mount Type	Board
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	H15
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	5.08mm
Contact Plating	Silver
Number of Contacts	15
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	8mΩ
469-522	90° PCB mounting with standard contacts
481-954	90° PCB mounting with one Leading Contact (LC) mates first on position z32
481-960	250 blade Plug has Leading Contact position z32 and is terminated with 6.3mm blades for 2.5mm2 wire, for 250 size receptacles (not shrouded)
740-6966	250 blade Plug standard contacts with 6.3mm blades for 2.5mm2 wire, for 250 size receptacles (not shrouded)

Key Features

The connector supports 15 contacts with a 2-row configuration.
It is rated for a current of 15A, suitable for robust power and signal transmission.
The contact material is copper alloy with hard silver plating for low resistance and durability.
The connector's thermoplastic housing is glass-fiber filled for enhanced mechanical strength.
Operating temperature ranges from -55°C up to 125°C, supporting harsh industrial environments.
Right angle board mount with solder termination ensures secure PCB integration.
The connector is compliant with DIN 41612 series standards, widely used in electronic and railway applications.
It offers a maximum contact resistance of 8 milliohms ensuring signal integrity.

Product Description

HARTING 09061152911222 DIN 41612 15 Way Board Connector is a type H15 male, 2 row, right angle rectangular connector with a 5.08 mm pitch, optimized for solder termination on boards. It features 15 silver-plated copper alloy contacts that provide excellent conductivity and low contact resistance up to 8mΩ.

The connector housing is constructed from glass fiber filled thermoplastic, offering robust mechanical protection suitable for demanding industrial, railway, and control card applications. The operating temperature range of -55°C to 125°C makes it suitable for harsh environments including transportation systems and industrial equipment.

This connector belongs to the DIN 41612 series, widely recognized for backplane and rack connectors, and supports current loads up to 15A. Its right angle orientation enables efficient PCB mounting, ensuring stable mechanical and electrical connections.

Key features include its solder termination type, which guarantees reliable electrical contact on PCB assemblies, making it ideal for power supplies, control cards, and railway electronics aligned with railway classification NFF 16-101.

Additional types within this series include variants with leading contacts and sizes for use with 6.3mm blades, suitable for heavier wire gauges, expanding the range of industrial applications.

The connector supports 15 contacts with a 2-row configuration. Rated current is 15A, ensuring performance under high current conditions. Contact plating is hard silver over copper alloy enhancing corrosion resistance. Thermoplastic, glass fiber filled housing provides durability and mechanical stability.

Operating temperature from -55°C to 125°C supports extreme environments. Solder termination for secure and long-lasting PCB assembly. Right angle orientation facilitates compact board layouts. Meets DIN 41612 standards widely used in electronics and railways.

This product is manufactured in Romania and is suitable for various industrial electronics, railway, and manufacturing applications requiring high reliability and durability. Explore our full range of DIN 41612 Connectors and rectangular connectors on EnvMart for your electronic component needs.
