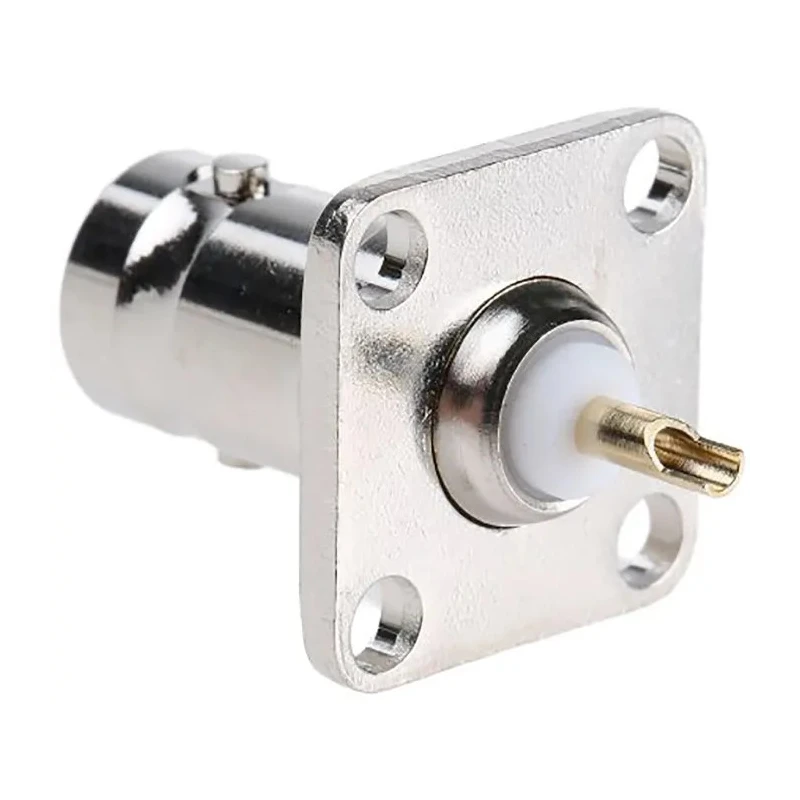

Telegartner Coaxial Connector BNC Series Flange Mount Female 75 Ω Straight Body Solder J01003A1937
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01003A1937 |
| Mount Type | Flange |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | BNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Features a flange mount design for stable panel installation.
- Supports 75 Ω impedance ensuring signal integrity.
- Nickel plated body for corrosion resistance.
- Gold plated beryllium copper alloy contacts for excellent conductivity.
- Operates reliably from -65°C to 165°C temperature range.
- Supports frequencies up to 4 GHz for high performance.
- Simple bayonet coupling mechanism for quick connect/disconnect.
- IP54 rated between mated plug and jack for environmental protection.
Product Description
Telegartner J01003A1937 Coaxial Connector BNC Series Flange Mount Female 75 Ω is a precision RF connector designed for reliable signal transmission in electronic and telecommunications applications. The straight body with flange mount enables firm panel mounting. Its construction includes a nickel-plated body and gold-plated beryllium copper alloy contacts, ensuring durability and low signal loss.
This connector supports a 75 Ω impedance and operates up to 4 GHz frequency, making it suitable for high-frequency applications. The operating temperature range of -65°C to 165°C ensures performance under harsh conditions.
Designed with a simple and robust bayonet coupling mechanism, this connector allows for fast connection and disconnection with just a quarter turn. Additionally, it has an IP54 rating between mated plug and jack, offering resistance to dust and water ingress for enhanced reliability.
Typical applications include signal, data, and video transmission in industrial, telecommunications, and laboratory environments. The female contact gender and solder termination provide versatility for integration into various systems.
Manufactured in Germany, this Telegartner coaxial connector represents high quality and compliance with industry standards. Flange mount panel installation for stable and secure fitting. 75 Ω impedance ensuring minimal signal distortion.
Beryllium copper alloy with gold plating contacts for superior conductivity. Nickel plated body for enhanced corrosion protection. Operational temperature range from -65°C to 165°C. Supports frequencies up to 4 GHz for broadband applications.
Bayonet coupling method simplifies maintenance and installation. IP54 rated for protection against environmental factors. Ideal for signal, data, and video transmission systems. Explore our extensive range of high-quality Coaxial Connectors and components at EnvMart to meet your industrial, laboratory, and communication needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Telegartner BNC coaxial connector has an impedance of 75 Ω, ensuring minimal signal distortion during transmission.
This model supports frequencies up to 4 GHz, making it suitable for high-frequency applications.
It operates reliably within a temperature range of -65°C to 165°C.
The connector features a solder termination type, allowing for secure connections in various systems.
The contacts are made of beryllium copper alloy and are gold plated for excellent conductivity.
It features a flange mount design, which allows for stable panel installation.
The body of the connector is nickel plated, providing enhanced corrosion resistance.
This model has a female contact gender, suitable for connecting with male counterparts.
It has an IP54 rating between mated plug and jack, offering protection against dust and water ingress.
The connector has a straight orientation, facilitating straightforward installation and connection.
This coaxial connector is manufactured in Germany, ensuring compliance with industry standards.
It is suitable for signal, data, and video transmission in industrial, telecommunications, and laboratory environments.
