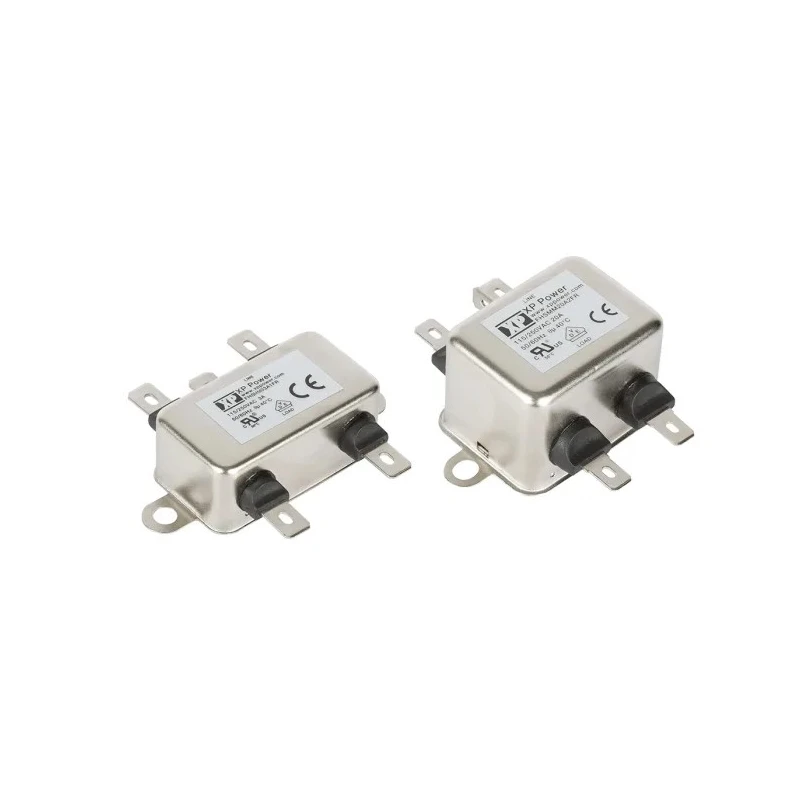

XP Power Chassis Mount EMI Filter 1A 264V AC 0Hz to 400Hz Quick Connect Single Phase FHSM01A1FR FHSMM01A1FR

The XP Power FHSMM01A1FR is a chassis mount EMI filter designed for precision filtering in sensitive electronic environments, including medical equipment. This filter provides a maximum current rating of 1 Ampere at a voltage of 264V AC, covering an operating frequency range from 0 Hz to 400 Hz. Its single-phase, single-stage design ensures effective attenuation of electromagnetic interference on power lines.

The filter is housed in a compact and robust metal chassis mounting enclosure, featuring a shielded body that reduces electromagnetic leakage. It includes a bleed resistor for discharging filter capacitors safely when power is disconnected. Input and output terminations are via 6.3 x 0.8 mm Faston quick connect terminals, facilitating easy installation near the mains cable entry to minimize radiated emissions.

This unit supports a wide operating temperature range from -40°C minimum to a maximum of 110°C, with full power operation maintained up to 50°C ambient temperature. It exhibits an earth leakage current as low as 5μA at 250 VAC, making it well-suited for critical applications where leakage must be minimized, such as in medical equipment.

Additional features include a capacitance of 0.1μF and a compact form factor with dimensions of 44 mm length, 17.5 mm height, and 25.2 mm depth. The product complies with no specific standards or approvals but is built to high-quality manufacturing standards in China, and it comes with a 3-year warranty for reliability assurance.

Compact metal chassis design suitable for medical and industrial use. Low earth leakage of 5μA ensures safety and compliance with stringent requirements. Faston quick connect terminals ease installation processes. Wide temperature range supports diverse environmental conditions.

Shielded body reduces EMI emissions effectively. Includes bleed resistor for capacitor discharge safety. High current rating of 1A at 264V AC is appropriate for many power-line filtering needs. Single-phase, single-stage filter optimized for sensitive equipment protection.

Reliable Chinese manufacturing with a warranty period of 3 years.

This EMI filter is ideal for use in industrial, medical, HVAC systems, manufacturing facilities, and other electronic applications where power line noise suppression is critical. For more electronic components and EMI Filtering solutions, browse our Power Line Filters category at EnvMart.
