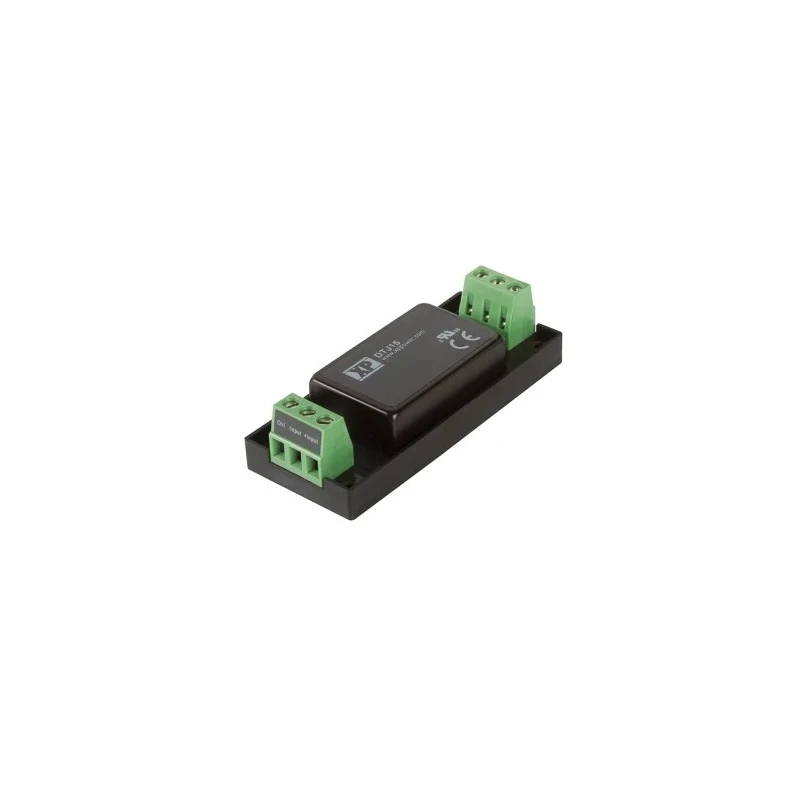

XP Power DC/DC Converter 15V DC 1A 15W Chassis Mount Wide Input 9-36V DTJ15

XP Power DTJ15 DC/DC Converter is a high-performance power supply module engineered for industrial and commercial applications requiring reliable 15V DC output at 1 Amp from a wide input voltage range of 9V to 36V DC. The chassis mount device features a robust copper case construction and encapsulated package type designed to ensure durability and efficient heat dissipation in demanding environments.

This converter offers an input ratio of 4:1 with nominal inputs of 12V, 24V, and 48V DC and achieves a maximum output power of 15 Watts with an efficiency rating of 88%. It is engineered to maintain full power operation up to 80°C and functions reliably within an ambient temperature range spanning from -40°C to 100°C.

Built with comprehensive protective features such as short circuit protection, input reverse polarity protection, and soft start, the DTJ15 enhances system safety and reliability. Its 3kV DC electrical isolation supports safe integration in complex electronic setups. The unit delivers a regulated single output of 15V DC at 1 Amp with low ripple and noise levels of 60mV peak-to-peak, making it ideal for sensitive electronic equipment.

The six-pin design and chassis mounting make installation straightforward and adaptable to various industrial systems. Additional features include remote on/off and voltage trim allowing fine tuning and control tailored to specific operational requirements. With an MTBF of over 4 million hours per MIL-HDBK-217F standards and a 3-year warranty, this converter promises longevity and reliability.

Applications include industrial automation, instrumentation, control systems, communications, and other environments demanding stable DC power solutions under varying conditions. Country of origin is Taiwan, Province Of China.

Operates with input voltage range from 9V to 36V DC for versatile use. Delivers regulated single output voltage of 15V DC at 1 Amp current capacity. Compact chassis mount design for easy industrial integration. High efficiency of 88% ensuring minimal energy loss during operation.

Incorporates protection features including short circuit, input reverse polarity, and soft start. Operating temperature range from -40°C up to 100°C suitable for harsh environments. Electrical isolation of 3kV DC enhances safety and reliability.

Low ripple and noise with 60mV peak-to-peak for stable output. Constructed with copper case for durable performance and heat dissipation. Includes remote on/off and voltage trim functionality for flexible control. Explore more power conversion products in the DC/DC Converter category at EnvMart for trusted components supporting diverse electronic needs.
