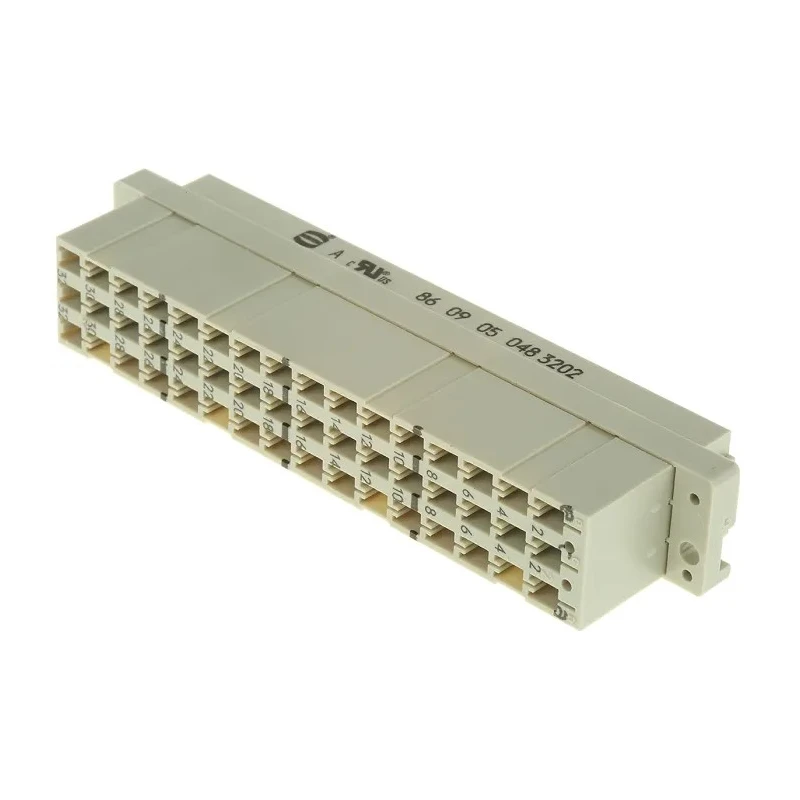

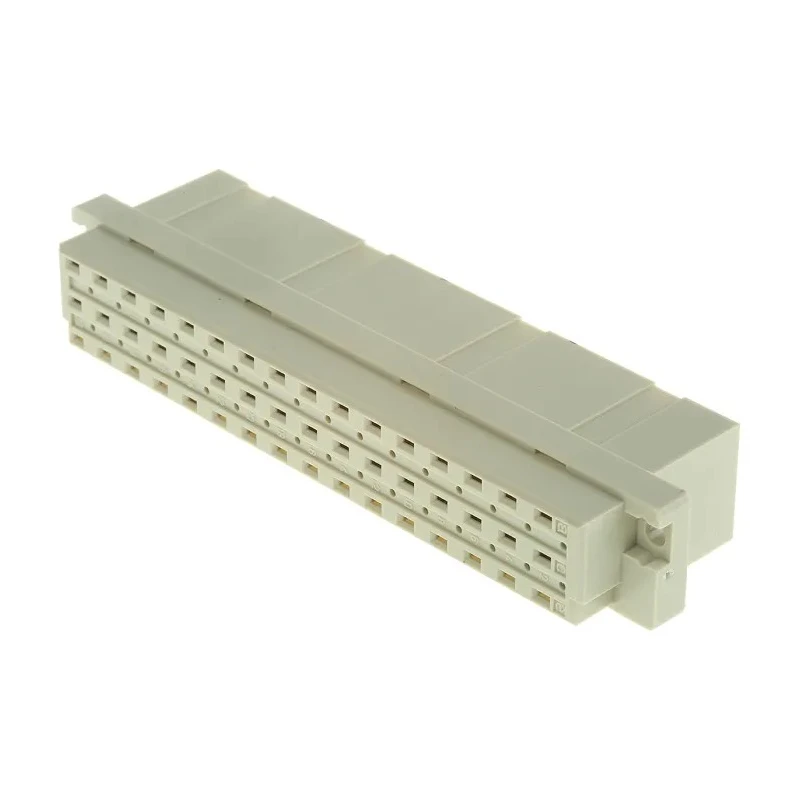

HARTING DIN 41612 48 Contacts 5.08 mm Pitch Type E 3 Row Female Straight Crimp Connector 09050483202
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 6A |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 09 05 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Type E |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 5.08mm |
| Contact Plating | Polycarbonate |
| Number of Contacts | 48 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/C/E |
Key Features
- Designed with a Type E sub type and 3 row female straight configuration.
- Termination type is crimp ensuring durable and secure connections.
- Supports current up to 6A per contact suitable for power supply applications.
- Constructed with copper alloy contacts and polycarbonate plating for enhanced conductivity and durability.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Housing made of thermoplastic material for ruggedness and insulation.
- Maximum contact resistance is 20 milliohms assuring low signal loss.
- Compliant with DIN 41612 connector standards, ideal for backplane and rack integration.
Product Description
HARTING 09050483202 DIN 41612 Connector offers a high-quality connector solution featuring 48 contacts arranged in a 3 row female straight crimp termination style with a 5.08 mm pitch. Designed for demanding industrial environments, this connector is built to enable reliable power and signal transmission across board-to-board assemblies.
The Type E housing is thermoplastic, glass fibre filled, ensuring mechanical durability and electrical insulation. The copper alloy contacts plated with polycarbonate reduce contact resistance to a maximum of 20 milliohms, enhancing performance and longevity. This connector supports currents up to 6A per contact, suitable for power applications and control cards.
Operating in a wide temperature range from -55°C to 125°C, it provides robustness for harsh environmental conditions including railway transportation. Harting DIN 41612 connectors have a long mating lifecycle, making them reliable for repeated cycles in industrial equipment.
These connectors comply with DIN 41612 standards and are part of the Type E series optimized for power supply connections and rugged industrial use cases. Manufactured in Germany, they offer superior quality and adherence to industrial norms.
Designed with a Type E sub type and 3 row female straight configuration. Termination type is crimp ensuring durable and secure connections. Supports current up to 6A per contact suitable for power supply applications. Constructed with copper alloy contacts and polycarbonate plating for enhanced conductivity and durability.
Operates reliably in temperatures ranging from -55°C to 125°C. Housing made of thermoplastic material for ruggedness and insulation. Maximum contact resistance is 20 milliohms assuring low signal loss. Compliant with DIN 41612 connector standards, ideal for backplane and rack integration.
Manufactured in Germany ensuring quality and precision engineering. Suitable for industrial, railway transportation, and power supply board-to-board connections.
This product is ideal for industrial, manufacturing, and transportation sectors requiring durable high current connectors. Explore more DIN 41612 Connectors and related electronic components on EnvMart for your assembly and repair needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 6A per contact, making it suitable for power supply applications.
The contacts in this connector are arranged with a pitch of 5.08 mm.
The housing is made of thermoplastic material, while the contacts are constructed from copper alloy and plated with polycarbonate.
It operates reliably within a temperature range of -55°C to 125°C.
This connector features a total of 48 contacts arranged in a 3-row configuration.
It utilizes a crimp termination type, ensuring durable and secure connections.
The maximum contact resistance is 20 milliohms, which helps in minimizing signal loss.
Yes, it is compliant with DIN 41612 connector standards, making it suitable for backplane and rack integration.
This connector has a straight orientation.
This product is manufactured in Germany.
It is ideal for industrial, manufacturing, and transportation sectors requiring durable high current connectors.
This model belongs to the Type E series of DIN 41612 connectors.
