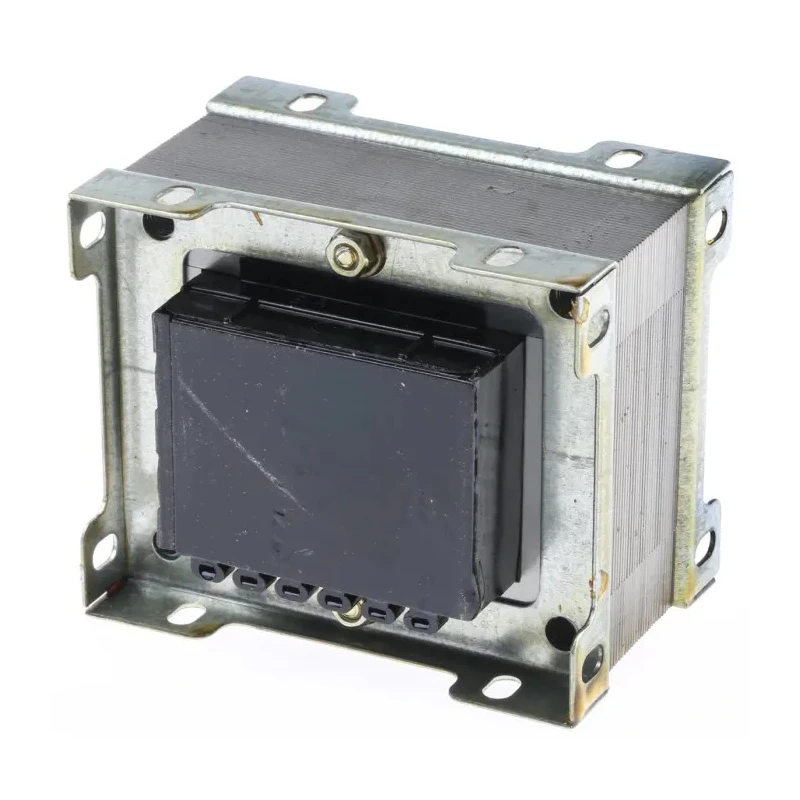

RS PRO 2 Output 100 VA Chassis Mount Transformer, 230 V ac Primary, 24 V ac Secondary, AS/NZS 61558.1, CE, RoHS 504-319

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 2 Output 100 VA Chassis Mount Transformer, 230 V ac Primary, 24 V ac Secondary, AS/NZS 61558.1, CE, RoHS 504-319

Name: RS PRO 2 Output 100 VA Chassis Mount Transformer, 230 V ac Primary, 24 V ac Secondary, AS/NZS 61558.1, CE, RoHS 504-319
Brand: RS PRO
SKU: 164182
Price: 111.09 USD
Availability: InStock



Category Chassis Mount Transformer Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Brand	RS PRO
Length	89mm
Model	504-319
Depth	75mm
Gross Weight	1.6kg
Width	68mm
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	2
Primary Voltage	230 V ac
Secondary Voltage	24 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Walsall Transformers 100VA 2 Output Chassis Mounting Transformer, 15V acBrand	Walsall Transformers

Key Features

Power rating of 100 VA suitable for various electronic applications.
Dual independent secondary windings with 24 V ac output voltage.
Operates reliably between -30°C to 70°C operating temperature range.
Complies with AS/NZS 61558.1, CE, RoHS, IEC/BS/EN 61558-2-6 standards.
Compact chassis mount design measuring 89mm length, 68mm width, and 75mm depth.
Robust construction with clamp and frame for secure installation.
Suitable for 50Hz to 60Hz operating frequency.
Fully tested to ensure electrical safety and performance.

Product Description

RS PRO 504-319 is a high-quality chassis mount transformer with a power rating of 100 VA designed for industrial and electronic applications requiring stable dual output voltages. It features a primary voltage rating of 230 V ac and dual secondary outputs delivering 24 V ac. This unit complies with crucial international standards such as AS/NZS 61558.1, CE marking, RoHS, and IEC/BS/EN 61558-2-6 ensuring safety and environmental compliance.

The transformer is constructed with a durable chassis mount clamp and frame design, allowing secure mechanical fixing in various industrial and commercial equipment. Its dimensions of 89mm length, 68mm width, and 75mm depth provide a compact footprint suitable for constrained spaces.

Operating comfortably in temperatures ranging from -30°C to 70°C and supporting frequency ranges from 50 to 60 Hz, this transformer offers reliable performance in diverse environmental conditions. The unit undergoes full electrical and flash testing, guaranteeing safety and functionality according to BS3535 and EN 60742 standards.

The dual independent secondary windings allow for flexible wiring configurations, connected in series or parallel to achieve required output voltages or currents, broadening its application scope in power supply circuits and control systems.

Manufactured in Poland under stringent quality protocols, this RS PRO Chassis Mount Transformer is ideal for use in industrial machinery, power supply units, HVAC systems, and laboratory equipment, providing dependable voltage transformation with safety certifications.

Power rating of 100 VA ensuring sufficient load capacity. Dual 24 V ac secondary outputs for versatile electrical configurations. Wide operating temperature range supports diverse environments. Compact chassis design for space efficient mounting.

Compliance with international safety and environmental standards. Fully tested to ensure reliable electrical performance. Manufactured in Poland with high-quality materials. Suitable for industrial, laboratory, HVAC, and manufacturing use cases.
