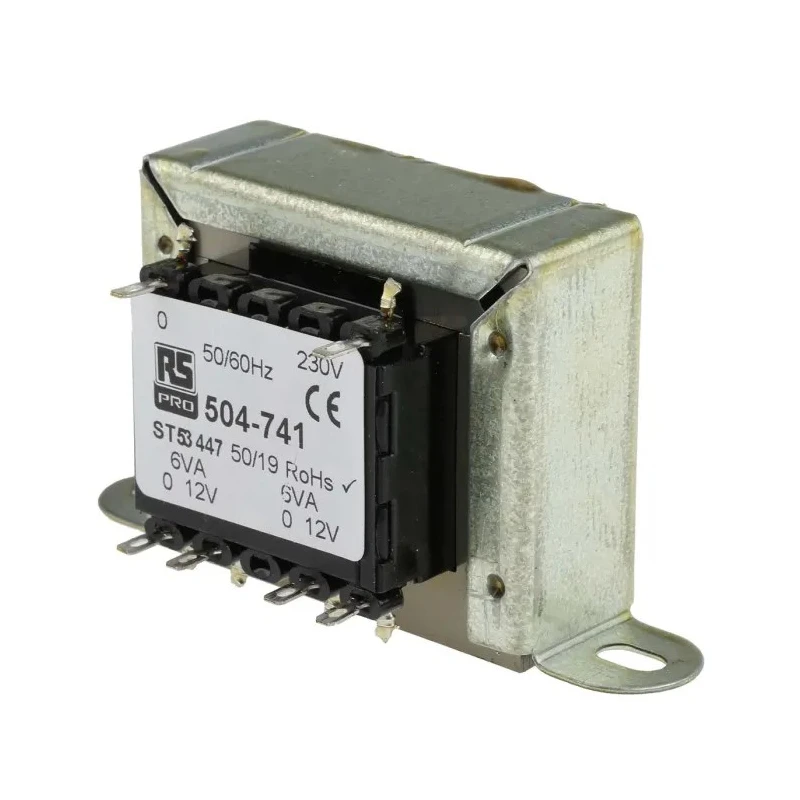

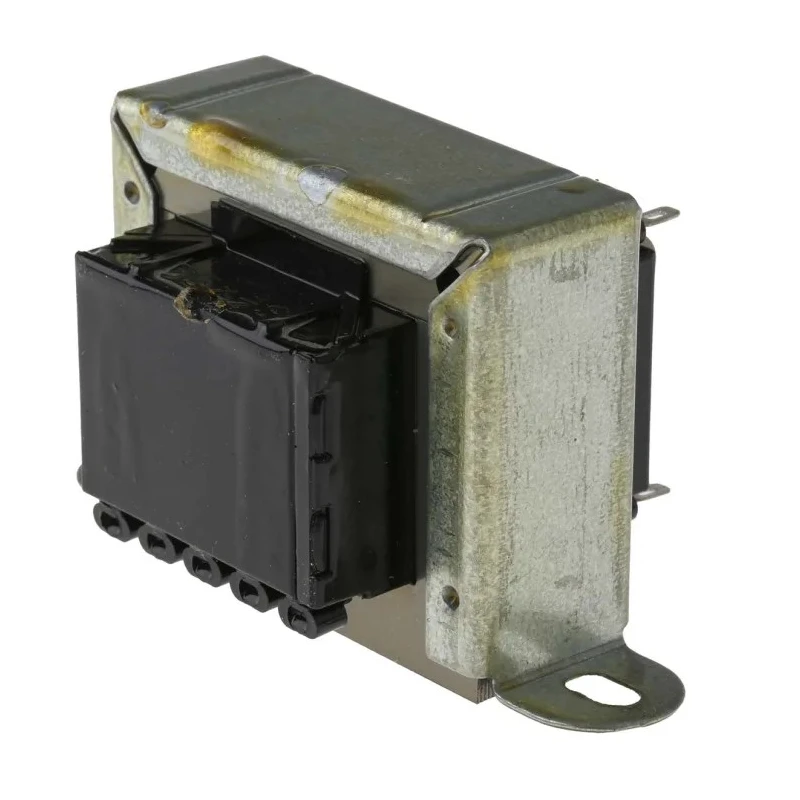

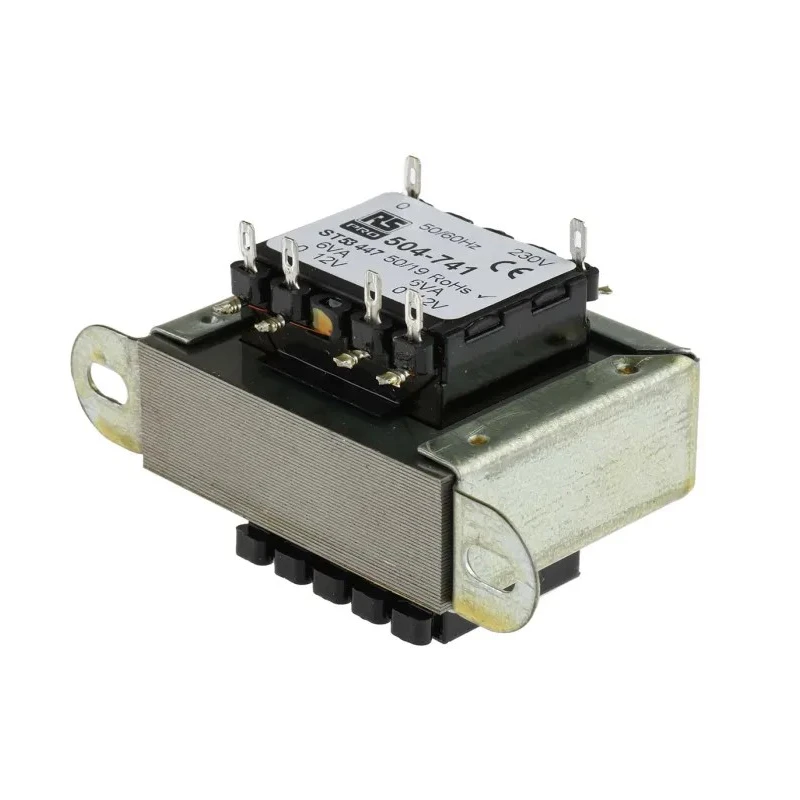

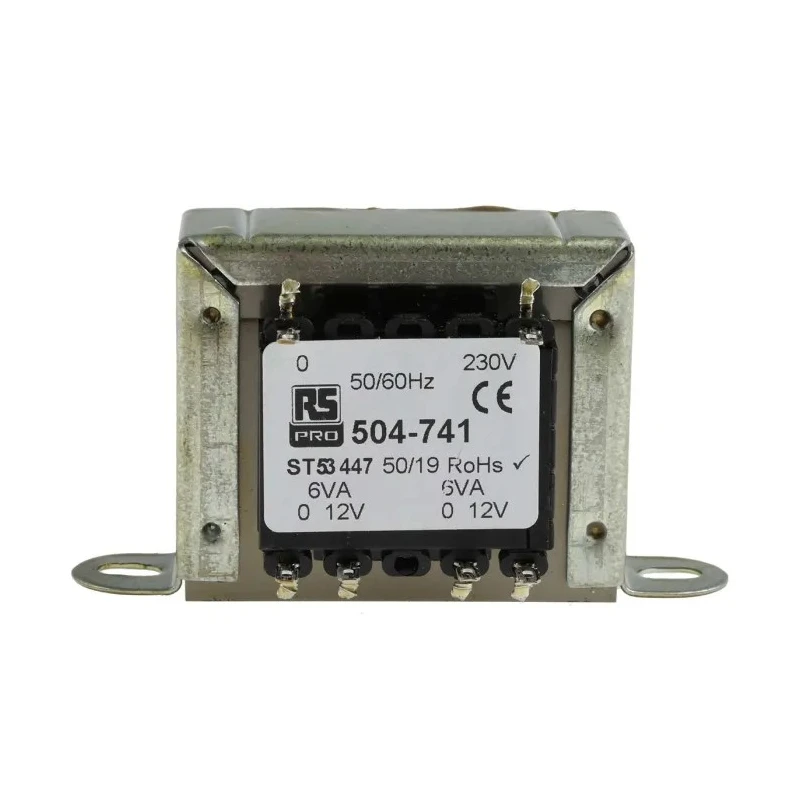

RS PRO 2 Output 12 VA Chassis Mount Transformer 230 V ac Primary, 12 V ac Secondary, AS/NZS 61558.1, RoHS, CE 504-741

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 2 Output 12 VA Chassis Mount Transformer 230 V ac Primary, 12 V ac Secondary, AS/NZS 61558.1, RoHS, CE 504-741

Name: RS PRO 2 Output 12 VA Chassis Mount Transformer 230 V ac Primary, 12 V ac Secondary, AS/NZS 61558.1, RoHS, CE 504-741
Brand: RS PRO
SKU: 164246
Price: 38.53 USD
Availability: InStock



Category Transformer Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Brand	RS PRO
Length	59mm
Model	504-741
Depth	50mm
Gross Weight	210g
Width	50mm
Maximum Operating Temperature	130°C
Minimum Operating Temperature	-30°C
Number of outputs	2
RS Stock No.	504-741Brand: RS PRO
Primary Voltage	230 V ac
Secondary Voltage	12 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Walsall Transformers 12VA 2 Output Chassis Mounting Transformer, 12V acBrand	Walsall Transformers

Key Features

Constructed with fully shrouded double section bobbin for safety.
Features a chassis mount design with wrap-over clamps for secure installation.
Supports primary voltage of 230 V ac and secondary voltage of 12 V ac outputs.
Operates within a temperature range of -30°C to 130°C for durability.
Complies with AS/NZS 61558.1, RoHS, CE, and IEC/BS/EN standards for quality assurance.
Designed with solder tag terminations and 100% electrical flash testing.
Magnetic field links primary and secondary for efficient performance.
Ideal for use in electromagnetic, relay, pump, speed changer, and heating element applications.

Product Description

RS PRO 504-741 is a high-quality 2 output chassis mount transformer rated at 12 VA with a primary voltage of 230 V ac and secondary outputs of 12 V ac. Designed to meet stringent industry standards including AS/NZS 61558.1, RoHS, CE, and IEC/BS/EN, this transformer offers exceptional reliability for electronic and electrical control systems.

The chassis mount configuration features a robust clamp construction with double section bobbin insulation fully shrouded for safety. The device is impregnated with varnish ensuring enhanced durability and resistance to environmental wear. It operates effectively across a wide temperature range from -30°C to 130°C, suitable for diverse industrial applications.

The transformer includes two secondary windings which can be connected in series or parallel to deliver versatile voltage and current outputs. Terminations are facilitated via solder tags, and each unit undergoes 100% electrical and flash testing compliant with BS3535 and EN 60742 regulations ensuring quality and safety.

Typical uses include electromagnetic applications, relays, pumps, speed changers, and heating elements in industrial, laboratory, manufacturing, HVAC, and commercial sectors. The product is manufactured to provide mains isolation with minimal electrical noise and high efficiency.

Package includes the transformer with the option of terminal shrouds for added protection (sold separately). The permanent label on the transformer details technical specifications for easy identification.

Constructed with fully shrouded double section bobbin for enhanced safety. Chassis mount design with secure wrap-over clamps. 12 VA power rating with 230 V ac primary and dual 12 V ac secondary outputs. Wide operating temperature range of -30°C to 130°C.

Complies with international safety and performance standards including RoHS and CE. Solder tag terminations and 100% electrical flash tested. Flexible connection options via series or parallel wiring of secondary windings.

Suitable for use in electromagnetic relays, pumps, speed changers, and heating elements. Discover more products in the RS PRO range or explore the Electronics & Electricals category at EnvMart for industrial-grade Transformers and components.
