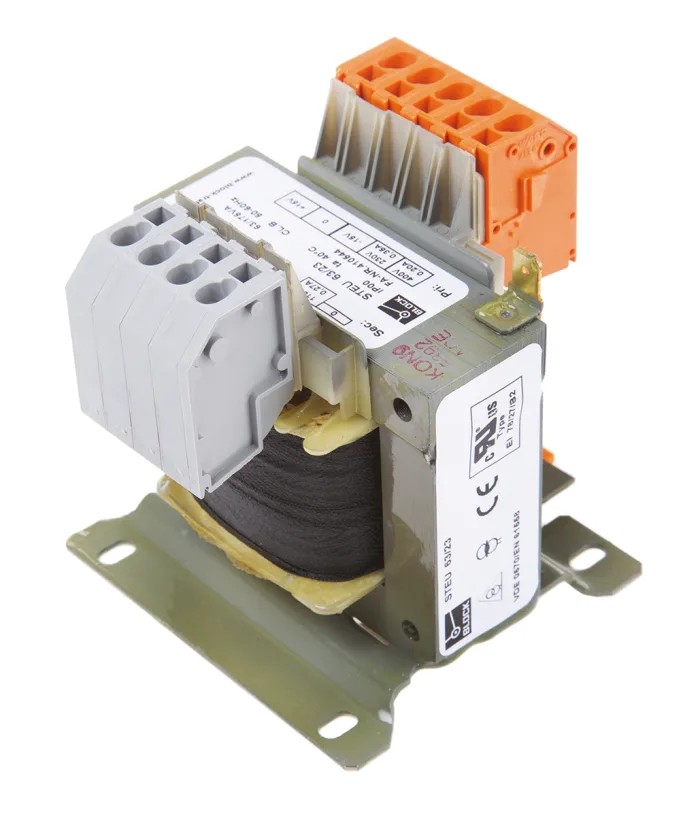

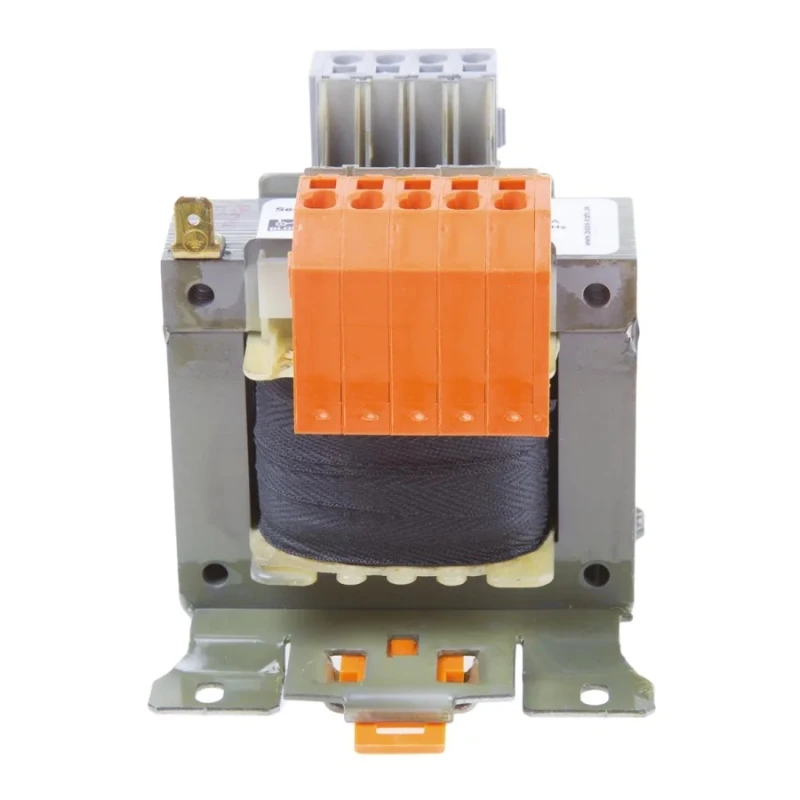

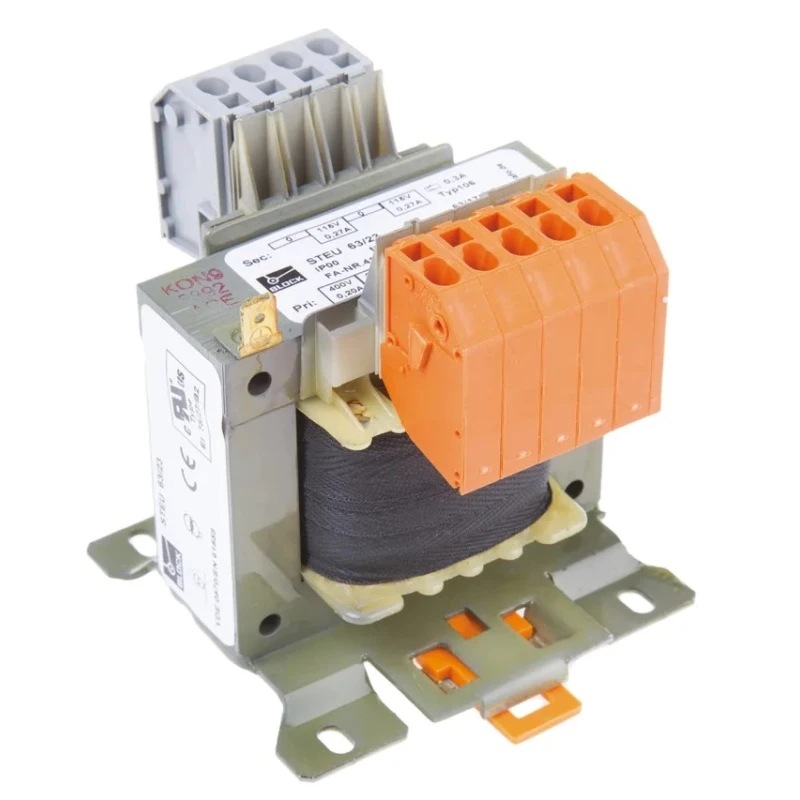

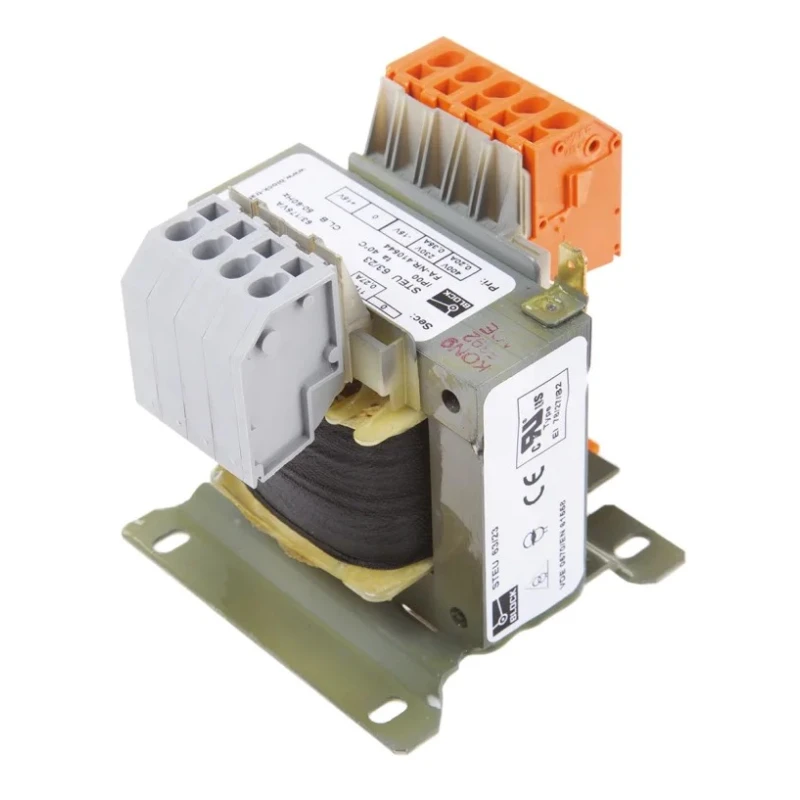

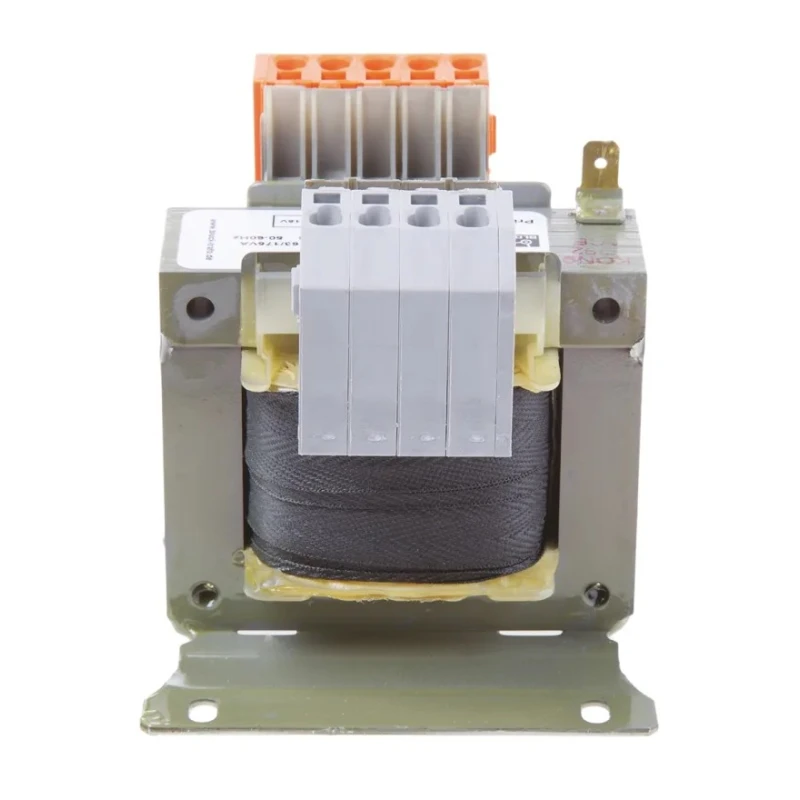

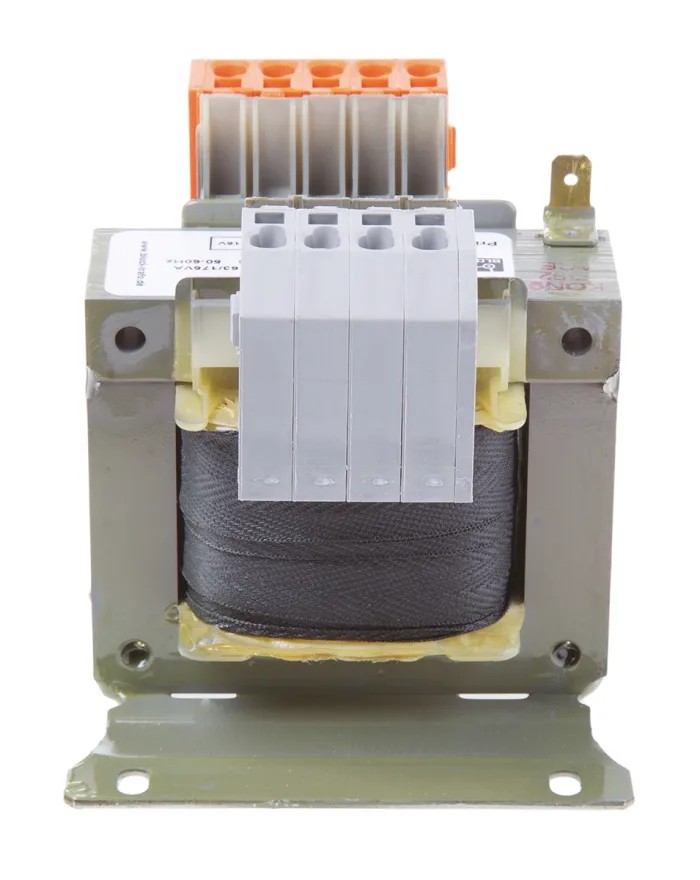

Block 2 Output 63 VA Chassis Mount Transformer 230 V / 400 V ac Primary, 2 x 115 V ac Secondary STEU63/23

Block STEU63/23 is a high-quality chassis mount transformer designed for industrial and electrical control applications requiring dual 115 V ac secondary outputs from 230 V or 400 V ac primary voltage supplies. The 63 VA power rating is ideal for control transformers isolating electrical circuits to enhance safety and performance.

This transformer features twin secondary windings that can be connected in series or parallel to adapt output voltages based on application requirements. It is fully compliant with international safety and performance standards including DIN EN 61558-2-2, IEC 61558-2-2, UL 5085-1/-2, and VDE 0570 Teil 2-2, ensuring compatibility with industrial regulations.

The physical design includes 4 hole panel mount fixings facilitating secure installation on equipment panels or chassis. Wiring is simplified through 4mm² cage clamp terminals which support robust electrical connections with easy maintenance access. The insulation category Class B and offset primary voltage taps (+15V and -15V) allow fine voltage adjustments reducing primary voltage impact.

Low inrush current characteristics and high efficiency with minimal voltage regulation reduce electrical losses and improve overall system reliability. The transformer's compact size with dimensions of 78mm length, 84mm width, and 85mm depth conserves panel space in control enclosures while its weight of 1.3 kg allows easy handling during installation.

Ideal for use in industrial automation, control panels, electrical distribution systems, and machinery equipment, this transformer facilitates safe isolation and voltage transformation. Made in Germany, it reflects stringent manufacturing standards and durability for long-term operation.

Features twin secondary windings suitable for series or parallel connection. Conforms to DIN EN 61558-2-2, IEC 61558-2-2, UL 5085-1/-2, and VDE 0570 standards. Incorporates 4 hole panel mount fixings for secure chassis installation.

Equipped with 4mm² cage clamp terminals allowing easy wiring and maintenance. Maintains low inrush current and high efficiency with low voltage regulation. Designed for a maximum operating temperature of 40°C ensuring reliable performance.

Compact dimensions of 78mm length, 84mm width, and 85mm depth optimize use of panel space. Manufactured in Germany ensuring quality and compliance with international standards. Explore the full range of Transformers and chassis mount mounting options on EnvMart for comprehensive industrial electrical solutions.
