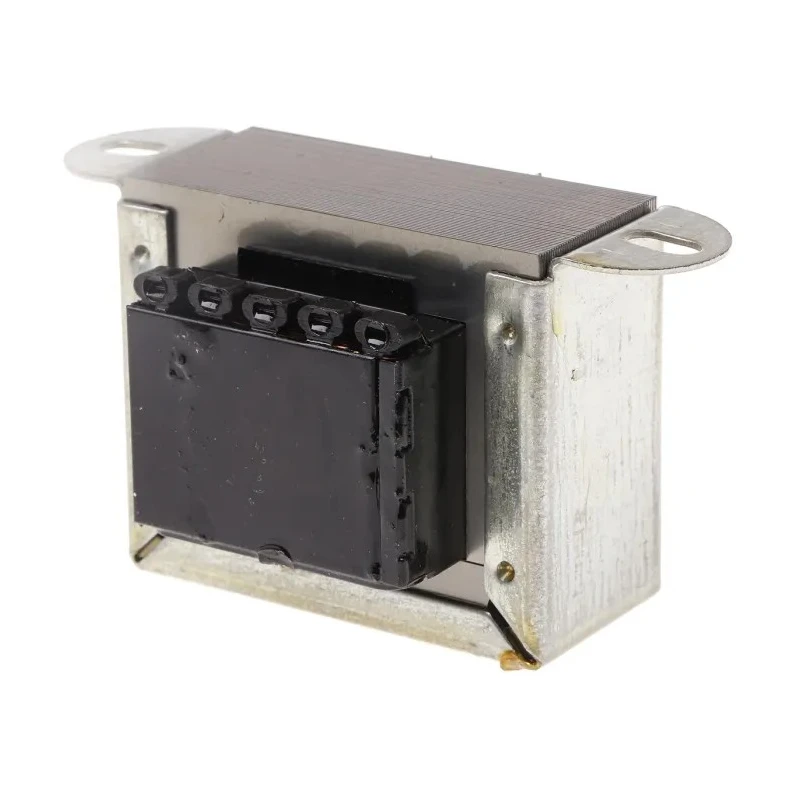

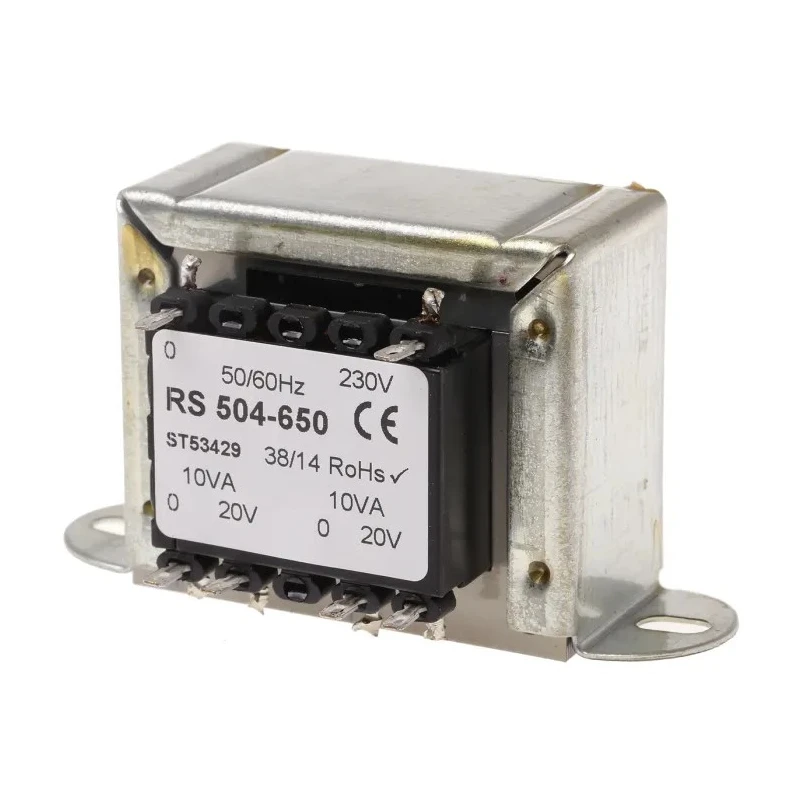

RS PRO 2 Output 20 VA Chassis Mount Transformer, 20 V AC, 230 V AC Primary, IECBSEN 615581, ASNZS 61558.1, ASNZS 504-650

Name: RS PRO 2 Output 20 VA Chassis Mount Transformer, 20 V AC, 230 V AC Primary, IECBSEN 615581, ASNZS 61558.1, ASNZS 504-650
Brand: RS PRO
SKU: 164241
Price: 41.69 USD
Availability: InStock



Category Transformer Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Brand	RS PRO
Length	59mm
Model	504-650
Depth	50mm
Gross Weight	210g
Width	57mm
Maximum Operating Temperature	130°C
Minimum Operating Temperature	-30°C
Number of outputs	2
Primary Voltage	230 V ac
Secondary Voltage	20 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Walsall Transformers 20VA 2 Output Chassis Mounting Transformer, 20V acBrand	Walsall Transformers

Key Features

Features two independent secondary windings for versatile voltage and current configurations.
Constructed with double-section bobbin and varnish-impregnated windings for moisture and dust resistance.
Equipped with solder tag terminations and two-hole fixing with wrap-over clamps for secure chassis mounting.
Operates within a temperature range of -30°C to 130°C and frequency range of 50-60 Hz.
Complies with IECBSEN 615581, ASNZS 61558.1, ASNZS 61558.6, IECBSEN 615586 standards ensuring quality and safety.
Compact dimensions of 59 mm length, 57 mm width, and 50 mm depth with a weight of 210 g.

Product Description

RS PRO 504-650 is a high-quality 2 output chassis mounting transformer with a power rating of 20 VA and secondary voltage of 20 V AC, designed for reliable voltage stepping applications.

This transformer supports a 230 V AC primary voltage and features double-section bobbins providing two independent secondary windings that can be connected in series or parallel to suit diverse output requirements.

The bobbins are shrouded for electrical insulation and safety, with varnish-impregnated windings offering robust resistance to moisture and dust, enhancing operational durability in various industrial environments.

Installation is facilitated by two-hole fixing with wrap-over clamps and solder tag terminations, ensuring a secure and stable mounting on chassis.

Operating temperatures range from -30°C to 130°C, and frequencies from 50 to 60 Hz, making it suitable for many electronic and electrical applications including relays, pumps, and speed chargers.

Two independent secondary windings for variable output configurations. Varnish-impregnated windings for improved durability and safety. Chassis mounting with wrap-over clamps and solder tag terminations. Compact and lightweight design with precise dimensions for easy integration.

Certified to IECBSEN 615581, ASNZS 61558.1, ASNZS 61558.6, and IECBSEN 615586 standards. Suitable for industrial, laboratory, and commercial electrical applications. This RS PRO transformer from Poland guarantees quality and safety compliance making it a reliable component for electronic power supply assemblies.
