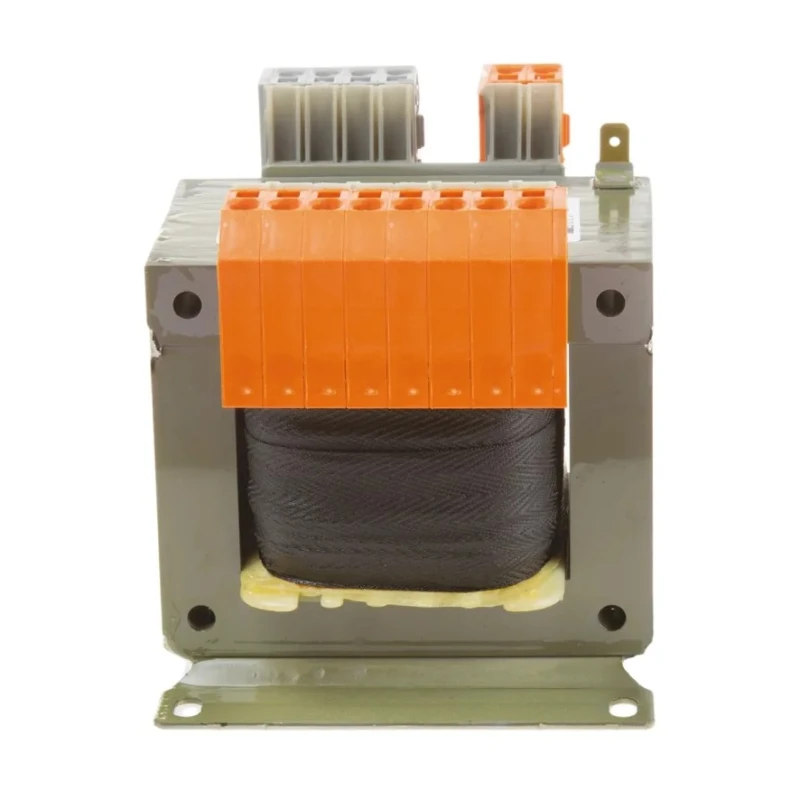

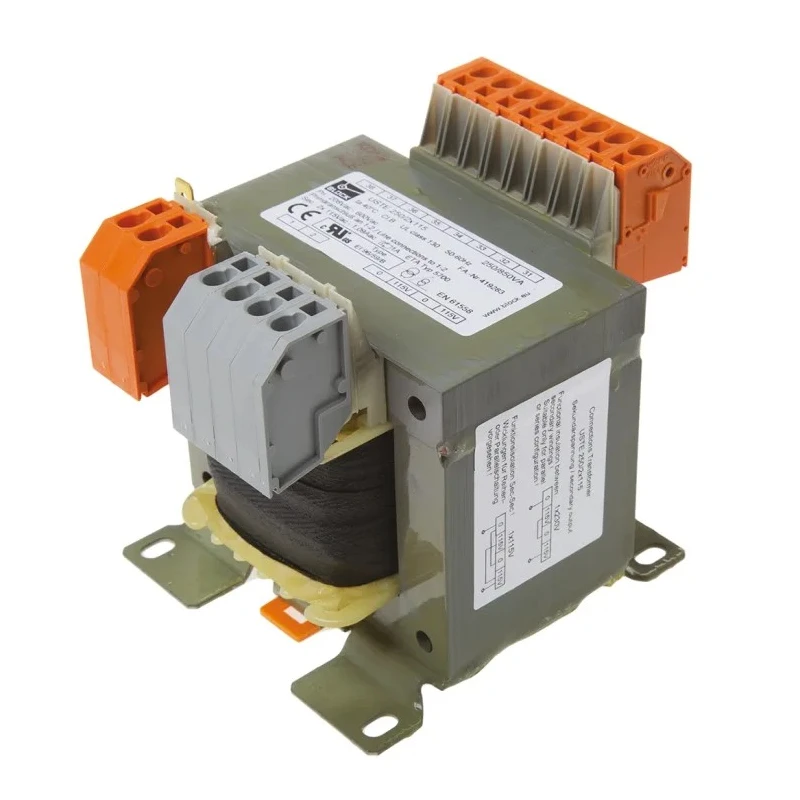

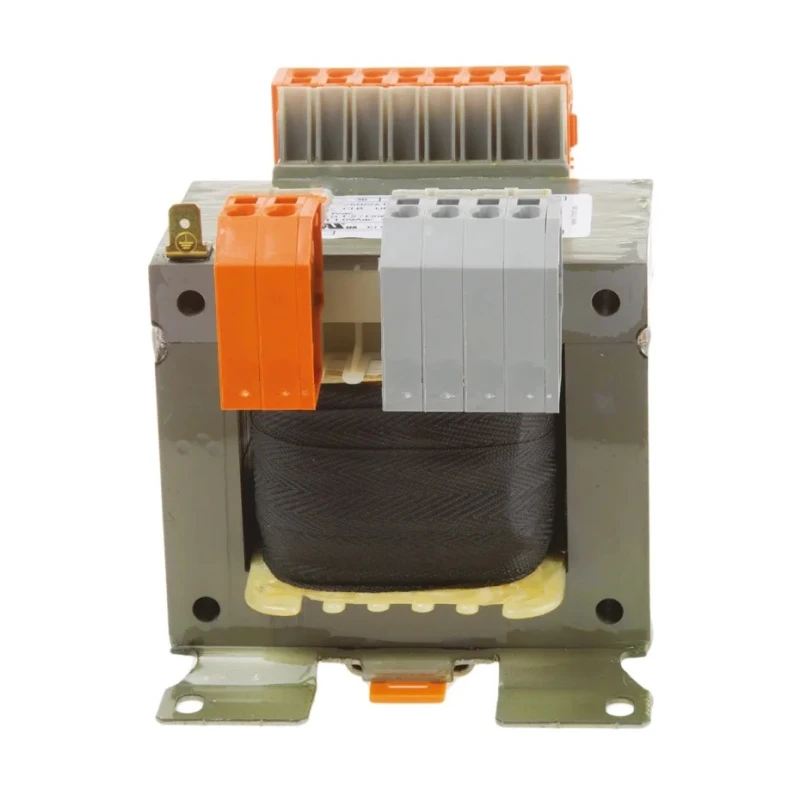

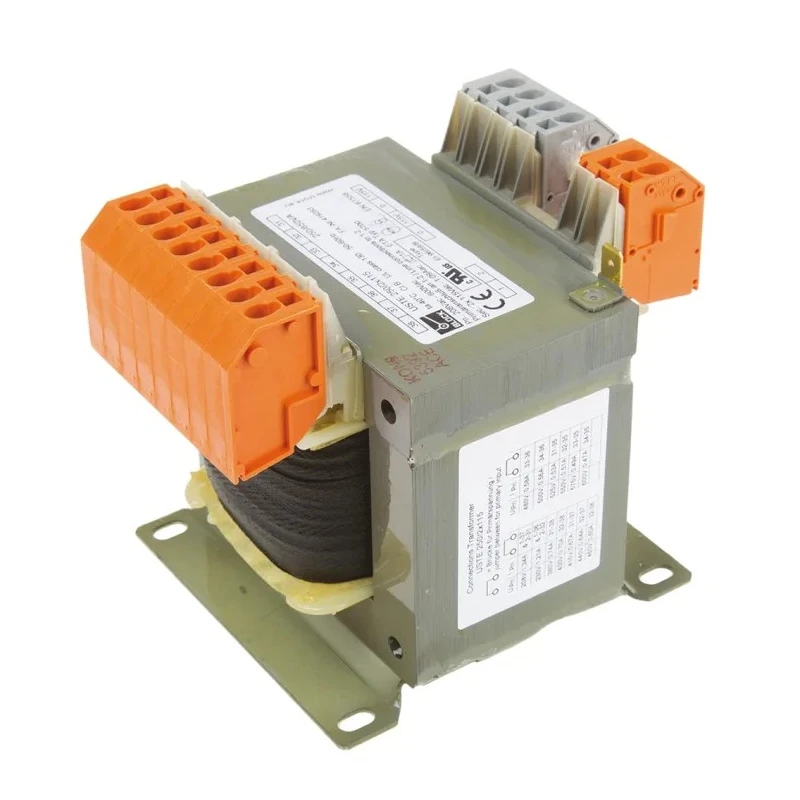

Block 2 Output 250 VA Chassis Mount Transformer, 2 x 115 V ac, cUL, VDE, UL USTE250/2X115

Free Delivery in India | Lowest Global Shipping Charges

Block 2 Output 250 VA Chassis Mount Transformer, 2 x 115 V ac, cUL, VDE, UL USTE250/2X115

Name: Block 2 Output 250 VA Chassis Mount Transformer, 2 x 115 V ac, cUL, VDE, UL USTE250/2X115
Brand: Block
SKU: 330443
Price: 233.68 USD
Availability: InStock



Category Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Length	104mm
Model	USTE250/2X115
Depth	102mm
Gross Weight	3.6kg
Width	96mm
Maximum Operating Temperature	40°C
Number of outputs	2
Standards/Approvals	cUL, VDE, UL
Primary Voltage	208 V ac, 230 V ac, 380 V ac, 400 V ac, 415 V ac, 440 V ac, 460 V ac, 480 V ac, 500 V ac, 525 V ac, 550 V ac, 575 V ac, 600 V ac
Secondary Voltage	2 x 115 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Universal input voltage range from 208 V ac up to 600 V ac for worldwide applications.
Vacuum resin impregnated for durability and reliable performance.
Suitable for control safety isolating and isolating transformers with cage clamp terminals for easy installation.
Complies with cUL, VDE, and UL safety standards and approvals.
Operates within 40°C maximum operating temperature to ensure thermal stability.
Standard frequency operation from 50 Hz minimum up to 60 Hz maximum.
Made in Germany ensuring high manufacturing quality and standards.

Product Description

Block USTE250/2X115 chassis mount transformer is a robust electrical component designed to provide 250 VA power with dual outputs of 2 x 115 V ac. It is engineered for control safety isolating and isolating transformer applications commonly required in industrial and commercial electronic systems.

This universal input control transformer supports a broad voltage input range including 208 V ac, 230 V ac, 380 V ac, 400 V ac, 415 V ac, 440 V ac, 460 V ac, 480 V ac, 500 V ac, 525 V ac, 550 V ac, 575 V ac, and 600 V ac, making it adaptable worldwide. The vacuum resin impregnation enhances durability and resistance against environmental stressors, ensuring long operational life.

Compact with dimensions of 104 mm length, 96 mm width, and 102 mm depth, the transformer is designed for easy chassis mounting and installation using cage clamp terminals. Its maximum operating temperature of 40°C and frequency operation between 50 Hz and 60 Hz make it suitable for various industrial environments.

The transformer holds important safety certifications including cUL, VDE, and UL recognition, guaranteeing compliance with international standards. Its manufacturing origin is Germany, reflecting premium build quality.

Universal input voltage from 208 V ac to 600 V ac provides wide applicability. Dual output voltage of 2 x 115 V ac for efficient power distribution. Vacuum resin impregnation for environmental protection and durability. Compact chassis mount design with simple cage clamp terminal installation.

Certified to international safety standards cUL, VDE, and UL. Thermal stability at a maximum operating temperature of 40°C. Operates at standard frequencies from 50 Hz to 60 Hz. Manufactured in Germany for high-quality assurance.

This chassis mount transformer is ideal for industrial, manufacturing, automation, and electronic control applications that require reliable power conversion and safety isolation. Explore the Electronics & Electricals category on EnvMart for similar reliable Transformers.
