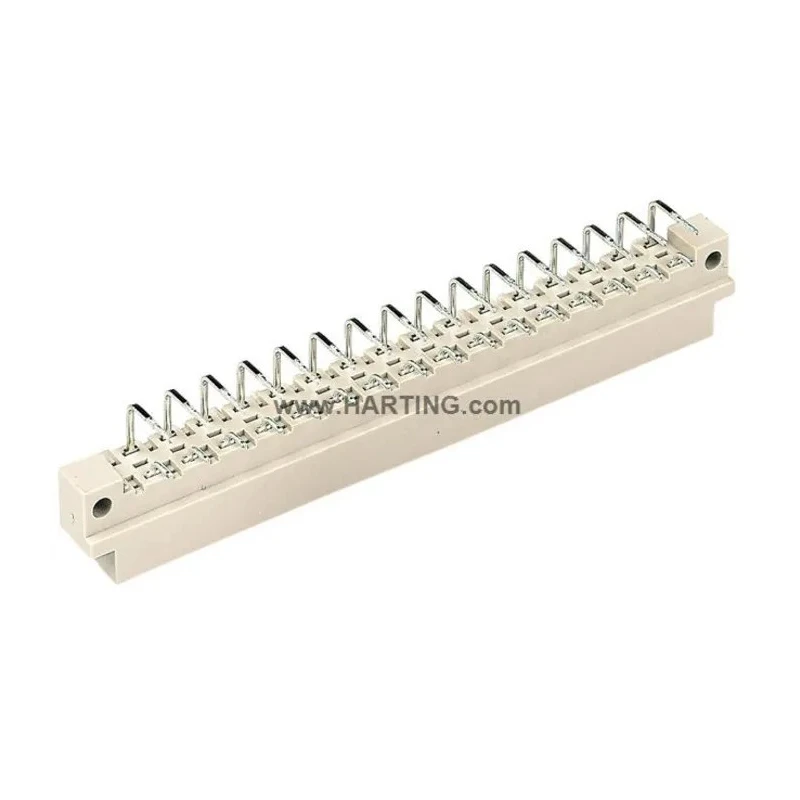

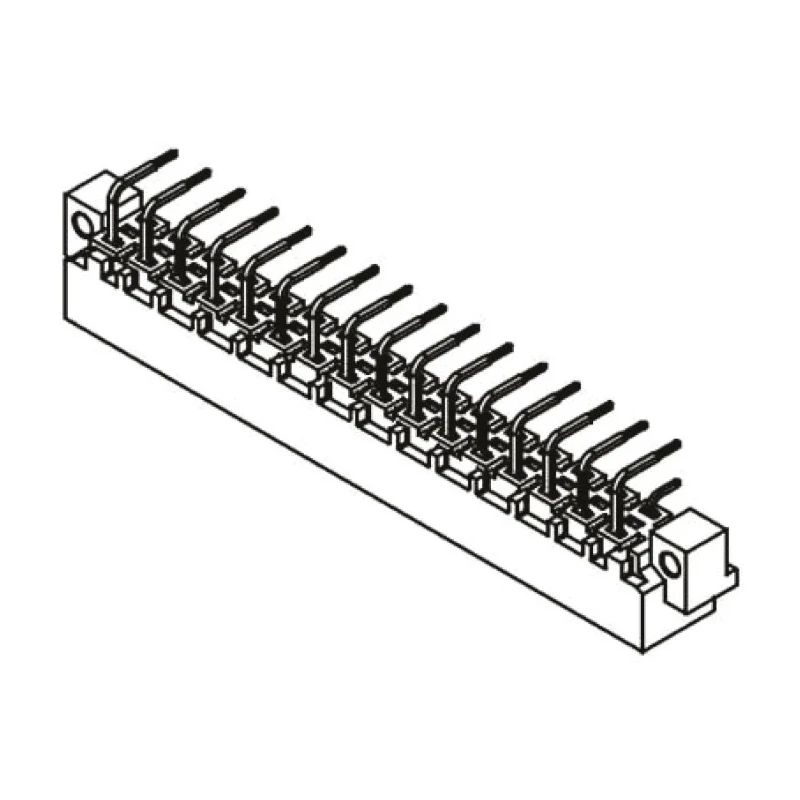

HARTING DIN 41612 Connector 32 Way 5.08 mm Pitch, Type D, Class C1, 2 Row Male, Right Angle 09041322921
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 125V ac |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 6A |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 09 04 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | D |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 5.08mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 32 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 15mΩ |
| Row Loading | A/C |
Key Features
- Offers a reliable 32-contact, 2-row male connection with 5.08 mm pitch spacing.
- Supports up to 6A current per contact at 125V AC voltage rating.
- Constructed with copper alloy contacts plated with gold over nickel for enhanced conductivity.
- Thermoplastic housing provides durability and withstands operating temperatures from -55°C to 125°C.
- Right angle orientation simplifies board-to-board connectivity in compact equipment.
- Designed for DIN 41612 standard, suitable for industrial and railway power supply applications.
- Ensures a maximum contact resistance of 15 milliohms for efficient signal transmission.
- Termination type is solder, providing secure and stable electrical connections.
Product Description
HARTING 09041322921 DIN 41612 Connector is a robust and reliable 32-way, 2-row male connector designed for high-power industrial applications requiring secure and efficient electrical interfacing.
Featuring a 5.08 mm pitch and Type D configuration, this Class C1 connector supports a maximum current of 6A per contact and a voltage rating of 125V AC. It is constructed using copper alloy contacts plated with gold over nickel to ensure excellent conductivity and corrosion resistance, enclosed within a durable thermoplastic housing.
The right angle orientation of the connector facilitates compact board-to-board connections, making it ideal for use in railway technology, power supplies, and other industrial control systems demanding high power and reliable performance. It meets DIN 41612 standards for interconnection in 19-inch Eurocard racking systems.
The connector offers a wide operating temperature range from -55°C to 125°C and ensures a low maximum contact resistance of 15 milliohms. The solder termination type enhances mechanical stability and electrical integrity.
Manufactured in Switzerland, this component reflects high quality and precision, providing a durable solution for demanding electrical connector requirements. Reliable 32 contact, 2 row male configuration with 5.08 mm pitch.
Supports 6A current per contact at 125V AC voltage rating. Copper alloy contacts with gold over nickel plating for superior conductivity. Durable thermoplastic housing suitable for harsh industrial environments. Right angle orientation for optimized space utilization.
Class C1 rated, designed for high-reliability applications. Wide operating temperature range from -55°C to 125°C. Low maximum contact resistance of 15 milliohms. Solder termination ensures secure connector mating. Compliant with DIN 41612 standards for industrial backplane connectors.
This HARTING DIN 41612 Connector is highly suitable for industrial, railway, power supply, and automation applications requiring dependable electrical interconnection. Discover more quality electronic components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum current of 6A per contact.
The voltage rating is 125V AC.
It utilizes a solder termination type for secure electrical connections.
The pitch spacing of the contacts is 5.08 mm.
The maximum contact resistance is 15 milliohms.
It features copper alloy contacts plated with gold over nickel, enclosed in a thermoplastic housing.
It operates within a temperature range of -55°C to 125°C.
This connector has 32 contacts arranged in 2 rows.
It has a right angle orientation, facilitating compact board-to-board connections.
It complies with the DIN 41612 standard for interconnection.
It is manufactured in Switzerland.
It is suitable for industrial, railway, power supply, and automation applications requiring reliable electrical interconnection.
