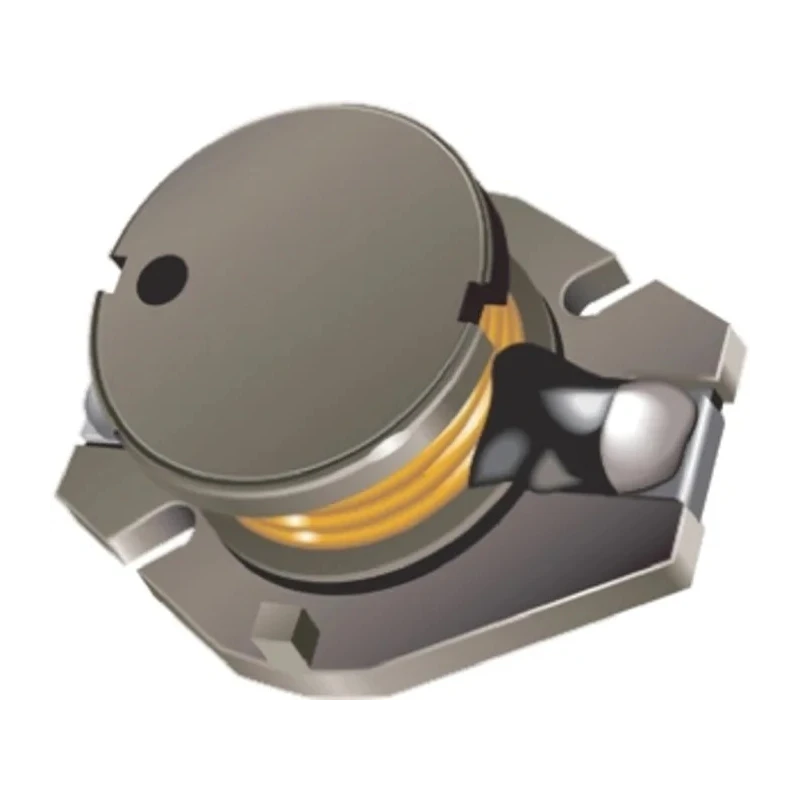

Bourns Wirewound Surface Mount Inductor 33 μH ±10% Ferrite DR Core 1.8A Idc 14MHz Q29 SDR1005
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 5mm |
| Length | 12.7mm |
| Model | SDR1005 |
| Depth | 10mm |
| Packaging | Reel |
| Series | SDR1005 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 33μH |
| Standards/Approvals | JEDEC, RoHS |
| Package/Case | 1005 |
| Maximum DC Current | 1.8A |
| Maximum DC Resistance | 120mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 14MHz |
| Minimum Quality Factor | 29 |
| Inductor Construction | Wirewound |
Key Features
- The inductor features a low profile height of 5 mm suitable for compact PCB designs.
- It provides a maximum self-resonant frequency of 14 MHz, ensuring performance in high-frequency applications.
- Constructed with a ferrite DR core and wirewound technology for stable inductance and low resistance.
- Rated for operating temperatures from -40°C up to 125°C, suitable for harsh environments.
- Available in 1005 package case style, packed on reels for efficient automated assembly.
- Complies with JEDEC and RoHS standards for quality and environmental safety.
- Inductor exhibits a minimum quality factor of 29, enhancing signal integrity.
Product Description
Bourns SDR1005 is a high-quality wirewound surface mount inductor with a ferrite DR core, designed for demanding electronic and power applications. This inductor provides an inductance of 33 μH with a ±10% tolerance and supports a maximum DC current of 1.8 A, making it suitable for power supply filters, DC/DC converters, and other high-efficiency circuits.
Measuring just 12.7 mm in length, 10 mm in depth, and 5 mm in height, the compact 1005 package ensures compatibility with modern circuit board designs. Its wirewound construction and ferrite core deliver stable inductance with low DC resistance of 120 mΩ, minimizing energy losses.
The component operates reliably across a wide temperature range from -40°C to 125°C, and it is molded for durability. Its maximum self-resonant frequency of 14 MHz allows efficient operation in high-frequency switching power supplies and signal conditioning circuits.
Bourns SDR1005 meets JEDEC and RoHS compliance standards, guaranteeing performance, safety, and environmentally responsible manufacturing. The device is shipped on reels, facilitating efficient automated PCB assembly.
The inductor's quality factor of 29 enhances circuit performance by reducing losses. Its surface mount termination style enables space-saving and ease of installation. The product is ideally used in industrial electronics, telecommunications, computing, and automotive power electronics applications.
With robust build and precise electrical specifications, this SDR1005 inductor is a reliable choice for engineers requiring consistent inductance and current handling in compact designs. Explore further Bourns components in the Surface Mount Inductors category on EnvMart for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 33 μH with a tolerance of ±10%.
The maximum DC current rating for this unit is 1.8 A.
It measures 12.7 mm in length, 10 mm in depth, and 5 mm in height.
The maximum self-resonant frequency is 14 MHz, making it suitable for high-frequency applications.
It features a wirewound construction with a ferrite DR core.
The inductor exhibits a minimum quality factor of 29, which enhances signal integrity.
It operates reliably within a temperature range of -40°C to 125°C.
This inductor has a surface mount termination style, facilitating space-saving installation.
It complies with JEDEC and RoHS standards for quality and environmental safety.
It is packaged on reels, which allows for efficient automated assembly.
The maximum DC resistance is 120 mΩ, which helps minimize energy losses.
It is ideally used in industrial electronics, telecommunications, computing, and automotive power electronics applications.
