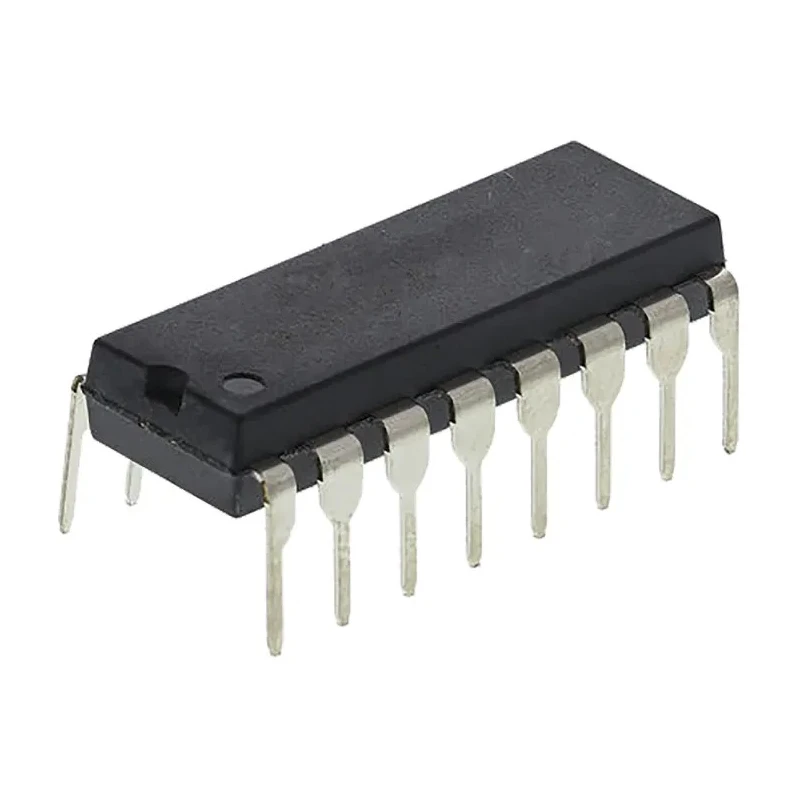

Maxim Integrated Analogue Switch 2 Dual SPDT 16-Pin PDIP DG403DJ+

Maxim Integrated DG403DJ+ analogue switch is a reliable and versatile component designed for switching analog signals in electronic circuits. Featuring two dual SPDT switches configured in a 16-pin PDIP package, this device supports CMOS and TTL output types, making it suitable for a range of industrial, laboratory, and electronic applications.

This analogue switch operates efficiently across a supply voltage range from 4.5 volts up to a maximum of 30 volts. Its maximum on-state resistance of 55 ohms ensures minimal signal degradation during operation, which is critical for high-precision electronic systems.

The device is built to function reliably within an operating temperature range of -40°C to 85°C, making it suitable for harsh environmental conditions commonly found in industrial and commercial electronics.

Its through-hole 16-pin PDIP package allows for easy integration into printed circuit boards using conventional mounting techniques. This switch is RoHS compliant, meeting environmental safety standards for electronic components.

Key features of the DG403DJ+ include dual SPDT switch configuration and CMOS/TTL output compatibility. It is ideal for applications requiring precise and efficient analog signal routing such as instrumentation, signal multiplexing, and control systems.

Operates with a minimum supply voltage of 4.5 volts. Maximum supply voltage rating of 30 volts ensures robust operation. Low on-state resistance of 55 ohms minimizes signal loss. Wide operating temperature range from -40°C to 85°C for versatile applications.

16-pin PDIP package suitable for through-hole mounting. Contains 2 switch elements configured as dual single-pole double-throw (SPDT). Compatible output type supporting CMOS and TTL logic levels. RoHS compliant guaranteeing environmental safety.

This product is ideal for electronic designers, industrial automation, telecommunications, and consumer electronics sectors looking for dependable switching solutions for analog signals. Environmentally conscious engineers will appreciate its compliance with RoHS standards.
