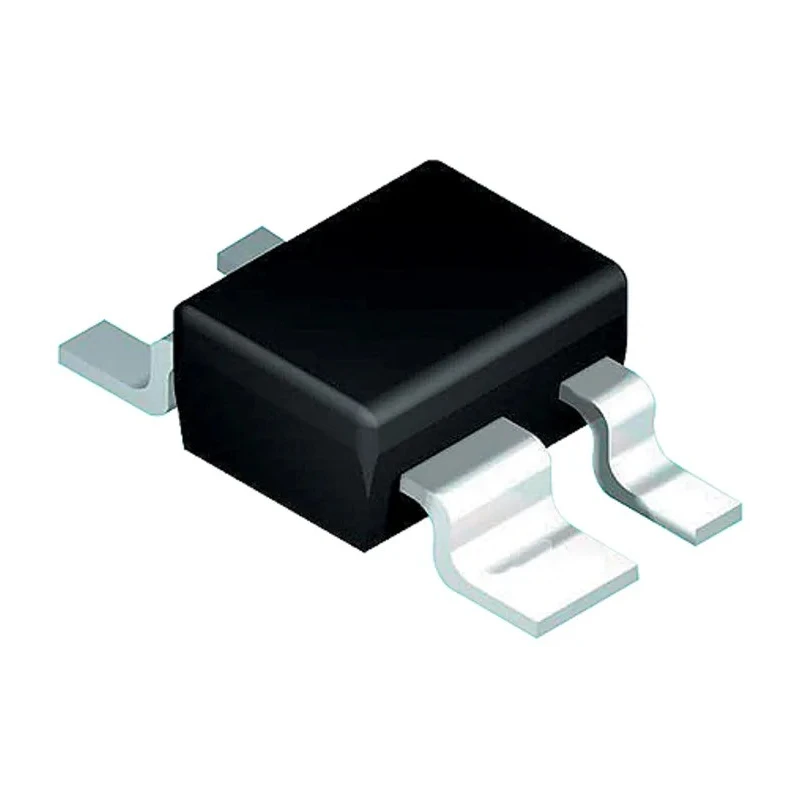

Nexperia 2-Element Uni-Directional TVS Diode, 4-Pin SOT-143 PRTR5V0U2X,215
Specifications
| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 3mm |
| Model | PRTR5V0U2X,215 |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | PRTR |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-143 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 4 |
| Number of Elements per Chip | 2 |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Complex Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V |
| Maximum Peak Pulse Current Ippm | 2.5A |
| Maximum Reverse Leakage Current | 100μA |
Key Features
- This diode features a complex array diode configuration optimized for ESD protection.
- Offers a minimum breakdown voltage (Vbr) of 6V and maximum reverse stand-off voltage (Vwm) of 5.5V.
- Supports a maximum peak pulse current (Ippm) of 2.5A for robust transient suppression.
- The device contains two elements per chip, enhancing protection efficiency.
- Operates effectively in temperatures ranging from -40°C to 85°C.
- Compact SOT-143 surface mount package with dimensions 3 mm length, 1.4 mm width, and 1.1 mm height.
- Meets automotive standard AEC-Q101 for reliability in automotive applications.
- Maximum reverse leakage current is low at 100 μA, ensuring minimal power loss.
Product Description
Nexperia PRTR5V0U2X,215 is a 2-element uni-directional Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic circuits against electrostatic discharges (ESD) and transient voltage spikes.
This device comes in a small 4-pin SOT-143 surface mount package, with compact dimensions of 3 mm length, 1.4 mm width, and 1.1 mm height, making it suitable for space-constrained electronic assemblies.
Featuring a complex array diode configuration, it provides effective protection with a minimum breakdown voltage of 6V and maximum reverse stand-off voltage of 5.5V. The diode can handle peak pulse currents up to 2.5A, ensuring robust transient suppression during voltage surges.
Its operational temperature range extends from -40°C to 85°C, allowing reliable performance in industrial, automotive, and commercial electronics environments. Compliance with the automotive standard AEC-Q101 further underscores its suitability for automotive electronic system protection.
This ultra-low capacitance rail-to-rail ESD protection diode safeguards high-speed and high-frequency data lines, preventing damage and improving device longevity in applications such as communication interfaces, data lines, and sensitive signal circuits.
This diode features a complex array diode configuration optimized for ESD protection. Provides a minimum breakdown voltage of 6V and maximum reverse stand-off voltage of 5.5V. Supports a maximum peak pulse current of 2.5A for transient suppression.
Contains two elements per chip to enhance protection efficiency. Operates across a wide temperature range of -40°C to 85°C for industrial and automotive use. Compact SOT-143 package dimensions: 3 mm (L) x 1.4 mm (W) x 1.1 mm (H).
Complies with automotive standard AEC-Q101. Low maximum reverse leakage current of 100 μA ensures minimal power dissipation.
Manufactured in China, the product is supplied new and is ideal for use in high-reliability ESD protection applications across industrial, telecommunications, automotive, and commercial electronic systems.
Explore more advanced semiconductor protection components in the Electronics & Electricals category on EnvMart for your industrial and commercial needs.
Explore more products in our TVS Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage (Vbr) of this diode is 6V.
The maximum reverse stand-off voltage (Vwm) is 5.5V.
It supports a maximum peak pulse current (Ippm) of 2.5A for transient suppression.
The dimensions of the SOT-143 package are 3 mm in length, 1.4 mm in width, and 1.1 mm in height.
It operates effectively in temperatures ranging from -40°C to 85°C.
This diode contains two elements per chip, enhancing protection efficiency.
It complies with the automotive standard AEC-Q101, ensuring reliability in automotive applications.
The maximum reverse leakage current is low at 100 μA, ensuring minimal power loss.
This diode is uni-directional, designed for specific transient voltage suppression applications.
It features a complex array diode configuration optimized for ESD protection.
This model uses a surface mount type for installation in electronic assemblies.
It is suitable for high-speed and high-frequency data lines, protecting sensitive signal circuits and communication interfaces.
