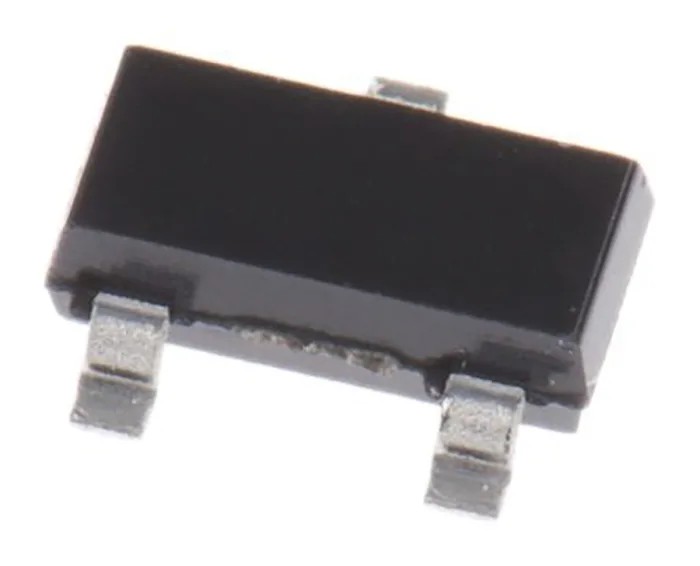

STMicroelectronics 1-Element Bi-Directional TVS Diode 230 W 3-Pin SOT-23 ESDCAN06-2BLY
Specifications
| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.1mm |
| Length | 3.04mm |
| Model | ESDCAN06-2BLY |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | ESDCANxx-2BLY |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 59V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 38V |
| Maximum Reverse Stand-off Voltage Vwm | 25.5V |
| Peak Pulse Power Dissipation Pppm | 230W |
| Maximum Peak Pulse Current Ippm | 3A |
| Maximum Reverse Leakage Current | 50nA |
| ESDCAN01-2BLY | 25 V |
| ESDCAN24-2BLY | 27 V |
| ESDCAN04-2BLY | 27.5 V |
| ESDCAN06-2BLY | 38 V |
Key Features
- Provides bi-directional electrostatic discharge protection with a peak pulse power dissipation of 230 W.
- Features a low leakage current of 50 nA and a clamping voltage of 59 V for effective surge suppression.
- Operates reliably between -55°C and 150°C, ensuring durability under harsh automotive conditions.
- Compact SOT-23 surface-mount package with dimensions 3.04 mm length, 1.75 mm width, and 1.1 mm height.
- Complies with automotive standard AEC-Q101 for quality and reliability in automotive environments.
- Specifically designed for automotive CAN, LIN, FlexRay, MOST, SENT, and USB communication line protection.
Product Description
STMicroelectronics ESDCAN06-2BLY is a 1-element bi-directional Transient Voltage Suppressor (TVS) diode designed for protection of automotive communication lines such as CAN bus against electrostatic discharge and electrical overstress. It features a peak pulse power dissipation of 230 W (8/20 μs waveform) and a low leakage current of 50 nA, ensuring high reliability and performance in automotive applications.
This device is housed in a compact SOT-23 surface-mount package with dimensions of 3.04 mm length, 1.75 mm width, and 1.1 mm height, suitable for dense PCB layouts. It offers a breakdown voltage of 38 V and a maximum reverse stand-off voltage of 25.5 V, with a clamping voltage of 59 V to protect sensitive electronic circuits from transient voltage spikes.
Operating temperature range from -55°C to 150°C allows it to perform robustly in automotive environments. The diode is compliant with AEC-Q101 automotive standards, making it suitable for CAN-FD, LIN, FlexRay, MOST, SENT, USB interfaces, and provides dual-line ESD and EOS protection.
Bi-directional ESD protection up to 230 W peak pulse power. Low clamping voltage to minimize voltage stress on protected lines. Superior leakage current performance for energy efficiency. Compact SOT-23 package for space-constrained automotive electronic boards.
Wide operating temperature range for automotive reliability. AEC-Q101 compliant device for automotive grade applications.
This TVS Diode is critical in industrial, automotive, construction, and manufacturing environments to ensure communication and control system integrity against voltage transients. It is ideal for protective circuits in automotive ECUs, interfaces, and high-speed data lines.
Explore additional STMicroelectronics diode products and related automotive semiconductor components on EnvMart for comprehensive electronic system protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ESDCAN06-2BLY has a peak pulse power dissipation of 230 W, specifically for an 8/20 μs waveform.
This model operates reliably within a temperature range of -55°C to 150°C, making it suitable for harsh automotive conditions.
The clamping voltage for this diode is 59 V, which helps protect sensitive electronic circuits from transient voltage spikes.
The SOT-23 package has dimensions of 3.04 mm in length, 1.75 mm in width, and 1.1 mm in height.
This diode complies with the AEC-Q101 automotive standard, ensuring quality and reliability in automotive environments.
The ESDCAN06-2BLY is a 1-element bi-directional diode, designed for effective ESD protection.
The maximum reverse stand-off voltage for the ESDCAN06-2BLY is 25.5 V.
The maximum reverse leakage current for this diode is 50 nA, which contributes to its energy efficiency.
This model is specifically designed for protecting automotive communication lines such as CAN, LIN, FlexRay, MOST, SENT, and USB.
The minimum breakdown voltage for this diode is 38 V, which is crucial for its protective capabilities.
This diode features a pin count of 3, suitable for various electronic applications.
The ESDCAN06-2BLY uses a surface mount type, making it suitable for dense PCB layouts.
