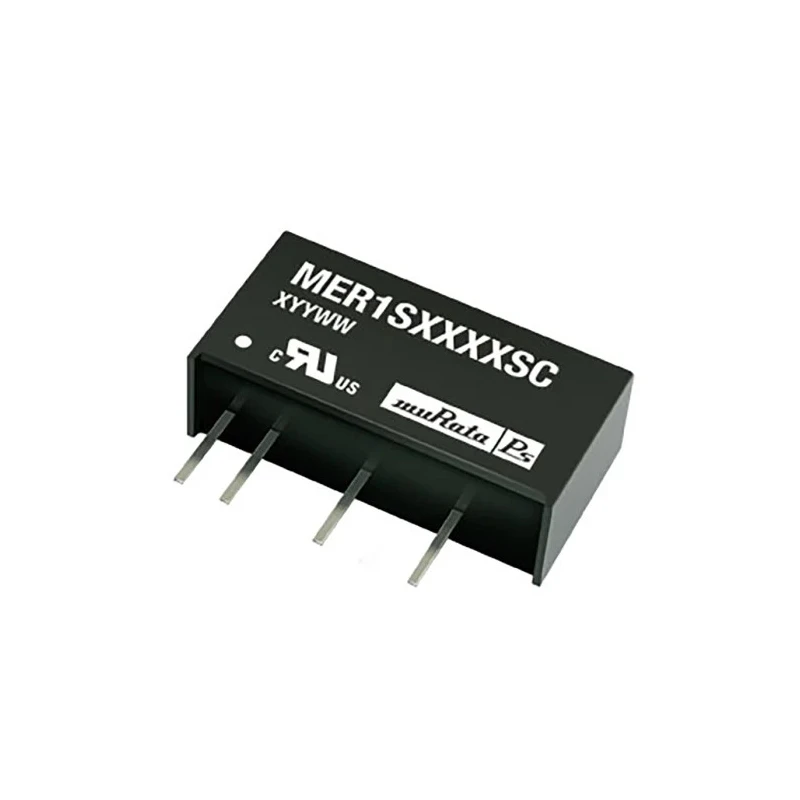

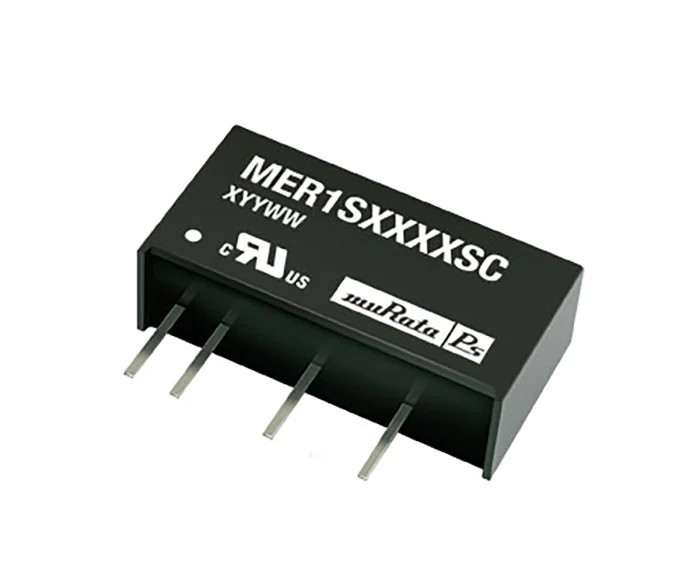

Murata Power Solutions 1W SIP Single Output Unregulated Isolated DC/DC Converter, 5V DC Output, 200mA, 43.2V - 52.8V DC MER1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MER1 DC/DC Converter, 5V dc |
| Brand | Murata Power Solutions |
| Efficiency | 79.5% |
| Length | 19.65mm |
| Model | MER1 |
| Depth | 10.15mm |
| Gross Weight | 2.75g |
| Width | 6.15mm |
| Mount Type | Through Hole |
| Series | MER1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 7354000h |
| Number of outputs | 1 |
| Ripple and Noise | 30mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 52.8V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 43.2V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1kV dc |
| MER1S05xxSC | 1A |
| MER1S12xxSC | 0.375A |
| MER1S15xxSC | 0.375A |
| MER1S24xxSC | 0.2A |
| MER1S48xxSC | 0.1A |
Key Features
- Offers a regulated 5V DC output at 200mA current capacity.
- Operates from 43.2V minimum to 52.8V maximum DC input voltage.
- Features a SIP7 through-hole package with industry-standard pinout for easy PCB integration.
- Provides galvanic isolation with a 1kV DC isolation voltage rating to reduce switching noise.
- Built to operate in harsh environments with a temperature range from -40°C to +85°C.
- Achieves an efficiency rating of approximately 79.5%, minimizing power losses.
- Designed without the need for a heatsink or external components, simplifying assembly.
- Fully encapsulated with toroidal magnetics for enhanced durability and reliability.
Product Description
Murata Power Solutions MER1S4805SC is a 1W SIP single output unregulated isolated DC/DC converter that delivers a stable 5V DC output at 200mA. This converter is designed to operate with an input voltage range of 43.2V to 52.8V DC, making it suitable for applications requiring precise power regulation from high voltage DC sources.
The through-hole SIP7 package ensures compatibility with standard PCB layouts, facilitating ease of integration. Its built-in galvanic isolation rated at 1kV DC effectively reduces switching noise, enhancing the performance of sensitive electronic equipment.
With a wide operating temperature range from -40°C to 85°C and an efficiency of approximately 79.5%, this converter performs reliably in demanding industrial and commercial environments without the need for additional cooling solutions.
Engineered for robustness, it features full encapsulation with toroidal magnetics and uses flame retardant UL94V-0 package material. The design eliminates the requirement for electrolytic or tantalum capacitors, contributing to its longevity and low maintenance.
This Murata DC/DC converter is particularly suited for providing local power supplies on control system boards, instrumentation, and other electronic applications where low ripple, stable voltage, and isolation are critical.
Regulated 5V DC output at 200mA current. Input voltage range of 43.2V to 52.8V DC. Through-hole SIP7 package with industry-standard pinout. Galvanic isolation at 1kV DC to reduce noise. Wide temperature range from -40°C up to 85°C.
Efficiency rating of 79.5% at full load. No need for heatsink or external components. Full encapsulation with toroidal magnetics. RoHS compliant and UL94V-0 flame retardant package. Ideal for industrial, laboratory, control system, and instrumentation uses.
Explore more Murata Power Solutions DC/DC Converters at EnvMart for reliable power conversion components designed to meet industrial and commercial application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a regulated output voltage of 5V DC with a current capacity of 200mA.
The input voltage range is from 43.2V to 52.8V DC.
The efficiency rating is approximately 79.5% at full load.
It features a SIP7 through-hole package with an industry-standard pinout for easy PCB integration.
It has a galvanic isolation voltage rating of 1kV DC, which helps reduce switching noise.
The operating temperature range is from -40°C to 85°C.
The ripple and noise for the output is specified at 30mV peak-to-peak.
The gross weight of this unit is 2.75g.
The maximum output power is 1W.
No, it is designed to operate without the need for a heatsink or external components, simplifying assembly.
It is RoHS compliant and uses UL94V-0 flame retardant package material.
It is particularly suited for providing local power supplies on control system boards, instrumentation, and other electronic applications where low ripple and stable voltage are critical.
