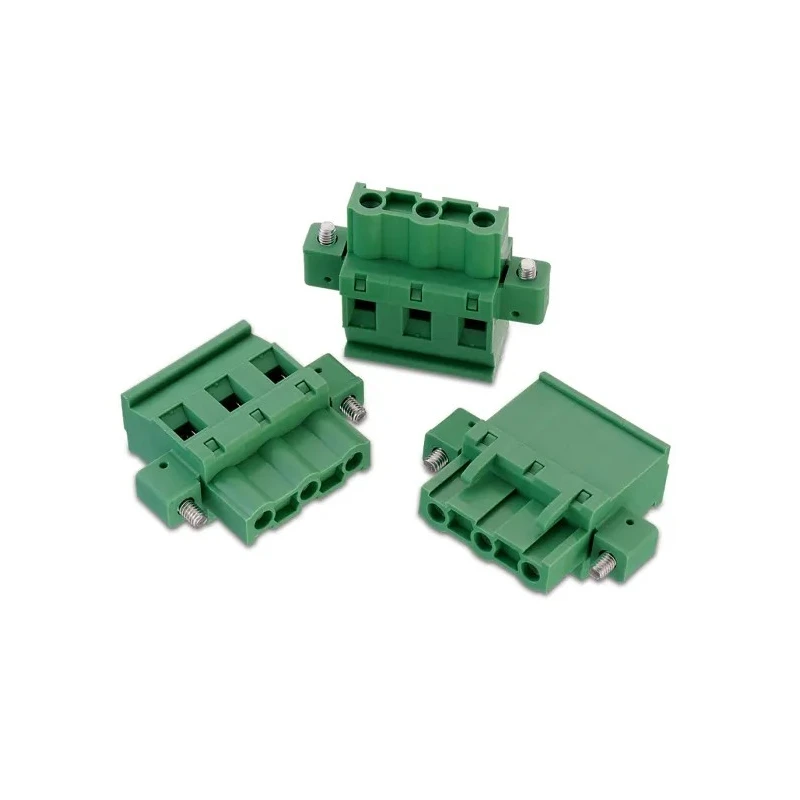

Wurth Elektronik 3454 Series Pluggable Terminal Block 5-Contact 7.62 mm Pitch 1 Row 15A 1.6kV 691345410005
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1.6kV |
| Brand | Wurth Elektronik |
| Colour | Green |
| Orientation | Horizontal |
| Current | 15A |
| Length | 42.88mm |
| Depth | 12.6mm |
| Width | 26.25mm |
| Housing Material | Polyamide |
| Series | 3454 |
| Number of Rows | 1 |
| Pitch | 7.62mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 5 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 3.31mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Solder |
Key Features
- Rated for a current of 15A suitable for various electronic applications.
- Supports wire sizes from 0.2 mm² to 3.31 mm² and AWG sizes from 24 to 12.
- Constructed with durable polyamide housing material and green color coding.
- Designed with a horizontal orientation and solder wire connection method.
- Compliance with RoHS standards for environmental safety.
Product Description
Wurth Elektronik 691345410005 is a 3454 Series Pluggable Terminal Block designed for reliable electrical connections in industrial and electronic applications. This terminal block features 5 contacts with a 7.62 mm pitch and a single row layout, ideal for PCB mounting with precise spacing for wiring.
It supports currents up to 15A and can accommodate wire sizes ranging from 0.2 mm² to 3.31 mm², as well as AWG sizes 24 to 12. The housing is made from polyamide, offering robust mechanical stability and thermal resistance. The green color coding assists easy identification in circuit layouts.
The connector is designed with a male gender and a horizontal orientation, employing solder connection methods to ensure a secure and stable electrical interface. It withstands voltage levels up to 1.6 kV, providing dependable insulation in demanding environments. Its compact size with dimensions 42.88 mm (L) x 26.25 mm (W) x 12.6 mm (D) allows efficient space utilization on PCB boards.
Certified to meet RoHS compliance, this terminal block is environmentally friendly without hazardous substances, suitable for industrial, laboratory, manufacturing, HVAC, and electronics production lines.
The 3454 Series terminal blocks from Wurth Elektronik are modular and versatile, enabling easy custom configurations in electronic components and power connectors assemblies. Rated for a current of 15A suitable for various electronic applications.
Supports wire sizes from 0.2 mm² to 3.31 mm² and AWG sizes from 24 to 12. Constructed with durable polyamide housing material and green color coding. Designed with a horizontal orientation and solder wire connection method.
Voltage withstand capability up to 1.6 kV ensuring reliable insulation. Compact dimensions: 42.88 mm length, 26.25 mm width, and 12.6 mm depth for optimal PCB integration. Compliance with RoHS standards for environmental safety.
Explore the range of Wurth Elektronik Pluggable Terminal Blocks on EnvMart for trusted quality and extensive industrial compatibility.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a current of 15A, making it suitable for various electronic applications.
It has a voltage withstand capability of up to 1.6 kV, ensuring reliable insulation in demanding environments.
It supports wire sizes ranging from 0.2 mm² to 3.31 mm² and AWG sizes from 24 to 12.
This terminal block features a 7.62 mm pitch and has 5 contacts in a single row layout.
It employs a solder connection method to ensure a secure and stable electrical interface.
The dimensions are 42.88 mm in length, 26.25 mm in width, and 12.6 mm in depth.
The housing is constructed from polyamide, providing mechanical stability and thermal resistance.
This model is designed with a horizontal orientation, suitable for PCB mounting.
Yes, it is certified to meet RoHS compliance, ensuring it is free from hazardous substances.
It features green color coding, which assists in easy identification in circuit layouts.
It is suitable for industrial, laboratory, manufacturing, HVAC, and electronics production lines.
The connector gender of this terminal block is male, designed for specific connection requirements.
