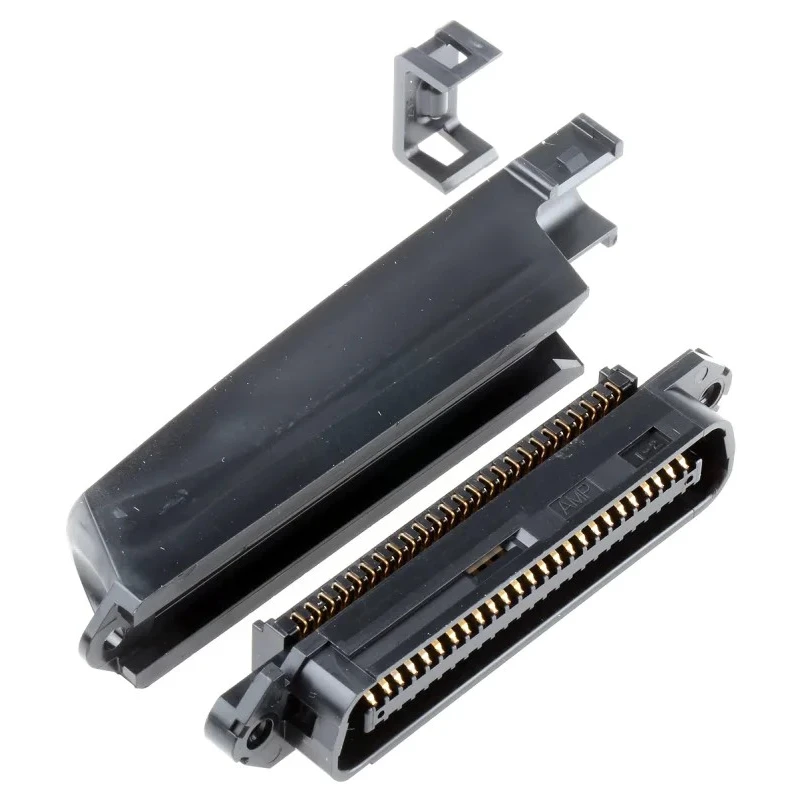

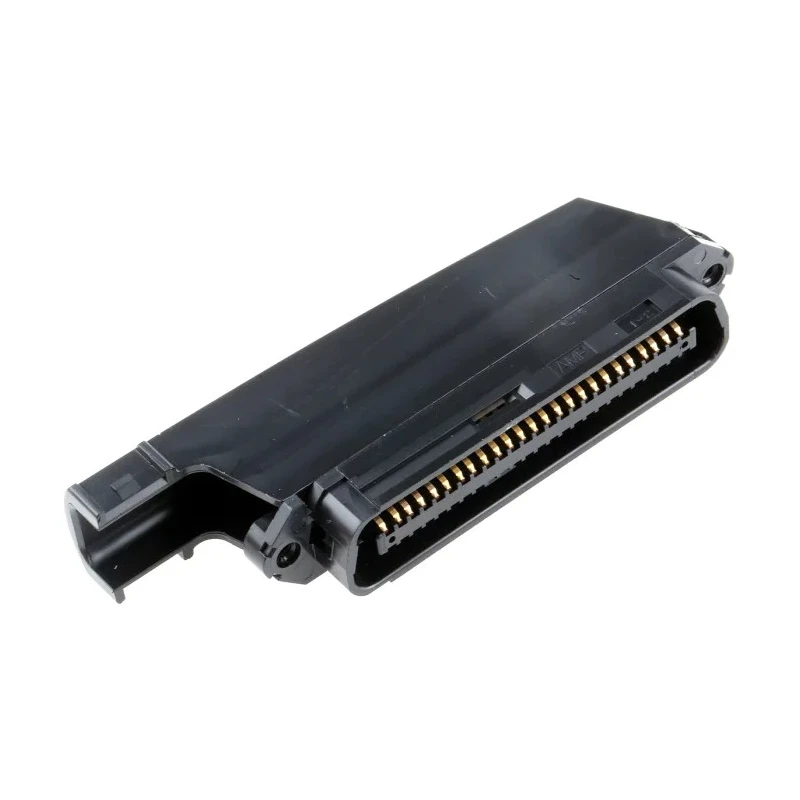

TE Connectivity 50-Way IDC Connector Male for Cable, 2 Row, 1A Current, 250V, Gold over Nickel Plating 5229912-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Polyphenylene Oxide |
| Contact Material | Copper |
| Series | CHAMP-LOK |
| Termination Type | IDC |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.16mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Compact 50-contact connector suitable for cable mounting.
- Consists of 2 rows with 2.16mm pitch for precise fitment.
- Shrouded male connector designed for reliable IDC termination.
- Operates between -40°C and 75°C temperature range.
- Right angle orientation allows versatile connection placement.
- Constructed with copper contacts and polyphenylene oxide housing for durability.
- Termination type is insulation displacement contact (IDC) for efficient assembly.
- Part of the CHAMP-LOK series by TE Connectivity ensuring compatibility and performance.
Product Description
TE Connectivity 5229912-1 is a 50-way IDC connector designed for cable applications with a male, shrouded, right angle form factor. It features 2 rows of contacts arranged with 2.16mm pitch, supporting an electrical current of up to 1 ampere at 250 volts. The contacts are constructed from copper with gold plating over nickel to ensure reliable conductivity and corrosion resistance. The housing is made of polyphenylene oxide, providing a durable insulating enclosure.
This connector operates within a temperature range of -40°C to 75°C, making it suitable for a variety of industrial and commercial electronic applications. Its insulation displacement contact (IDC) termination type allows for quick and reliable cable connections without soldering, facilitating efficient assembly processes in manufacturing environments.
Belonging to the CHAMP-LOK series, this connector ensures compatibility with mating PCB mount CHAMP connectors, enhancing design flexibility. Its right angle orientation is ideal for installations requiring space-saving cable routing and mechanical reliability. This product is widely used in industrial electronics, telecommunications equipment, and instrumentation systems.
Compact 50-contact connector suitable for cable mounting. Consists of 2 rows with 2.16mm pitch for precise fitment. Shrouded male connector designed for reliable IDC termination. Operates between -40°C and 75°C temperature range.
Right angle orientation allows versatile connection placement. Constructed with copper contacts and polyphenylene oxide housing for durability. Termination type is insulation displacement contact (IDC) for efficient assembly.
Part of the CHAMP-LOK series by TE Connectivity ensuring compatibility and performance. Gold plating over nickel enhances corrosion resistance and conductivity. Ideal for electronic components and wire housing applications.
This IDC Connector by TE Connectivity is engineered to boost production efficiency by providing ready-to-insert components for wiring assemblies. Its robust design and construction make it suitable for demanding industrial, laboratory, manufacturing, and telecommunications use cases.
Explore more specialized connectors and cable components under the Electronics & Electricals category at EnvMart to find compatible and related products tailored to your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector supports an electrical current of up to 1 ampere at a voltage of 250 volts.
It operates within a temperature range of -40°C to 75°C, making it suitable for various industrial applications.
The connector features 50 contacts arranged in 2 rows with a pitch of 2.16mm.
It utilizes insulation displacement contact (IDC) termination for efficient and reliable cable connections without soldering.
The contacts are made from copper with gold plating over nickel, while the housing is constructed from polyphenylene oxide.
This model has a right angle orientation, which allows for versatile connection placement in tight spaces.
Yes, it is part of the CHAMP-LOK series by TE Connectivity, ensuring compatibility with mating PCB mount connectors.
The connector features male contacts, designed for reliable connections in cable applications.
The housing is shrouded, providing additional protection and ensuring reliable termination.
This model is widely used in industrial electronics, telecommunications equipment, and instrumentation systems.
The connector is manufactured in India.
The gold plating over nickel enhances corrosion resistance and conductivity, ensuring reliable performance over time.
