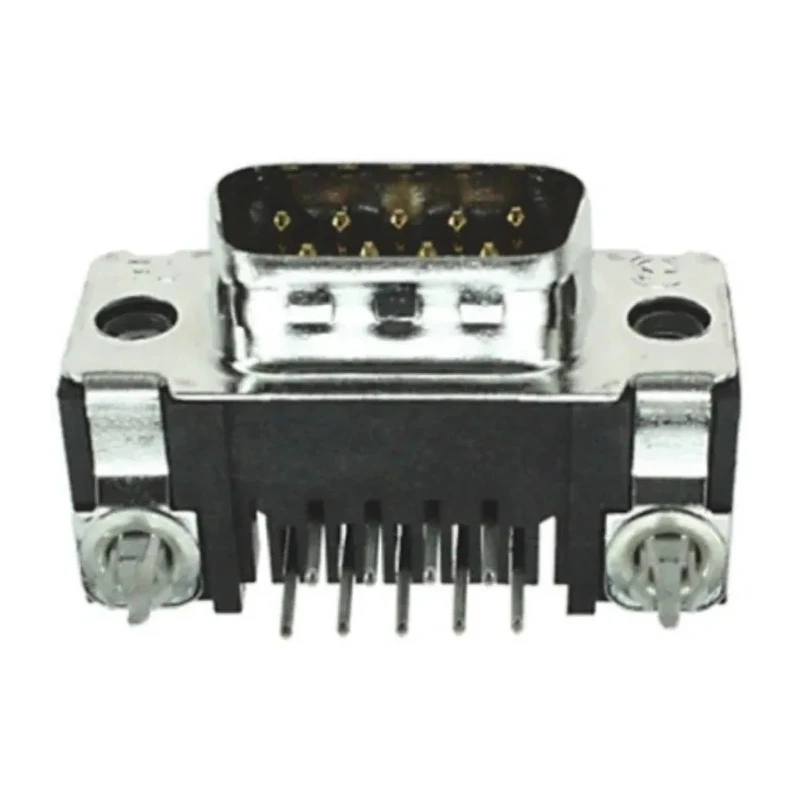

TE Connectivity AMPLIMITE HD-20 9 Way Right Angle 2.28 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Male 5788792-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | AMPLIMITE HD-20 |
| Mounting Hardware | 4 to 40 UNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.28mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
Key Features
- High-density 9 contact design ensures reliable signal connections.
- Right angle orientation suitable for PCB mounting in space-constrained applications.
- Durable nylon housing rated to 105°C maximum operating temperature.
- Brass contacts plated with gold over nickel for corrosion resistance and conductivity.
- Solder termination type facilitates strong electrical and mechanical connection.
- Compatible with a recommended PCB thickness up to 2.36 mm for optimal mounting.
- Features clear chromate plated zinc threaded inserts for secure hardware installation.
- Designed to meet industrial and electronic component standards without additional certifications.
Product Description
TE Connectivity 5788792-1 AMPLIMITE HD-20 9 Way Right Angle D-Sub Connector is engineered for high-density PCB mounting needs in industrial and electronic applications. This through hole connector features a 2.28 mm pitch and utilizes 4 to 40 UNC male mounting hardware, ensuring robust mechanical retention with easy solder termination.
The connector’s durable nylon housing supports a broad operating temperature range from -55°C to 105°C, making it suitable for environments with temperature variations. The contact system employs brass material with gold plating over nickel, offering excellent corrosion resistance and enhanced conductivity for reliable signal transmission.
This component incorporates a tin plated steel front shell and tin plated brass eyelets, contributing to its rugged construction and long-lasting performance. The clear chromate plated zinc threaded inserts enable secure fastening on PCBs and compatibility with various mounting hardware. Recommended for PCB thicknesses up to 2.36 mm, it provides versatility and ease of installation.
The AMPLIMITE HD-20 series connectors are widely used in industrial, computing, electronic manufacturing, and other technical fields requiring dependable D-sub connectivity. Their compliant design without special approvals prioritizes functional resilience and application flexibility.
High-density 9 contact design ensures reliable signal connections. Right angle orientation suitable for PCB mounting in space-constrained applications. Durable nylon housing rated to 105°C maximum operating temperature. Brass contacts plated with gold over nickel for corrosion resistance and conductivity.
Solder termination type facilitates strong electrical and mechanical connection. Features clear chromate plated zinc threaded inserts for secure mounting. Wide operating temperature range from -55°C to 105°C ensures environmental reliability.
Suitable for industrial, electronic, and computing equipment applications. Compatible with 4 to 40 UNC mounting hardware for secure installation.
This product is a new, high-quality connector solution offered by TE Connectivity under the AMPLIMITE HD-20 series. It is ideal for engineering teams and manufacturers seeking dependable D-Sub Connectors for varied industrial and electronics projects. Browse EnvMart's broad electronics connectors catalog for complementary components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this D-Sub connector is 2.28 mm.
This model has a maximum operating temperature of 105°C.
The contacts are made of brass and are plated with gold over nickel for enhanced conductivity and corrosion resistance.
It uses a solder termination type, which facilitates a strong electrical and mechanical connection.
The minimum operating temperature is -55°C.
This connector has a right angle orientation, making it suitable for PCB mounting in space-constrained applications.
It features a high-density design with 9 contacts.
This connector is compatible with 4 to 40 UNC mounting hardware for secure installation.
The housing is made of durable nylon, which supports a wide operating temperature range.
It is designed for use in industrial, electronic, and computing equipment applications that require reliable D-sub connectivity.
The recommended PCB thickness for optimal mounting is up to 2.36 mm.
This connector is manufactured in India.
