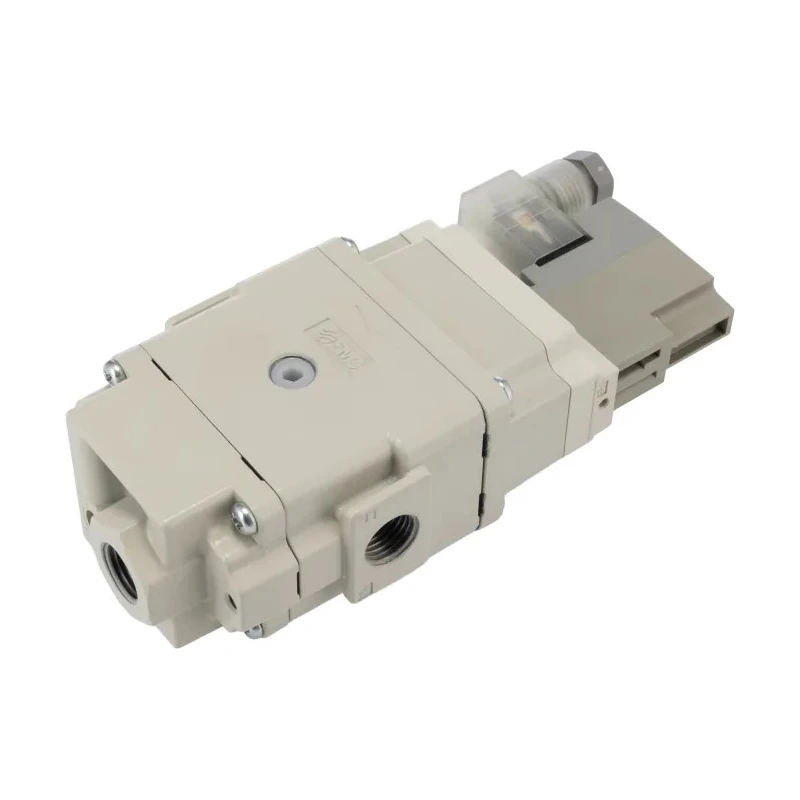

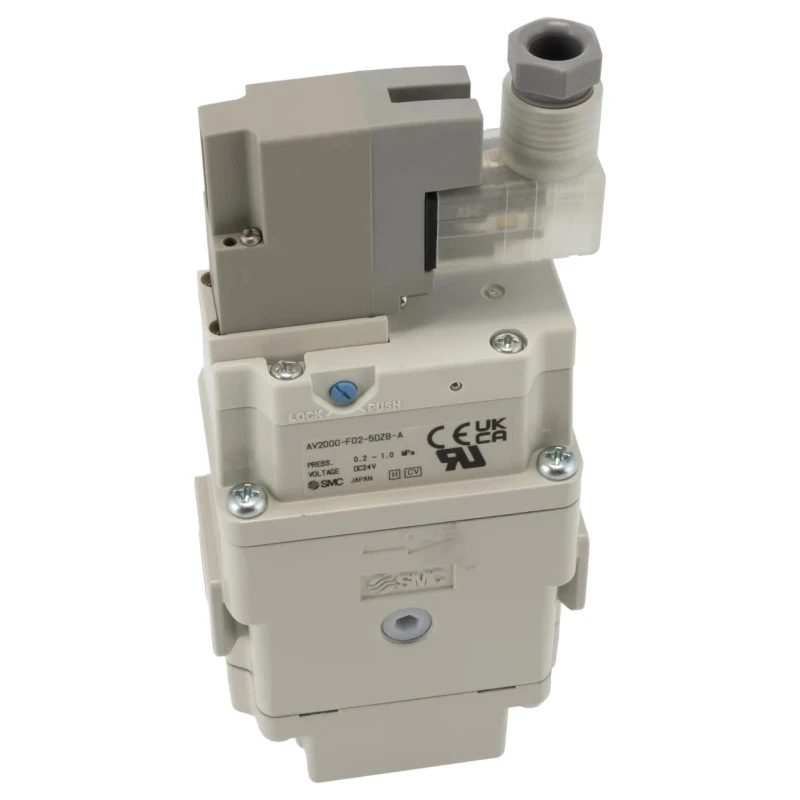

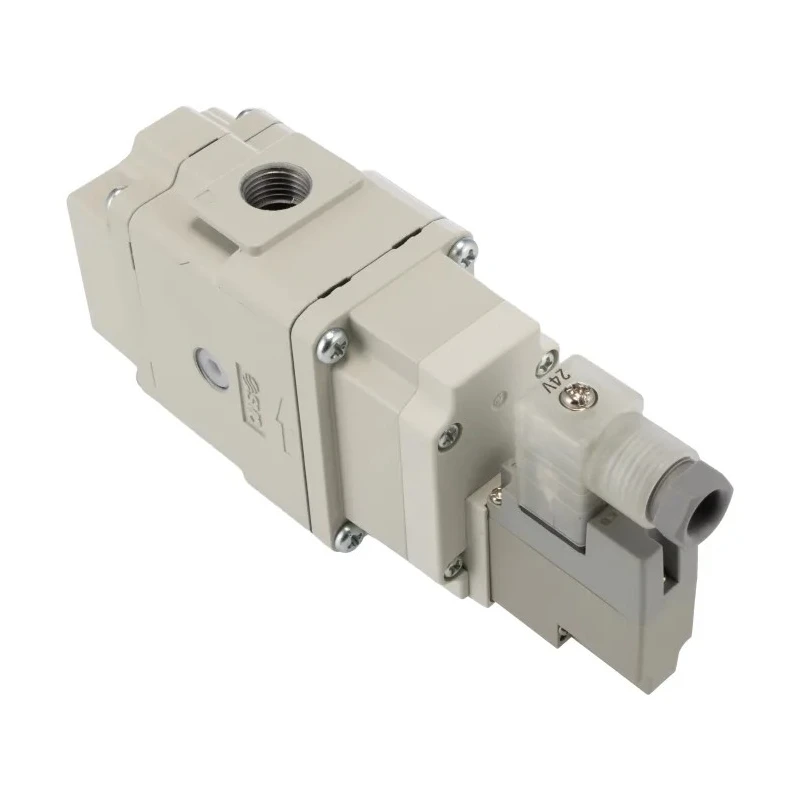

SMC Pneumatic Solenoid Valve Start-Up Valve G AV Series 24V dc 1/4 in Threaded Port AV2000-F02-5DZB-A

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve Start-Up Valve G AV Series 24V dc 1/4 in Threaded Port AV2000-F02-5DZB-A



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	1 Mpa
Height	66mm
Length	147.5mm
Model	AV2000-F02-5DZB-A
Width	40mm
Mount Type	Stand Alone
Series	AV
Number Of Ports	2
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	3
Port Size	1/4 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	0°C
Actuation Type	Start-Up Valve
Maximum Flow Rate	2433L/min
Standards/Approvals	CE
Connection Thread Standard	G
Minimum Pilot Pressure	0.2MPa
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.35W

Key Features

Compact design for soft-start control of air flow in automated systems.
Maximum flow rate of 2433 L/min ensures high-volume air handling.
Die Cast Aluminium body offers durability and corrosion resistance.
Nitrile Rubber (NBR) seal material provides reliable sealing with standard pneumatic media.
Operating pressure up to 1 MPa supports moderate-pressure pneumatic applications.
Electrical DIN connector and 0.35W coil power consumption enhance energy efficiency.
Rated for operation from 0°C to 50°C with IP65 dust protection for robust environmental resistance.
Manual push-locking slotted override allows local actuation and maintenance.

Product Description

SMC AV2000-F02-5DZB-A Pneumatic Solenoid Valve Start-Up Valve G AV Series is a compact and efficient pneumatic valve operating at 24V dc, featuring 1/4 inch threaded G standard ports and a durable die cast aluminium body.

This valve is engineered for soft-start air flow control in automated industrial systems, preventing supply surges and ensuring smooth operation of pneumatic actuators and main valves.

The valve supports a maximum flow rate of 2433 L/min and can operate across a temperature range from 0°C to 50°C. It is rated for a maximum operating pressure of 1 MPa with pilot pressure between 0.2 MPa and 1 MPa, suitable for a wide variety of moderate pressure pneumatic applications.

The nitrile rubber (NBR) seals provide high resistance to wear from standard pneumatic media, enhancing reliability and service life. Electrical power is optimized through a low power 0.35W coil and DIN connector for easy electrical integration.

Additional features include a three-position valve design with two ports and a manual push-locking override for local actuation and locking, facilitating setup and maintenance without electrical control.

With an ingress protection rating of IP65 for the connector and a proof pressure rating of 1.5 MPa, this valve withstands dust exposure and short-term overpressure conditions, making it suitable for industrial and manufacturing environments.

Compact design for soft-start control of air flow in automated systems. Maximum flow rate of 2433 L/min ensures high-volume air handling. Die Cast Aluminium body offers durability and corrosion resistance. Nitrile Rubber (NBR) seal material provides reliable sealing with standard pneumatic media.

Operating pressure up to 1 MPa supports moderate-pressure pneumatic applications. Electrical DIN connector and 0.35W coil power consumption enhance energy efficiency. Rated for operation from 0°C to 50°C with IP65 dust protection for robust environmental resistance.

Manual push-locking slotted override allows local actuation and maintenance. It is suitable for use in manufacturing, industrial automation, HVAC controls, water treatment facilities, and other pneumatic systems. Explore more pneumatic valves and automation components in the Industrial Supplies category at EnvMart.

Explore more products in our Pneumatic Solenoid Valves category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum flow rate of this model is 2433 L/min, ensuring high-volume air handling in pneumatic applications.

This valve supports a maximum operating pressure of 1 MPa and a minimum pilot pressure of 0.2 MPa, making it suitable for moderate-pressure applications.

The dimensions of this unit are 147.5 mm in length, 40 mm in width, and 66 mm in height.

It features a DIN connector for electrical connection, facilitating easy integration into existing systems.

The body is made of die cast aluminium, while the seal material is nitrile rubber (NBR), providing reliable sealing with standard pneumatic media.

The valve is rated for operation in temperatures ranging from 0°C to 50°C.

This model has two ports, designed for threaded connections.

The actuation type of this unit is a start-up valve, which is designed for soft-start control of air flow.

It has an ingress protection rating of IP65, providing dust protection and resistance to water exposure.

The solenoid power consumption is rated at 0.35W, enhancing energy efficiency during operation.

This valve is CE certified, indicating compliance with European safety and environmental requirements.

It is suitable for use in manufacturing, industrial automation, HVAC controls, and water treatment facilities among other pneumatic systems.
