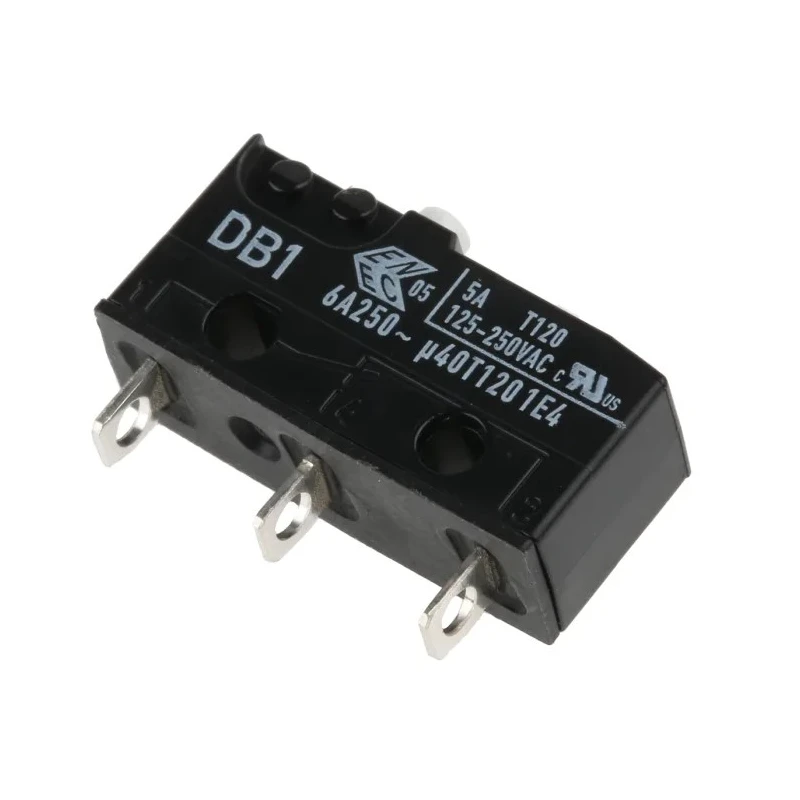

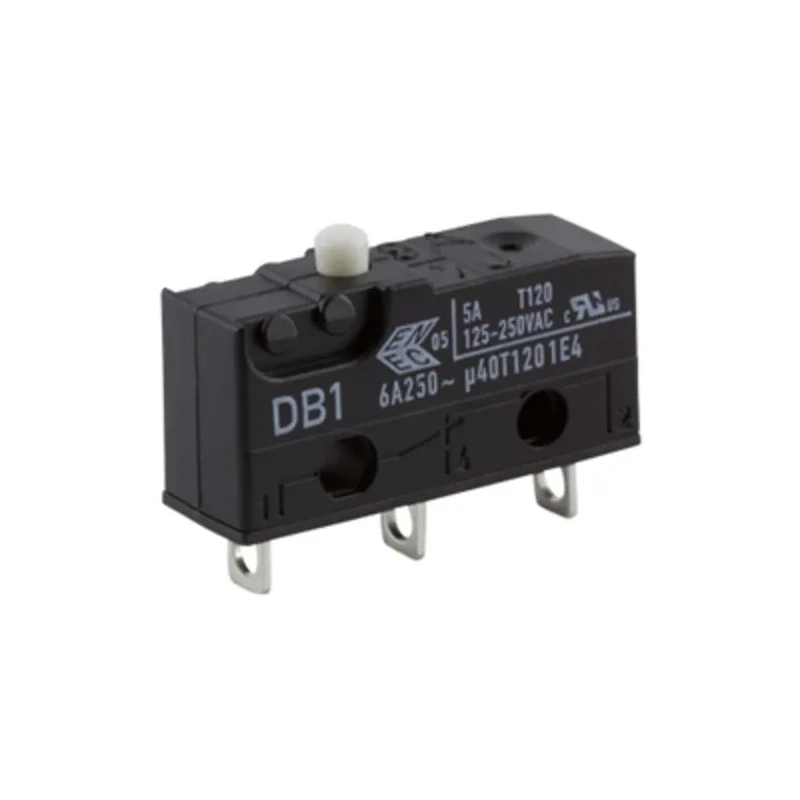

ZF Button Micro Switch, Solder Terminal, 6A, 250 V AC, SPDT Contact Configuration, IP50 Rated DB1C-A1AA
Specifications
| Country of Origin | India |
|---|---|
| Brand | ZF |
| Model | DB1C-A1AA |
| IP Rating | IP50 |
| Housing Material | Polyamide, Polyethylene Terephthalate |
| Series | DB1 |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Button |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Contact Current | 6A |
| Operating Force | 1.47N |
| Mechanical Life | 15000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | DB Subminiature |
Key Features
- The microswitch is equipped with a button actuator type for precise control.
- It has a housing made from polyamide and polyethylene terephthalate providing durability.
- Operating force is 1.47 newtons ensuring accurate actuation.
- The switch supports an operating temperature range from -40°C to 120°C.
- The mechanical life expectancy exceeds 15 million operations for long-term reliability.
- It carries multiple safety certifications including RoHS, UL, CSA, VDE, and KEMA.
- The device is rated for 250 V AC contact voltage for various industrial uses.
- IP50 rating protects internal components from dust ingress supporting demanding environments.
Product Description
The ZF DB1C-A1AA Button Micro Switch is a robust and highly reliable component designed for industrial and automation applications, rated for 6A at 250 V AC with a solder terminal for easy PCB mounting.
This switch features a spherical button actuator, delivering precision and repeatability with an operating force of 1.47N. Its compact DB subminiature type construction combines durability with a compact form factor suitable for space-limited assemblies.
The housing is constructed from polyamide and polyethylene terephthalate to provide mechanical strength and chemical resistance. It supports a wide operating temperature range from -40°C to +120°C, accommodating demanding environmental conditions.
With an IP50 ingress protection rating, the switch is safeguarded against dust intrusion, making it ideal for general industrial, electrical, and automation systems requiring reliable switching performance.
The mechanical lifespan surpasses 15 million operations, ensuring excellent longevity in high-cycle applications. Certified for compliance to RoHS and several international standards (UL, CSA, VDE, KEMA, SEMKO, DEMKO, NEMKO, OVE, BEAB, SETI), this switch meets rigorous quality and safety norms.
Button actuator type for precise actuation. Solder terminal for reliable PCB connection. 6A contact rating at 250 V AC for versatile power handling. High mechanical life over 15 million operations. Wide temperature operation from -40°C to 120°C.
Robust housing material ensures durability. IP50 ingress protection for dust resistance. Certified safety and environmental compliance. Ideal for industrial automation and control applications. This Micro Switch is a preferred choice for manufacturers in electronics, industrial automation, HVAC, and related fields where precise, high-reliability switching is essential.
Explore EnvMart’s extensive catalog for ZF switches and related components to support your industrial and automation projects with confidence and quality assurance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching applications.
This model can operate at a maximum temperature of 120°C, making it suitable for a range of demanding environments.
The mechanical life expectancy of this micro switch exceeds 15 million operations, ensuring long-term reliability in high-cycle applications.
The housing is constructed from polyamide and polyethylene terephthalate, providing mechanical strength and chemical resistance.
It is rated for 6A at 250V AC, making it suitable for various industrial applications.
The switch has an IP50 rating, which protects internal components from dust ingress, suitable for general industrial use.
The operating force for this micro switch is 1.47 newtons, ensuring precise actuation.
This micro switch utilizes a button actuator type, which allows for precise control during operation.
The switch operates within a temperature range of -40°C to 120°C, accommodating various environmental conditions.
Yes, it is certified for compliance with RoHS and several international safety standards including UL, CSA, and VDE.
This model features a solder terminal, which allows for reliable PCB mounting and connection.
This micro switch is ideal for industrial automation and control applications, where reliable switching performance is essential.
