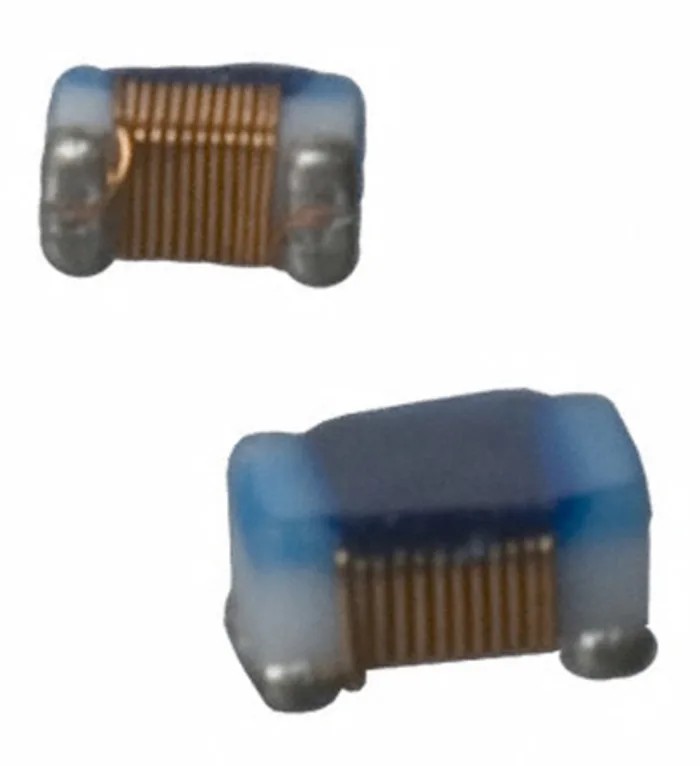

Murata Wirewound Surface Mount Inductor 0.039 μH ±5 % 250 mA Idc 3.0 GHz Q:25 Non-Magnetic Core LQW15AN39NJ00D

Free Delivery in India | Lowest Global Shipping Charges

Murata Wirewound Surface Mount Inductor 0.039 μH ±5 % 250 mA Idc 3.0 GHz Q:25 Non-Magnetic Core LQW15AN39NJ00D

Name: Murata Wirewound Surface Mount Inductor 0.039 μH ±5 % 250 mA Idc 3.0 GHz Q:25 Non-Magnetic Core LQW15AN39NJ00D
Brand: Murata
SKU: 183310
Price: 0.1 USD
Availability: InStock



Category Surface Mount Inductor Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Height	0.5mm
Length	1mm
Model	LQW15AN39NJ00D
Depth	0.5mm
Packaging	Paper Tape
Series	LQW
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Core Material	Non-Magnetic Core
Inductance	0.039μH
Standards/Approvals	RoHS
Package/Case	1005
Maximum DC Current	250mA
Pin Count	2
Maximum DC Resistance	700mΩ
Inductance Tolerance	±5 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	3.0GHz
Minimum Quality Factor	25
Inductor Construction	Wirewound

Key Features

Compact 1005 package size measuring 1 mm length by 0.5 mm height and depth.
Non-magnetic core material for reliable performance in RF applications.
Operates efficiently up to 125°C maximum temperature.
Low DC resistance of 700 mΩ enables minimal power loss.
High quality factor (Q) of 25 ensures excellent signal integrity.
Maximum self-resonant frequency of 3.0 GHz for high-frequency circuits.
Surface mount termination style suitable for automated PCB assembly.
Wirewound construction provides enhanced current handling capability.

Product Description

Murata LQW15AN39NJ00D wirewound surface mount inductor delivers precise inductance of 0.039 μH with ±5% tolerance, tailored for high-frequency and RF electronic applications. Featuring a non-magnetic core and wirewound construction, this inductor supports a maximum DC current of 250 mA and offers a high quality factor (Q) of 25, ensuring low signal loss and effective attenuation characteristics within pass-band filters.

The compact 1005 package dimensions of 1 mm length and 0.5 mm height and depth make it ideal for dense surface mount technology assemblies. Its low DC resistance of 700 mΩ minimizes power dissipation, while the maximum operating temperature rating of 125°C ensures reliability under demanding conditions.

With a maximum self-resonant frequency of 3.0 GHz, this inductor efficiently supports high-frequency signals commonly used in antenna matching and choke circuits. The surface mount termination style allows for seamless integration into automated PCB manufacturing lines.

Manufactured in Japan, the Murata LQW Series inductors comply with RoHS standards and are supplied on paper tape packaging to facilitate streamlined production. This component is ideal for use in telecommunications, industrial electronics, consumer devices, and other applications requiring compact, high-performance inductors.

Compact 1005 package dimensions support dense PCB layouts. High Q value ensures superior filter performance and signal quality. Low DC resistance supports efficient power usage. Non-magnetic core enables stable inductance at high frequencies.

Wide operating temperature range suitable for industrial environments. Surface mount termination for automated assembly processes. RoHS compliant and manufactured to high quality standards. Wirewound construction enhances current handling capability.

Packaged on paper tape for manufacturing convenience. High self-resonant frequency supports RF applications.
