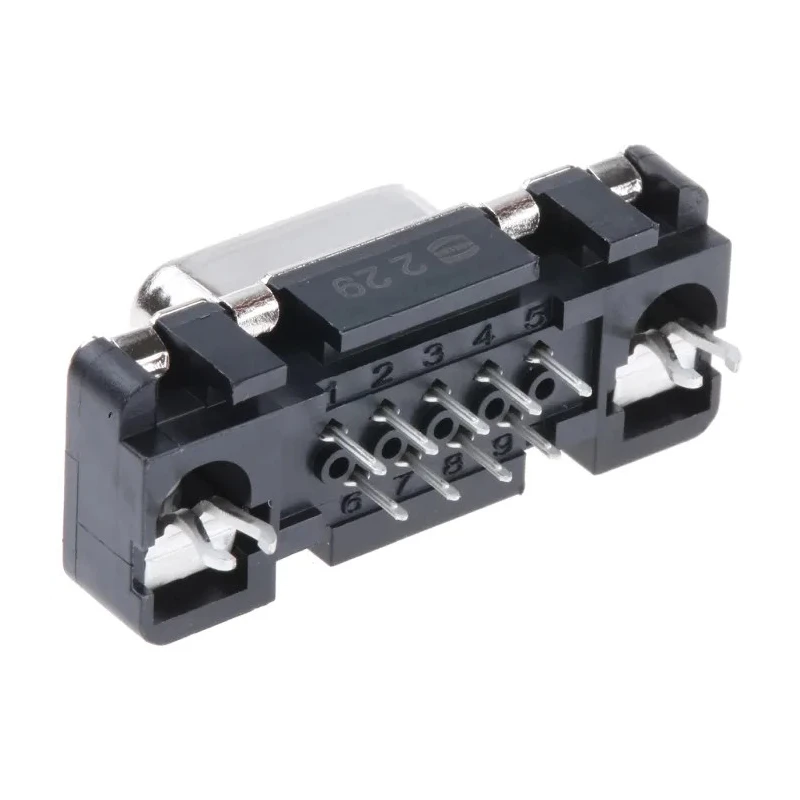

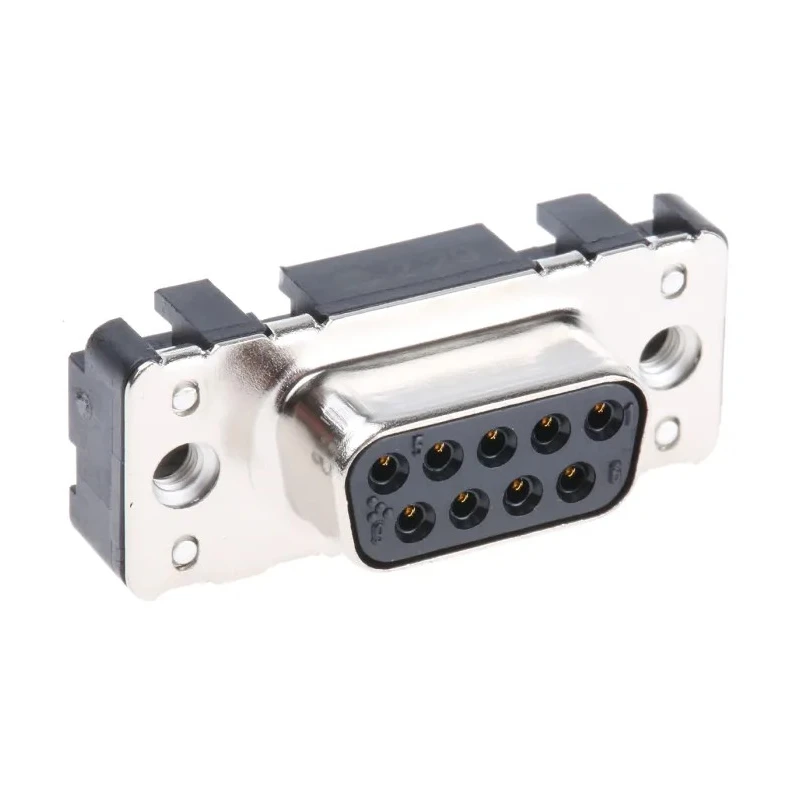

HARTING D-Sub 9 Way Straight 2.74 mm Pitch Through Hole Steel Housing Female Connector 09661516512
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Current | 7.5A |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Mounting Hardware | 4 to 40 UNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DS-1 |
Key Features
- The connector provides 9 female contacts with gold-plated copper alloy for corrosion resistance.
- Steel housing ensures robust protection and grounding capability.
- Mount type is through hole with 4 to 40 UNC mounting hardware for secure attachment.
- Rated for 1kV voltage and 7.5A current operation with temperature range from -55°C to 125°C.
- Designed for use in electronic components, power and signal transmission applications.
- Features stamped solder pins and metal shell compliant with IEC 60807 standards.
- Ideal for industrial, electronic, and instrumentation use requiring compact D-sub connectors.
- The connector offers a compact 9 contact arrangement with precise 2.74 mm pitch spacing.
Product Description
HARTING 09661516512 is a D-Sub 9 Way Straight Through Hole Connector featuring a 2.74 mm pitch, designed for secure and reliable electrical connections in industrial and electronic applications.
This connector utilizes a robust steel housing to provide mechanical protection and ensure electromagnetic compatibility. It has 9 female contacts made from copper alloy with a gold plating to guarantee durable conductivity and corrosion resistance.
The connector is designed for through-hole mounting, secured with 4 to 40 UNC threaded mounting hardware, providing firm attachment to circuit boards or panels.
Electrical ratings include a voltage capacity of 1 kV and a current rating of 7.5 A, suitable for various power and signal transmission uses. The operational temperature range spans from -55°C to 125°C, enabling functionality in harsh environments.
Termination is by solder type, and the connector complies with IEC 60807 standards, ensuring compatibility with standard D-sub applications. Its stamped solder pins and metal shell design enhance ease of installation and durability.
Typical use cases include electronic equipment manufacturing, industrial automation systems, instrumentation, and any scenario requiring reliable multi-contact connectors with compact size and high performance.
The connector offers a compact 9 contact arrangement with precise 2.74 mm pitch spacing. Gold-plated copper alloy contacts ensure long-term conductivity and resistance to oxidation. Steel housing supports mechanical durability and proper grounding.
Suitable for operating temperatures from -55°C to 125°C for robust performance. Rated to operate at 1 kV voltage and 7.5 A current, meeting industry requirements. Browse our full range of electronic connectors on EnvMart for optimized solutions for your industrial and commercial projects.
Explore more products in our D-Sub Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 1 kV.
It has a current rating of 7.5 A.
The connector features a pitch size of 2.74 mm.
It is designed for through-hole mounting with 4 to 40 UNC mounting hardware.
The housing is made of steel, and the contacts are copper alloy with gold plating for corrosion resistance.
It operates within a temperature range of -55°C to 125°C.
This model features 9 female contacts.
The connector utilizes a solder termination type.
Yes, it complies with IEC 60807 standards.
This connector has a straight orientation.
It is classified as D-Sub shell size DS-1.
The country of origin for this product is India.
