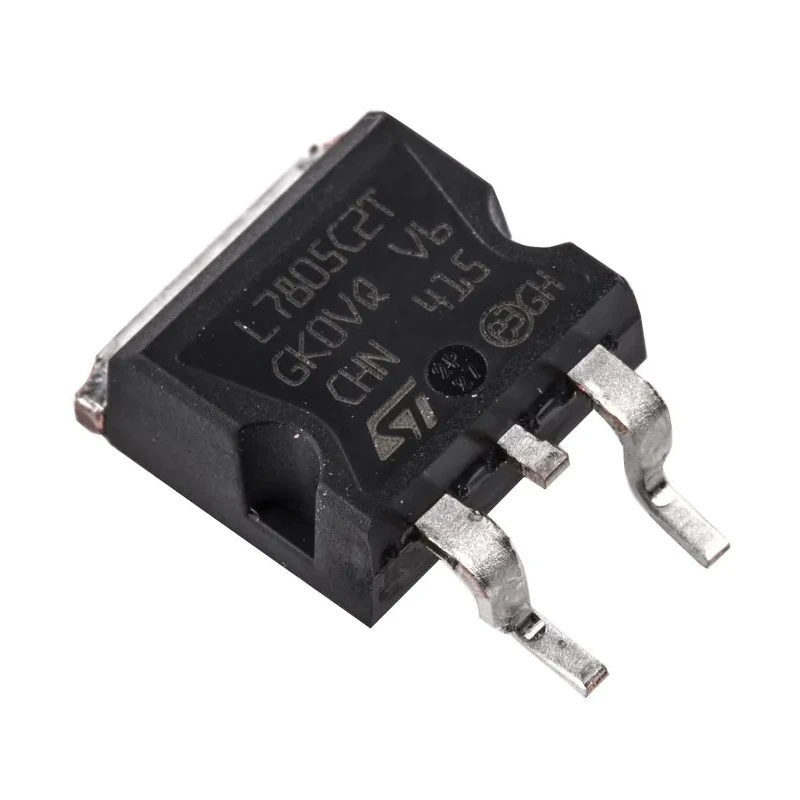

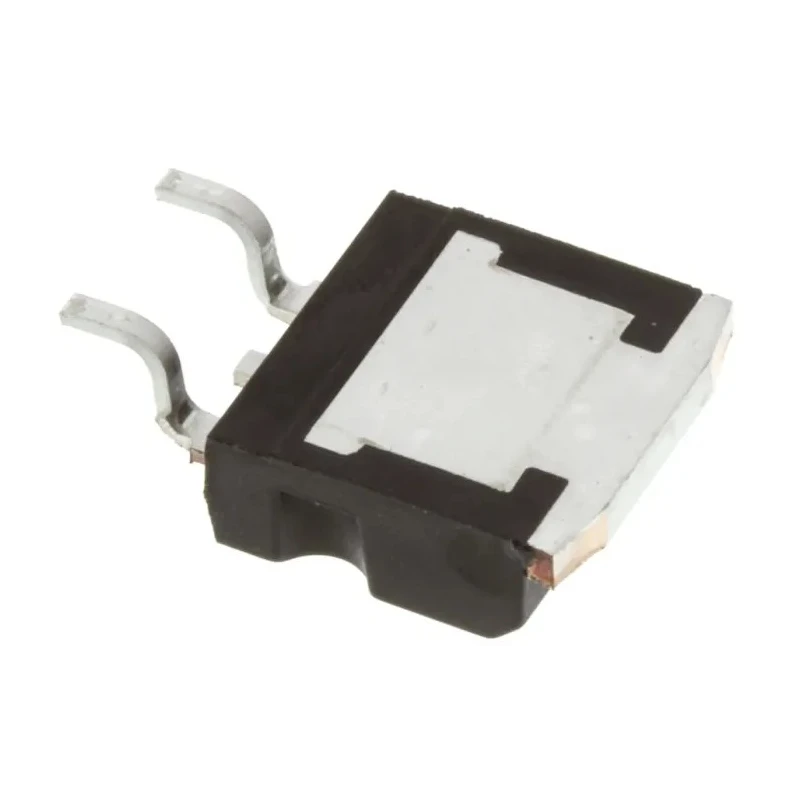

STMicroelectronics Surface Mount Positive Voltage Regulator 35V 3-Pin L7805CD2T-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics L7805CD2T-TR, Voltage Regulator 35V 3-Pin RS Stock |
| Brand | STMicroelectronics |
| Height | 4.6mm |
| Length | 10.4mm |
| Model | L7805CD2T-TR |
| Width | 9.35mm |
| Mount Type | Surface |
| Series | L78xx |
| Maximum Operating Temperature | 150°C |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 8mA |
| Pin Count | 3 |
Key Features
- Provides fixed output voltage regulation with local on-card regulation capability.
- Supports maximum input voltage of 35V and maximum operating temperature of 150°C.
- Features thermal overload and output transition safe area protection.
- Compact dimensions with length 10.4mm, width 9.35mm, and height 4.6mm suitable for surface mount.
- Ideal for use in power management applications requiring reliable, linear voltage regulation.
- Low quiescent current of 8mA ensures efficient performance.
- Compatible with a wide range of electronics industries and devices.
Product Description
STMicroelectronics L7805CD2T-TR voltage regulator is a surface mount positive linear Voltage Regulator IC designed to provide fixed output voltage regulation in electronic applications. It is capable of delivering up to 1.5A output current while supporting a maximum input voltage of 35V. The device measures 10.4mm in length, 9.35mm in width, and 4.6mm in height, making it well suited for surface mount PCB assemblies.
Featuring internal thermal shutdown and output transition safe area protection, the L7805CD2T-TR ensures reliable operation under varying load conditions by protecting the device from thermal overloads and current spikes. With a low quiescent current of 8mA, it offers efficient voltage regulation that enhances power management in various electronic circuits.
This voltage regulator forms part of the L78xx series from STMicroelectronics and is widely used across industrial, manufacturing, and consumer electronics sectors. Its positive polarity and 3-pin configuration simplify integration onto printed circuit boards for linear voltage regulation tasks.
Provides fixed output voltage regulation with local on-card regulation capability. Supports maximum input voltage of 35V and maximum operating temperature of 150°C. Features thermal overload protection and output transition safe area protection.
Compact surface mount package measuring 10.4 x 9.35 x 4.6mm. Delivers up to 1.5A output current suitable for various electronic applications. Low quiescent current of 8mA ensures energy-efficient operation. Positive polarity and 3-pin design for easy PCB mounting.
This product is ideal for industrial electronics, power supply designs, embedded system voltage regulation, and general electronic device power management. It enables consistent voltage delivery for sensitive components and aids in maintaining stable operation in demanding electronic environments.
Explore the broad selection of semiconductor components and power management ICs at EnvMart to find compatible devices and accessories for your electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this voltage regulator is 35V.
It can deliver up to 1.5A output current.
The dimensions are 10.4mm in length, 9.35mm in width, and 4.6mm in height.
The quiescent current is 8mA, ensuring efficient performance.
The maximum operating temperature is 150°C.
This model supports surface mounting.
It features thermal overload protection and output transition safe area protection.
The voltage regulator has a positive polarity.
This model is part of the L78xx series from STMicroelectronics.
Yes, it is ideal for power management applications requiring reliable, linear voltage regulation.
The L7805CD2T-TR has a 3-pin configuration.
The country of origin for this product is India.
