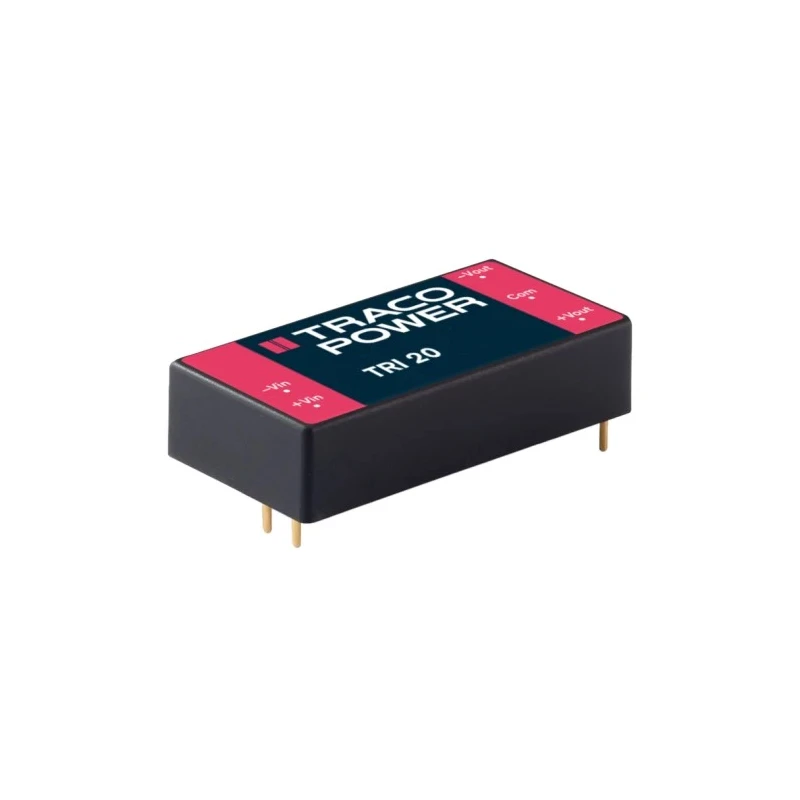

TRACOPOWER DC/DC Converter 24V Output 840mA 20W Through Hole DIP Package TRI 20-1215
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRI 20 DC/DC Converter, 24V dc/ 840 mA |
| Brand | TRACOPOWER |
| Efficiency | 89% |
| Length | 50.8mm |
| Model | TRI 20-1215 |
| Depth | 12mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | TRI 20 |
| Maximum Operating Temperature | 76°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1087000h |
| Number of outputs | 1 |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 5 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 840mA |
| Isolation Voltage | 5.94kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Supports input voltage range from 9V dc minimum to 18V dc maximum.
- High efficiency of 89% ensures minimal energy loss during operation.
- Operating temperature ranges from -40°C to 76°C suitable for harsh environments.
- Reinforced isolation of 4200 VAC rated for 1000 VAC working voltage for enhanced safety.
- Compact dimensions with length 50.8mm, width 25.4mm and depth 12mm in DIP package.
- Product constructed with ultra-high isolation peak voltage of 8000 VDC lasting 1 second.
- Includes protection against overload, overvoltage, and short circuit conditions.
- MTBF of 1,087,000 hours guarantees long-term reliability in critical systems.
Product Description
TRACOPOWER TRI 20-1215 is an industrial-grade DC/DC converter designed for reliable power conversion in electronic systems. With a regulated output voltage of 24V dc at a current of 840mA and a maximum output power of 20W, this converter is ideal for applications requiring stable, isolated power supply.
The product features a through hole DIP package type with a compact form factor measuring 50.8mm in length, 25.4mm in width, and 12mm in depth, facilitating easy integration onto printed circuit boards via its 5 pins. It supports dual input ranges between 9V and 18V dc with a 2:1 input ratio, providing flexible voltage conditions.
Its reinforced I/O isolation rated at 4200 VAC and ultra-high isolation peak voltage of 8000 VDC (for 1 second duration) ensure high safety standards and noise immunity. The converter operates efficiently at 89%, maintaining low power consumption between 240 and 480 mW during no-load conditions, making it suitable for energy-sensitive systems.
Engineered to operate reliably over a temperature range of -40°C to +76°C, the TRI 20-1215 is designed to withstand harsh industrial and commercial environments. It includes multiple protective features such as overload, overvoltage, and short circuit protection for enhanced operational safety.
With an MTBF of 1,087,000 hours, this DC/DC Converter promises long-term durability and stable performance in electronics, manufacturing equipment, industrial automation, and power supply applications.
Supports input voltage range from 9V dc minimum to 18V dc maximum. Reinforced isolation for safety and noise immunity. Compact DIP through-hole package for easy PCB mounting. High efficiency and low power consumption. wide operating temperature range including extremes.
MTBF ensures reliable long-term use. Protection from overload, overvoltage, and short circuit. Ideal for industrial and commercial DC power supply needs. Explore more products in the Electronics & Electricals category at EnvMart for quality power conversion and electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TRI 20-1215 provides a regulated output voltage of 24V DC at a current of 840mA.
It supports an input voltage range from 9V DC to 18V DC with a 2:1 input ratio.
This model has compact dimensions of 50.8mm in length, 25.4mm in width, and 12mm in depth.
The TRI 20-1215 operates with an efficiency of 89%, ensuring minimal energy loss during operation.
The maximum output power of this converter is 20W.
It comes in a DIP (Dual In-line Package) format, suitable for through-hole mounting.
This model includes protection against overload, overvoltage, and short circuit conditions for enhanced safety.
The TRI 20-1215 operates reliably over a temperature range of -40°C to +76°C.
This DC/DC converter has one output.
It features reinforced isolation with a voltage rating of 4200 VAC and an ultra-high isolation peak voltage of 8000 VDC for 1 second.
The mean time between failures (MTBF) for this model is 1,087,000 hours, indicating long-term reliability.
The TRI 20-1215 is manufactured in Taiwan.
