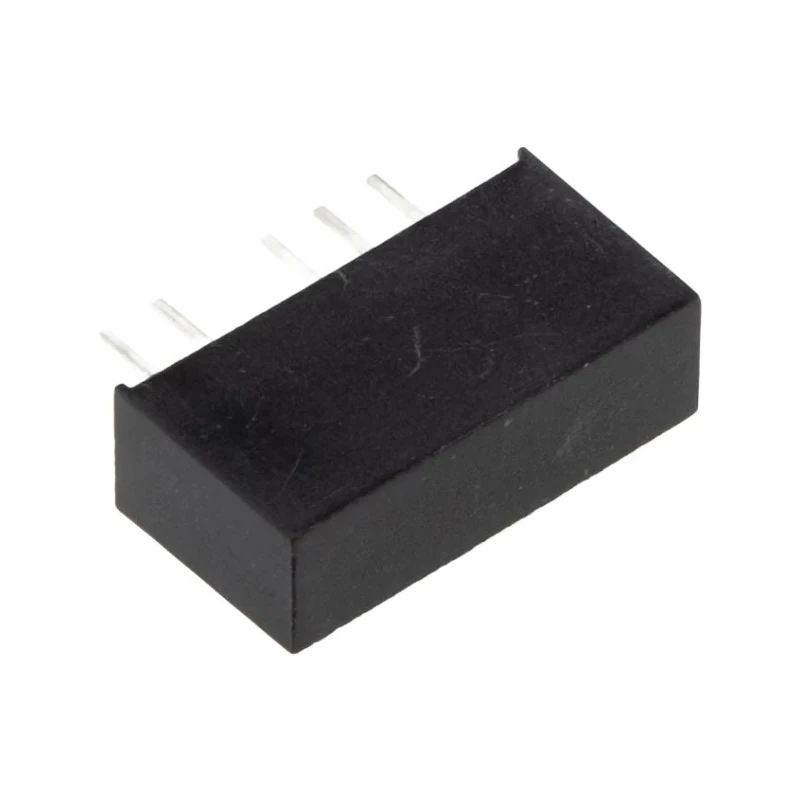

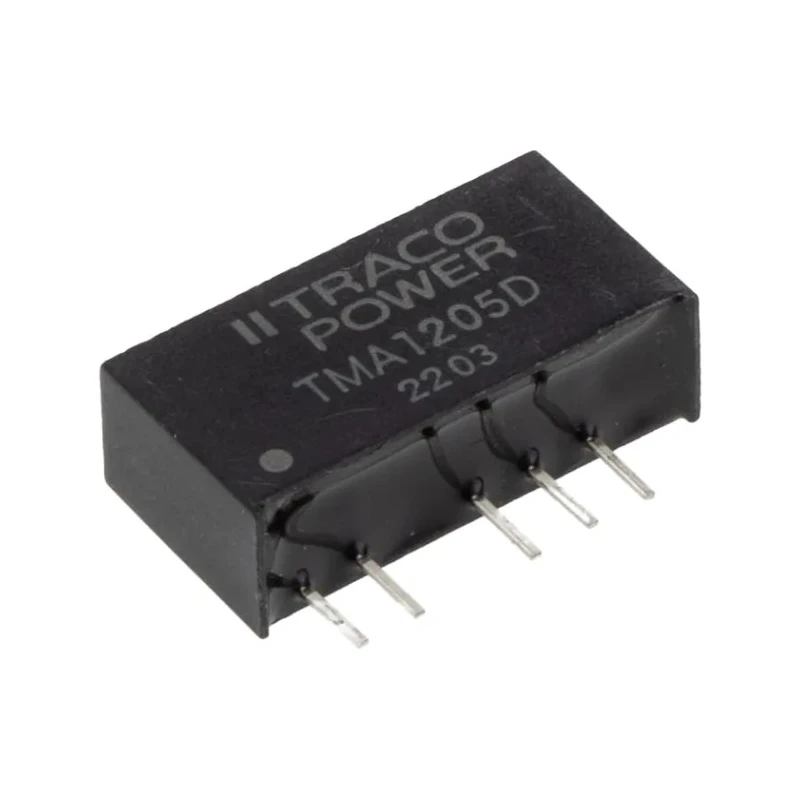

TRACOPOWER 1W SIP Single/Dual Output Unregulated Isolated DC/DC Converter TMA 1205D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMA DC/DC Converter, 5V, -5 V/ 100 mA |
| Brand | TRACOPOWER |
| Efficiency | 74% |
| Length | 19.5mm |
| Model | TMA 1205D |
| Depth | 10.2mm |
| Mount Type | PCB |
| Series | TMA |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 5000000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5V dc |
| Minimum Input Voltage | 0V |
| Number of Pins | 6 |
| Output Voltage 1 | 5, -5V |
| Output Current 1 | 100mA |
| Output Voltage Adjustment Range | 0/5 V |
| Isolation Voltage | 1kV dc |
Key Features
- Single-in-line package with 6 pins for easy PCB mounting.
- Offers dual outputs of 5V and -5V with a total output current of 100mA.
- High isolation voltage of 1kV DC ensures reliable operation.
- Operating temperature range from -40°C up to +85°C for harsh environments.
- High reliability with a Mean Time Between Failure (MTBF) of 5,000,000 hours.
- Achieves an efficiency of 74% for power-saving operation.
- Lead-free and RoHS compliant for environmental safety.
Product Description
TRACOPOWER TMA 1205D is a high-performance 1 Watt Single In-line Package (SIP) DC/DC converter designed for isolated power supply applications requiring compact size and reliable operation. It provides dual unregulated outputs of +5V and -5V at 100mA current, ideal for low power electronics and industrial control systems.
This converter features a robust isolation voltage rating of 1kV DC, ensuring protection against electrical noise and interference. It is optimized for efficiency at 74%, reducing energy loss and heat generation suitable for continuous operation in embedded systems.
The device operates effectively in extreme temperature conditions ranging from -40°C to +85°C, making it suitable for industrial, automotive, and outdoor electronic applications. Its compact SIP package with 6 pins allows easy PCB integration, saving valuable board space in designs with tight constraints.
With an exceptionally long MTBF of 5 million hours, the TMA 1205D offers enhanced system reliability over long duty cycles. The module supports mounting directly on a PCB and meets environmental standards with its lead-free design and compliance with RoHS directives.
Compact SIP package with 6-pin configuration for easy mounting and minimal board footprint. Dual outputs of 5V and -5V suited for diverse electronic circuits. High isolation voltage of 1kV DC safeguards connected circuitry.
Wide operating temperature range from -40°C to +85°C for versatile deployment. 74% efficiency to optimize power usage and reduce thermal load. Robust reliability guaranteed by a MTBF of 5 million hours. Lead-free and RoHS compliant, advancing environmental and safety standards.
This DC/DC converter is ideal for electronics, industrial control systems, telecommunications, and instrumentation fields requiring isolated power conversion with minimal space requirements. Its high reliability and temperature tolerance make it suitable for harsh industrial and commercial environments.
Explore EnvMart’s extensive selection of quality DC/DC Converters including TRACOPOWER models, tailored to meet diverse industrial and electronic system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual outputs of +5V and -5V.
The maximum output power of the TMA 1205D is 1W.
It operates effectively within a temperature range of -40°C to +85°C.
The TMA 1205D achieves an efficiency of 74%.
This converter features a high isolation voltage of 1kV DC.
It has two outputs.
The TMA 1205D measures 19.5mm in length and 10.2mm in depth.
This model is designed for PCB mounting.
The TMA 1205D has an MTBF of 5,000,000 hours.
The minimum input voltage is 0V.
Yes, it is lead-free and RoHS compliant, ensuring environmental safety.
The maximum input voltage for the TMA 1205D is 5V DC.
