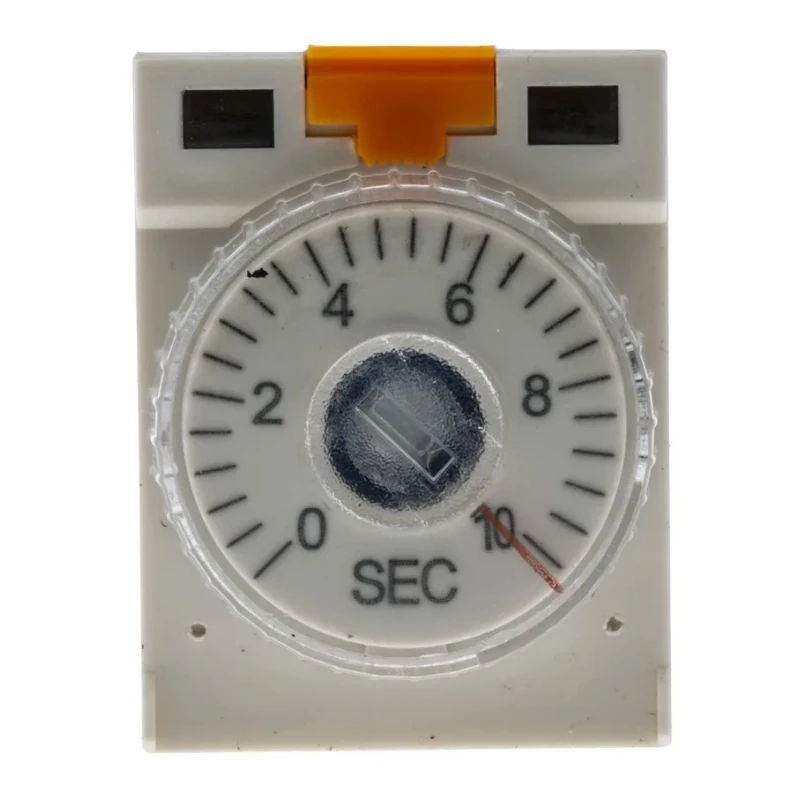

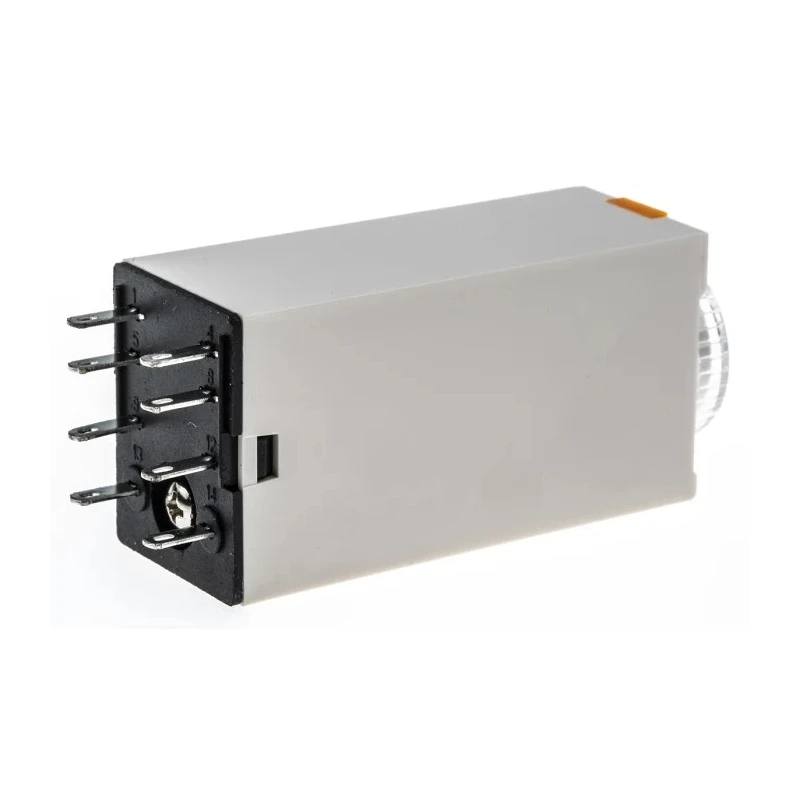

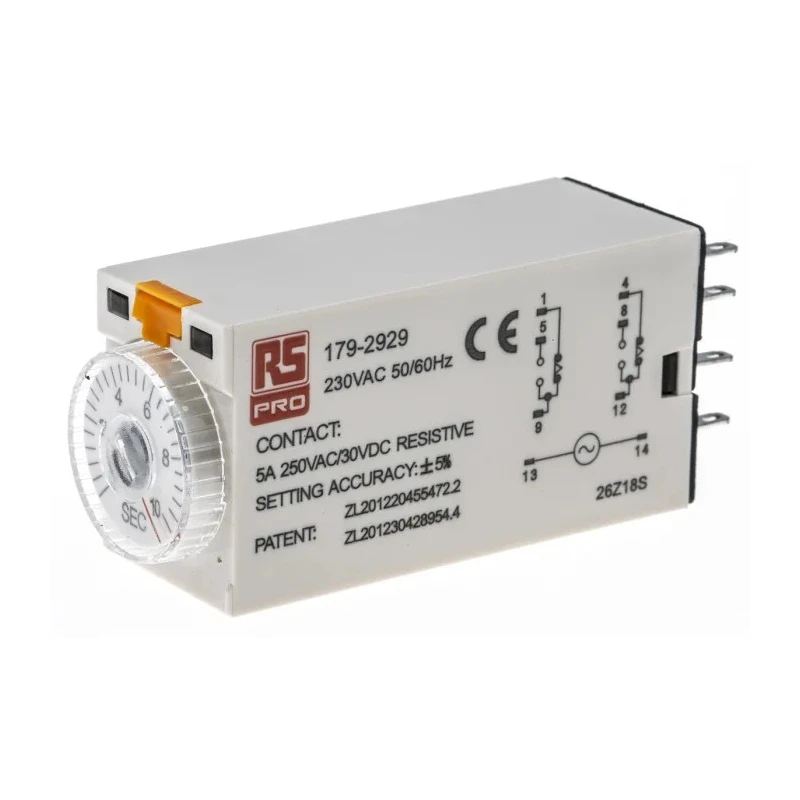

RS PRO Timer Relay 2-Contact 230V AC 0.5 to 10 s ON Delay DPDT Switch Configuration 179-2929
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 2.8mm |
| Length | 53mm |
| Model | 179-2929 |
| Mode | ON Delay |
| Width | 21.5mm |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.5 to 10 s |
| Terminal type | 8-Pin |
| Standards/Approvals | RoHS |
| Number of Contacts | 2 |
| Number of Timer Functions | 1 |
| Switching Voltage | 250V ac |
| Contact Current | 5A |
| Timing Adjustment | Dial |
| Supply AC Voltage | 230V ac |
| Suitable sockets for the 8-pin and 14-pin timer relays from this series are | 121-7802 or 121-7803 (Note: The sockets are supplied with a metal clip.) |
Key Features
- Operates on 230V AC supply voltage for reliable timing functions.
- Offers ON Delay mode to control the timing sequence accurately.
- Features 2-contact DPDT configuration with a 5A contact current rating.
- Timing range adjustable via a dial from 0.5 up to 10 seconds.
- 8-pin plug-in terminal design for easy installation and replacement.
- Compact dimensions with a length of 53mm, width of 21.5mm, and height of 2.8mm.
- Operating temperature range from -10°C to 55°C ensuring performance stability.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
RS PRO 179-2929 Timer Relay is a precision electrical relay designed for time-delay control applications operating on a 230V AC supply. This 2-contact timer relay features an ON Delay timing function with an adjustable time range from 0.5 to 10 seconds via a dial, suitable for industrial and automation control systems.
Equipped with an 8-pin plug-in terminal type and DPDT contact configuration, it supports a contact current of 5A and switching voltage up to 250V AC. The compact form factor measuring 53mm in length, 21.5mm in width, and 2.8mm in height allows for space-efficient integration in relay panels and control boxes.
The relay is RoHS compliant, ensuring it meets environmental safety standards. It is designed to operate reliably within a temperature range of -10°C to 55°C, providing durability in various industrial and commercial environments.
Suitable applications include industrial automation, electrical control panels, machine control circuits, and HVAC systems. Compatible relay sockets available are RS PRO part numbers 121-7802 and 121-7803, both supplied with metal clips for secure mounting.
Operates on 230V AC supply voltage for reliable timing functions. Provides an ON Delay mode for precise time-controlled switching. Includes 2-contact DPDT switch configuration rated for 5A contact current. Adjustable timing range from 0.5 to 10 seconds via analogue dial.
8-pin plug-in terminal design for modular installation. Compact size for easy integration within control panels. RoHS certified to ensure compliance with environmental standards. Operating temperature range from -10°C to 55°C for diverse conditions.
Compatible with specified RS PRO relay sockets for enhanced installation. Explore more RS PRO Timer Relays and related automation components on EnvMart for reliable industrial and electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timing range of this timer relay is adjustable from 0.5 to 10 seconds.
It features a 2-contact DPDT (Double Pole Double Throw) configuration.
This timer relay operates on a supply voltage of 230V AC.
The maximum contact current rating is 5A.
The dimensions are 53mm in length, 21.5mm in width, and 2.8mm in height.
It operates within a temperature range of -10°C to 55°C.
The timing adjustment is made via a dial on the unit.
It uses an 8-pin plug-in terminal design for easy installation.
Yes, it is compliant with RoHS standards, ensuring environmental safety.
The switching voltage capability is up to 250V AC.
Compatible sockets include RS PRO part numbers 121-7802 and 121-7803, both supplied with metal clips for secure mounting.
It is suitable for applications in industrial automation, electrical control panels, machine control circuits, and HVAC systems.
