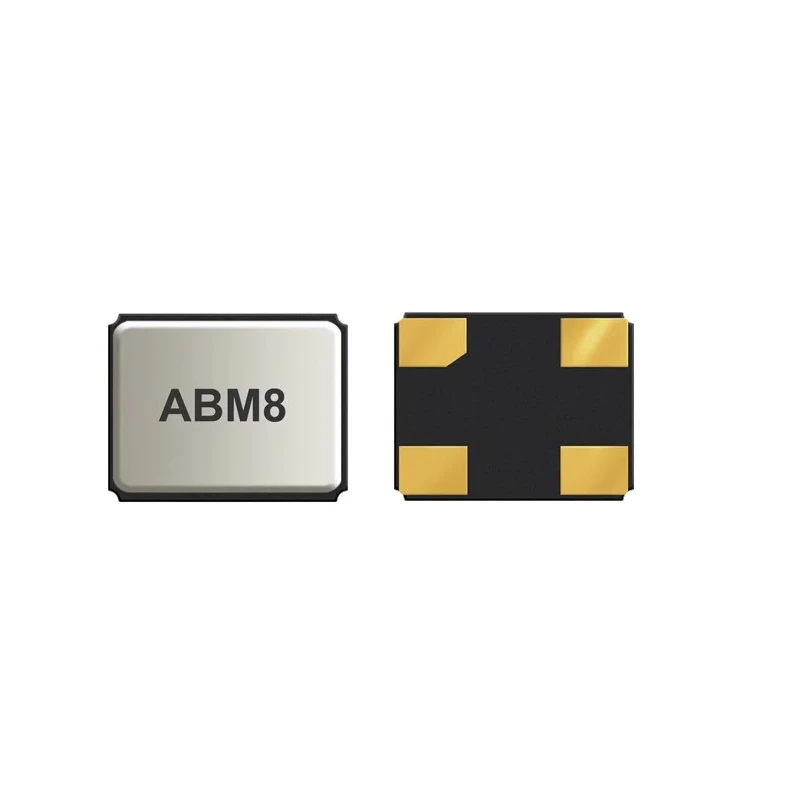

Abracon 12 MHz Crystal Unit Surface Mount 4-Pin 3.2 mm x 2.5 mm x 0.8 mm ±10 ppm ABM8-12.000MHz-12-B1U-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.8mm |
| Length | 3.2mm |
| Model | ABM8-12.000MHz-12-B1U-T |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8 |
| Maximum Operating Temperature | 70°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 12MHz |
| Load Capacitance | 12pF |
| Series Resistance | 120Ω |
Key Features
- Standard frequency of 12 MHz with ±10 ppm tolerance ensures precision performance.
- Surface mount package with a low profile height of 0.8 mm suits thin equipment.
- Load capacitance of 12 pF optimized for reliable frequency control.
- Operating temperature range from -20°C to 70°C supports diverse environments.
- Series resistance of 120 Ω enables stable operation in electronic circuits.
- RoHS compliant for environmentally safe manufacturing and use.
- Packaged in tape and reel format for automated PCB assembly.
Product Description
Abracon ABM8-12.000MHz-12-B1U-T is a precision 12 MHz Crystal Unit designed for surface mount technology applications. It features a 4-pin, low profile package with a thickness of 0.8 mm, a length of 3.2 mm, and a width of 2.5 mm, making it ideal for integration into compact electronic devices.
The crystal unit provides a frequency tolerance and stability of ±10 ppm, ensuring consistent oscillation frequency critical for communication equipment, modems, wireless applications, and test equipment. Its load capacitance is specified at 12 pF, while the series resistance is rated at 120 Ω, which supports its reliable frequency control in various circuitry environments.
Operating effectively within a temperature range of -20°C to 70°C, this unit offers durability and performance stability across a broad range of industrial and commercial conditions. The unit comes RoHS compliant, emphasizing its manufacture in accordance with environmental and quality standards.
Packaged in tape and reel format, the product is optimized for automated assembly lines, facilitating efficient PCB mounting and reducing handling errors. This crystal unit series ABM8 is known for its seam-sealed package, assuring high reliability and longevity.
Standard frequency: 12 MHz with ±10 ppm tolerance. Compact surface mount design with 4 pins and low profile height. Load capacitance: 12 pF supporting accurate frequency output. Operating temperature: -20°C to 70°C for broad application suitability.
Series resistance: 120 Ω for stable circuit operation. RoHS compliant for environmental and safety standards. Compatible with high-density applications including modems and wireless devices. Reliable tape and reel packaging for automated PCB assembly.
This Abracon crystal unit is suitable for use in high precision industrial, communication, and laboratory electronics. The ABM8 series delivers dependable frequency generation essential for modern electronic systems.
Browse the Electronics Components category for more precision Crystal Units and related components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 12 MHz with a tolerance of ±10 ppm, ensuring precision performance.
This model has a length of 3.2 mm, a width of 2.5 mm, and a height of 0.8 mm, making it suitable for compact applications.
The load capacitance is specified at 12 pF, which is optimized for reliable frequency control in electronic circuits.
The series resistance is rated at 120 Ω, supporting stable operation in electronic circuits.
It operates effectively within a temperature range of -20°C to 70°C, suitable for various industrial and commercial applications.
The unit is packaged in tape and reel format, which is optimized for automated PCB assembly, facilitating efficient mounting.
This model features a surface mount design, making it ideal for integration into compact electronic devices.
Yes, it is RoHS compliant, indicating it meets environmental and safety standards for manufacturing and use.
This crystal unit is suitable for high precision applications in industrial, communication, and laboratory electronics.
The crystal unit has 4 pins, which allows for easy integration into electronic circuits.
It belongs to the ABM8 series, known for its precision and reliability in frequency generation.
The ±10 ppm tolerance indicates the frequency stability of the crystal unit, crucial for maintaining consistent oscillation in electronic applications.
