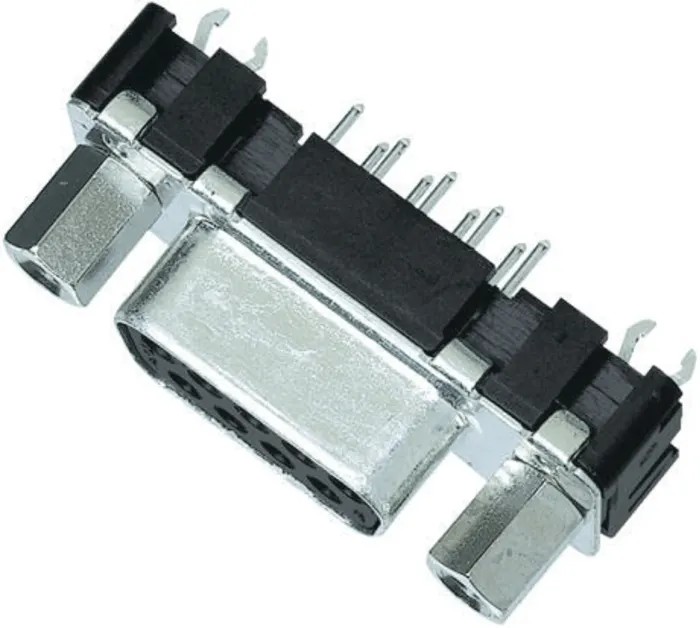

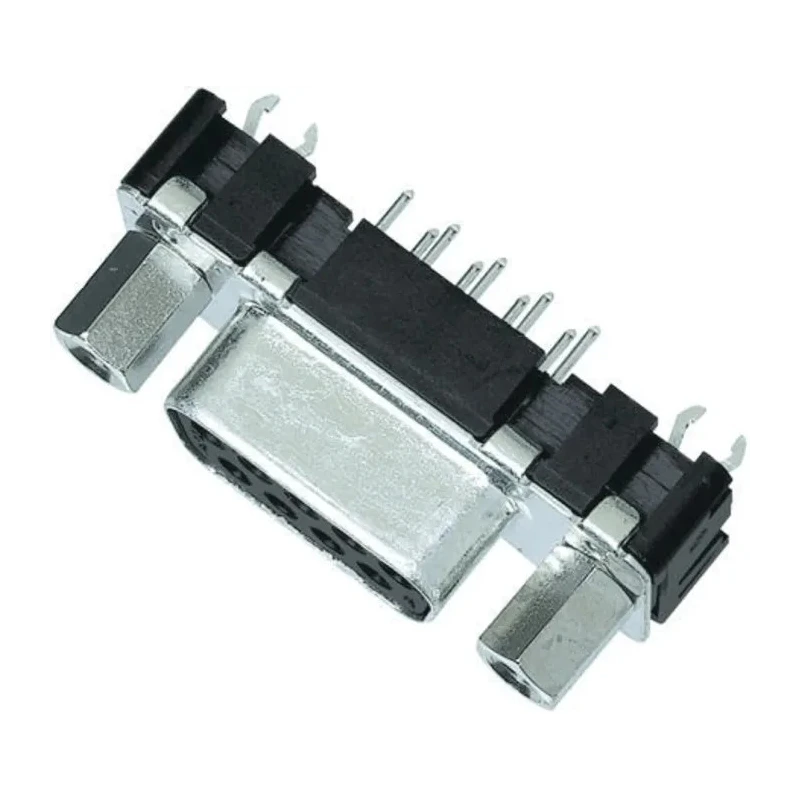

HARTING 15 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Threaded Insert Female 09662516513
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 7.5A |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Mounting Hardware | 4 to 40 UNC Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
Key Features
- Features 15 contact points for stable signal transmission.
- Constructed with a steel housing for durability and strength.
- Gold-plated copper alloy contacts ensure excellent conductivity and resistance to corrosion.
- Supports a current rating of 7.5A suitable for various electronic applications.
- Includes 4 to 40 UNC threaded insert mounting hardware for secure attachment.
- Designed for through-hole mounting with solder termination for reliable soldering quality.
- Operates safely between temperatures of -55°C to 125°C.
- Maintains a precise pitch of 2.74 mm for compatibility with standard D-Sub socket layouts.
Product Description
HARTING 09662516513 is a specialized 15 Way Straight D-Sub Connector designed with a 2.74 mm pitch, enabling precise and secure connections in electronic assemblies.
Manufactured using robust steel for the housing and copper alloy contacts with gold plating, this connector offers long-term durability and excellent electrical conductivity. It is tailored for through-hole mounting technology and employs solder termination type, making it ideal for PCB installations requiring strong mechanical and electrical bond.
The use of 4 to 40 UNC threaded inserts ensures the connector can be firmly fastened into assemblies, preventing mechanical loosening during operation. Its contact gender is female, aligning with standardized D-Sub Connector configurations.
Operating temperature range from -55°C to 125°C makes it suitable for diverse industrial and commercial electronic environments where temperature fluctuations are expected. This connector supports a 7.5A current rating, making it reliable for moderate power electronic circuits, instrumentation, and communications equipment.
Features 15 contact points for reliable signal integrity. Steel housing provides mechanical protection and longevity. Gold-plated copper alloy contacts optimize connectivity and corrosion resistance. Through-hole mount type for robust PCB integration.
Solder termination ensures firm electrical connections. Mounting hardware includes 4 to 40 UNC threaded inserts for secure assembly. Wide operating temperature range from -55°C to 125°C for versatility. Standard 2.74 mm pitch fits common D-Sub configurations.
Female connector gender matches D-Sub standards. This component is well suited for use in industrial electronics, manufacturing equipment, communication devices, and other applications requiring stable multi-contact connectors.
Discover more components like this within our Electronics & Electricals category on EnvMart for your precision connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 7.5A, making it suitable for various electronic applications.
It features a precise pitch of 2.74 mm, ensuring compatibility with standard D-Sub socket layouts.
The housing is made of steel for durability, while the contacts are constructed from gold-plated copper alloy to optimize conductivity and corrosion resistance.
It operates safely between temperatures of -55°C and 125°C, suitable for diverse industrial and commercial environments.
This unit is designed for through-hole mounting and employs solder termination for reliable connections.
It includes 4 to 40 UNC threaded inserts for secure attachment during installation.
This connector features 15 contact points, ensuring stable signal transmission.
The connector has a female contact gender, aligning with standardized D-Sub configurations.
The termination type is solder, which ensures a firm electrical connection during installation.
The connector is manufactured in India.
It is well suited for use in industrial electronics, manufacturing equipment, communication devices, and other applications requiring stable multi-contact connectors.
This model has a straight orientation, which is typical for many D-Sub connectors.
